C-Arms such as the GE OEC Elite CFD Super C and the Philips Zenition 70 are highly sought-after C-arms that offer a variety of unique features. C-arms such as these two can be found in numerous medical facilities ranging from hospital ICU units, emergency rooms, medical clinics, and surgical centers.
C-arm’s are very complex medical devices and understanding how C-arms work, how to acquiring proper training, and knowing what essential features to look for when purchasing a C-arm might help you make a decision on your facilities next big purchase.
WHAT IS A C-ARM?
C-Arm’s are an advanced medical imaging device found in various medical fields, including orthopedics, complex surgical procedures, pain management (anesthetics), and emergency interventions. Their fluoroscopy technology enables them to produce high-resolution real-time X-ray images, allowing surgeons to closely monitor the progress of procedures and make informed decisions as necessary.
GENERAL COMPARISON BETWEEN
GE OEC ELITE CFD AND PHILIPS ZENITION 70
| Specifications | GE OEC Elite CFD 31 cm Super C | Philips Zenition 70 |
|---|---|---|
| Dimensions | ||
| Integrated Laser | Yes | Yes |
| Height (C-arm) | 70.5" (179 cm) | 70" (177 cm) |
| Width (C-arm) | 33" (83 cm) | 32" (81 cm) |
| Length (C-arm) | 80" (203 cm) | 81" (205 cm) |
| Weight (C-arm) | 635 lb (288 kg) | 740 lb (335 kg) |
| C-Arm | ||
| C-arm Free Space | 31.25" (79.4 cm) | 30.4" (77 cm) |
| Arc Depth | 33" (83.8 cm) | 29" (73 cm) |
| Orbital Rotation | 145° | 140° |
| Lateral Rotation | 360° | 400° |
| Wig/Wag | 20° | 20° |
| Horizontal Travel | 8" (23.3 cm) | 7.9" (20 cm) |
| Vertical Travel | 18.1" (46 cm) | 19.29" (49 cm) |
| X-ray | ||
| X-Ray Tube | Rotating anode X-ray tube | Rotating anode X-ray tube |
| Nominal Focal Spots | 0.3 and 0.6 mm | 0.3 and 0.6 mm |
| Detector | ||
| Type | CMOS Flat Detector | Flat Detector |
| Matrix | 1548 x 1524 | 1560 x 1424 |
| Pixel Pitch | 198 μm | 184 μm |
| Monitor | ||
| Workstation Video Monitor | 27" LCD TFT Color Touchscreen Display | Two 19" High Brightness LCD Color (Left monitor is touchscreen) |
| TechView Monitor | 10.4" Display 800x600 Resolution | Dimensions N/A |
| Image Processing | ||
| SID (Source to Image Distance) | 39.4" (100 cm) | 39.1" (99 cm) |
| PC Image Storage | 50,000 Images | 140,000 Images |
| USB support | USB export with DICOM viewer | 2 USB 2.0 and 1 High speed USB 3.0 port & DICOM viewer |
| Image processing bits | 16 bit: CFD bit: image intensifier | FD subsystem: 16 bits, system image processing: 14 bits |

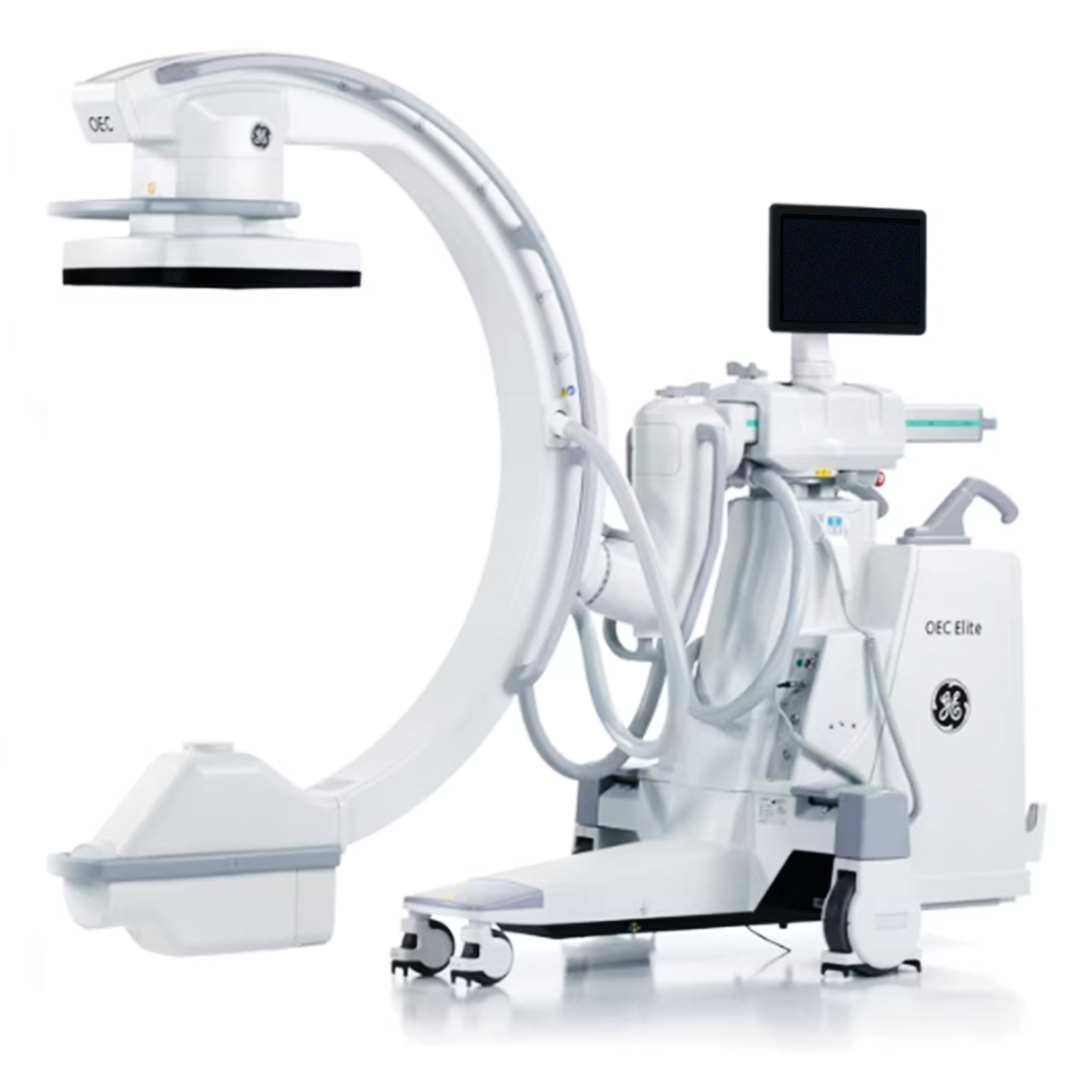

INTRODUCTION TO THE GE OEC ELITE CFD SUPER C
The GE OEC Elite CFD Super C is a mobile surgical imaging system that delivers high-quality images at low doses. It features a CFD CMOS flat panel detector, a 4K display, Live Zoom and enhanced Noise Reduction features, and preset profiles for a variety of procedures. The system also has a touch-screen user interface, a wireless footswitch, and a motorized arm.
The OEC Elite CFD Super C is a versatile and powerful system that can be used for a wide range of procedures, including vascular, orthopedics, gastrointestinal, endoscopic, urologic, neurologic, critical care, pain management, and emergency procedures. It is ideal for hospitals, clinics, and other healthcare facilities that need a high-quality imaging system that is easy to use and provides a smooth workflow.
IS MANAGING RADIATION EXPOSURE A CONCERN WITH THE GE OEC ELITE CFD AND THE PHILIPS ZENITION 70?
A common question in the realm of C-arms revolves around the management of radiation dose levels. C-arms utilize X-ray technology for imaging, which raises concerns about patient and operator exposure to radiation. The importance lies in the C-arm’s built-in dose control mechanisms, which enable healthcare providers to regulate and minimize radiation exposure during procedures. These features often include dose-monitoring displays, adjustable settings, and dose-reduction algorithms. Understanding how to optimize these controls is essential for ensuring the safety of both patients and medical staff, making them a critical component of responsible C-arm operations in healthcare settings.
INTRODUCTION TO THE PHILIPS ZENITION 70
The Philips Zenition 70 is a well-balanced C- Arm that is easy to maneuver during fracture surgeries. It can be moved quickly and easily to get the desired imaging projections, even when making frequent changes. The arm is also stable and does not move out of position easily, even when not fixed in place. This makes it ideal for use in procedures where precise imaging is critical. The C-arm is also responsive to the wireless footswitch so that images can be captured quickly and accurately.
In addition to these features, the Zenition 70 also features advanced image processing algorithms, radiation dose reduction, a wireless footswitch, a large working space, and versatile applications.
The advanced image processing algorithms help to improve image clarity and contrast, which is important for procedures where the images need to be as clear as possible. The radiation dose reduction features help to reduce radiation exposure to the patient, which is important for procedures where radiation exposure is a concern. The wireless footswitch allows the operator to control the system hands-free, which is important for procedures where the operator needs to be free to move around. The large working space makes it ideal for procedures that require a lot of movement. The versatile applications mean that it can be used for a wide variety of procedures.
REFURBISHED GE OEC ELITE CFD SUPER C AND PHILIPS ZENITION70 C-ARMS
Soma Tech Intl offers the GE OEC Elite CFD Super C and the Philips Zenition 70 up to 50% below OEM prices along with the same service and warranty as new ones. Soma Tech supplies medical equipment from top manufacturers. Furthermore, if you would like to request either of the two featured c-arms, you can contact us at 1-800-438-7662 or email us at [email protected]. One of our knowledgeable sales representatives can assist you with any further inquiries you may have.
FINAL THOUGHTS
Medical emergencies can occur in any corner of the hospital, whether it’s the emergency department or the recovery room. As a healthcare professional, you stand at the forefront of medical care, relying on cutting-edge medical equipment. When it comes to C-arms, the choice between the GE OEC Elite CFD Super C and the Philips Zenition 70 depends on the specific needs of your medical facility.
Have you had experience working with C-arms before? Have you ever used the GE OEC Elite CFD Super C or the Philips Zenition 70? Or perhaps you’ve utilized a different C-arm model, such as the GE OEC 9900 Elite or the Philips Veradius. Are you more familiar with another brand? Are there specific features that you prioritize when selecting the ideal C-arm?
