C-Arm Comparison: GE OEC Elite CFD Super C vs Philips Zenition 70

September 27, 2023

What is a C-Arm?
GE OEC Elite CFD Super C and Philips Zenition 70 Comparison
Introduction to the GE OEC Elite CFD Super C
Is Managing Radiation Exposure a Concern with the GE OEC Elite CFD Super C and the Philips Zenition 70?
Introduction to the Philips Zenition 70
Refurbished GE OEC Elite CFD Super C and Philips Zenition 70 C-Arms
Final Thoughts

C-arms such as the GE OEC Elite CFD Super C and the Philips Zenition 70 are highly sought-after C-arms that offer a variety of unique features. C-arms such as these two can be found in numerous medical facilities, including hospital ICU units, emergency rooms, medical clinics, and surgical centers.

C-arms are very complex medical devices. Understanding how C-arms work, how to acquire proper training, and what essential features to look for when purchasing a C-arm might help you decide on your facility’s next big purchase.

WHAT IS A C-ARM?

C-Arm’s are an advanced medical imaging device found in various medical fields, including orthopedics, complex surgical procedures, pain management (anesthetics), and emergency interventions. Their fluoroscopy technology enables them to produce high-resolution real-time X-ray images, allowing surgeons to closely monitor the progress of procedures and make informed decisions as necessary.

GENERAL COMPARISON BETWEEN
GE OEC ELITE CFD AND PHILIPS ZENITION 70

Specifications	GE OEC Elite CFD 31 cm Super C	Philips Zenition 70
Dimensions
Integrated Laser	Yes	Yes
Height (C-arm)	70.5" (179 cm)	70" (177 cm)
Width (C-arm)	33" (83 cm)	32" (81 cm)
Length (C-arm)	80" (203 cm)	81" (205 cm)
Weight (C-arm)	635 lb (288 kg)	740 lb (335 kg)
C-Arm
C-arm Free Space	31.25" (79.4 cm)	30.4" (77 cm)
Arc Depth	33" (83.8 cm)	29" (73 cm)
Orbital Rotation	145°	140°
Lateral Rotation	360°	400°
Wig/Wag	20°	20°
Horizontal Travel	8" (23.3 cm)	7.9" (20 cm)
Vertical Travel	18.1" (46 cm)	19.29" (49 cm)
X-ray
X-Ray Tube	Rotating anode X-ray tube	Rotating anode X-ray tube
Nominal Focal Spots	0.3 and 0.6 mm	0.3 and 0.6 mm
Detector
Type	CMOS Flat Detector	Flat Detector
Matrix	1548 x 1524	1560 x 1424
Pixel Pitch	198 μm	184 μm
Monitor
Workstation Video Monitor	27" LCD TFT Color Touchscreen Display	Two 19" High Brightness LCD Color (Left monitor is touchscreen)
TechView Monitor	10.4" Display 800x600 Resolution	Dimensions N/A
Image Processing
SID (Source to Image Distance)	39.4" (100 cm)	39.1" (99 cm)
PC Image Storage	50,000 Images	140,000 Images
USB support	USB export with DICOM viewer	2 USB 2.0 and 1 High speed USB 3.0 port & DICOM viewer
Image processing bits	16 bit: CFD bit: image intensifier	FD subsystem: 16 bits, system image processing: 14 bits

INTRODUCTION TO THE GE OEC ELITE CFD SUPER C

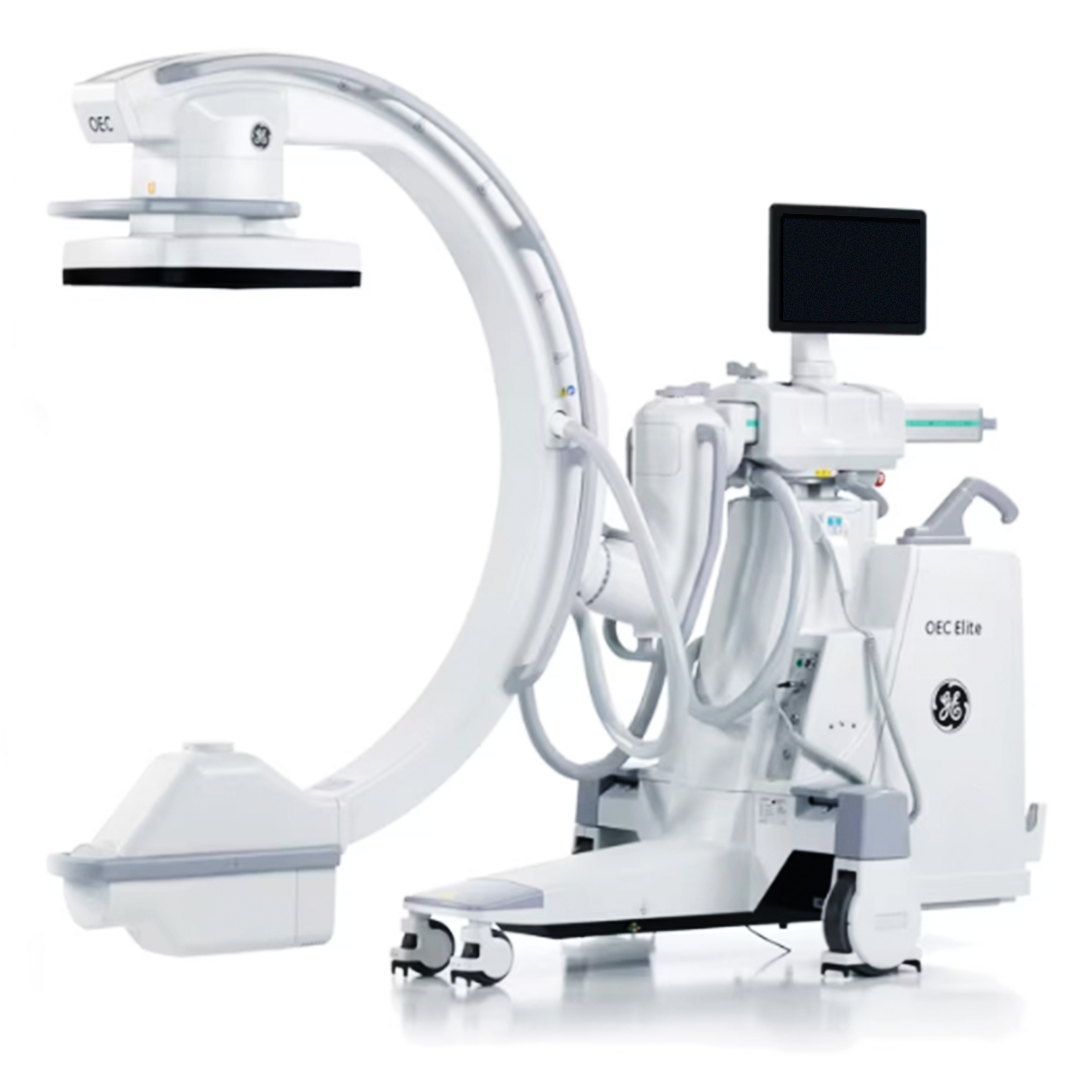

The GE OEC Elite CFD Super C is a mobile surgical imaging system that delivers high-quality images at low doses. It features a CFD CMOS flat panel detector, a 4K display, Live Zoom and enhanced Noise Reduction features, and preset profiles for a variety of procedures. The system also has a touch-screen user interface, a wireless footswitch, and a motorized arm.

The OEC Elite CFD Super C is a versatile and powerful system that can be used for a wide range of procedures, including vascular, orthopedics, gastrointestinal, endoscopic, urologic, neurologic, critical care, pain management, and emergency procedures. It is ideal for hospitals, clinics, and other healthcare facilities that need a high-quality imaging system that is easy to use and provides a smooth workflow.

IS MANAGING RADIATION EXPOSURE A CONCERN WITH THE GE OEC ELITE CFD AND THE PHILIPS ZENITION 70?

A common question in the realm of C-arms revolves around the management of radiation dose levels. C-arms utilize X-ray technology for imaging, which raises concerns about patient and operator exposure to radiation. The importance lies in the C-arm’s built-in dose control mechanisms, which enable healthcare providers to regulate and minimize radiation exposure during procedures. These features often include dose-monitoring displays, adjustable settings, and dose-reduction algorithms. Understanding how to optimize these controls is essential for ensuring the safety of both patients and medical staff, making them a critical component of responsible C-arm operations in healthcare settings.

REFURBISHED GE OEC ELITE CFD SUPER C AND PHILIPS ZENITION70 C-ARMS

Soma Tech Intl offers the GE OEC Elite CFD Super C and the Philips Zenition 70 up to 50% below OEM prices along with the same service and warranty as new ones. Soma Tech supplies medical equipment from top manufacturers. Furthermore, if you would like to request either of the two featured c-arms, you can contact us at 1-800-438-7662 or email us at [email protected]. One of our knowledgeable sales representatives can assist you with any further inquiries you may have.

FINAL THOUGHTS

Medical emergencies can occur in any corner of the hospital, whether it’s the emergency department or the recovery room. As a healthcare professional, you stand at the forefront of medical care, relying on cutting-edge medical equipment. When it comes to C-arms, the choice between the GE OEC Elite CFD Super C and the Philips Zenition 70 depends on the specific needs of your medical facility.

Have you had experience working with C-arms before? Have you ever used the GE OEC Elite CFD Super C or the Philips Zenition 70? Or perhaps you’ve utilized a different C-arm model, such as the GE OEC 9900 Elite or the Philips Veradius. Are you more familiar with another brand? Are there specific features that you prioritize when selecting the ideal C-arm?

Please share your insights in the comments below!
