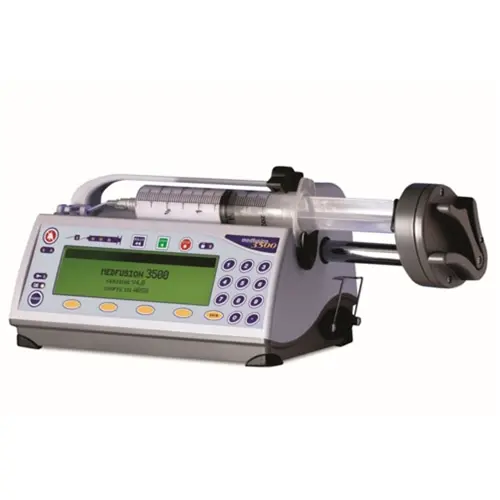

Medfusion 3500 Infusion Pump

Medfusion 3500 Infusion Pump Features

• Easy to use
• MRI Compatible
• Up to 10 hours internal battery capacity
• Accepts all syringe sizes 1cc – 60cc
• Mounts easily to an IV pole, an infant’s isolet or radiant warmer and rotation capabilities

Medfusion 3500 Specifications

Dimensions

• Width: 10.5″ (27cm)
• Height: 5.1″ (13cm)
• Depth: 5.5″ (14cm)
• Weight: 3.8 lbs (Pump only); 1.7 kg

Accuracy

• Nominal ±2% excluding syringe variations

Flow Rate Range

• Dependent upon syringe size 0.01 ml/hr to 1130 ml/ hr

Delivery Modes

• ml/ hr
• Body Weight
• Mass
• Volume Over Time
• Custom Dilution
• Intermittent

Delivery Options

• 13 options include Loading Dose, Bolus Dose, Standby, Volume Limit and KVO Rate

Power Sources

• 100 to 240 VAC, 50/60 Hz, 30VA
• Internal Rechargeable Battery
• Optional External DC Input 6 to 14 VDC, 7 Watts
• Safety Class II – Type CF

Internal Battery Capacity

• At 25° C – 10 hours at 5.0 ml/hr with 60 ml syringe with fully charged battery

User-Defined Deliver Libraries

• Four libraries with 16 profiles per library
• One library is “E-Plates” for optional rapid setup

MRI Tested

• May be used in MRI rooms with static magnetic fields up to 150 gauss
