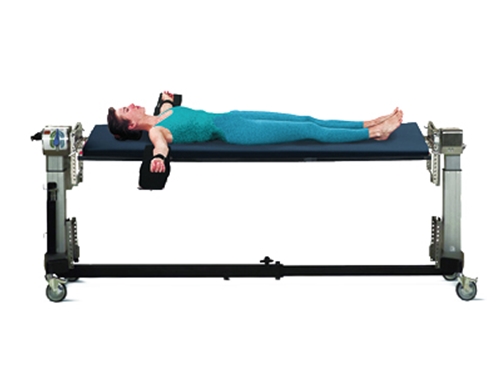

OSI Spinal Table – Mizuho 5083

Mizuho OSI Spinal Table 5803 With Imaging Top Features

The Mizuho OSI Spinal Table 5803 with Imaging Top has a its carbon fiber construction provides complete radiolucency and allows for unrestricted C-arm integration when mounted on the Advanced Control Modular Base. It easily supports a patient in the supine, lateral or prone position.

• Complete radiolucency – carbon fiber table top with Tempur-Pedic® Medical pad
• Unrestricted C-arm and O-arm® integration
• Application flexibility – full body support allows flexible procedural capability
• Lateral Tilt (25 degrees) in both directions
• Hand Pendant of the Advanced Control Base on which the Radiolucent Imaging Top mounts on controls Height, Lateral Tilt(roll) and Trendelenburg/Reverse Trendelenburg
• Complete pelvic surgery positioning* – prone, supine and lateral w/traction if required
• Utilize Wilson Plus™ Radiolucent Wilson Frame* for 360-degree radiolucency
• 360-degree patient rotation when used in conjunction with the Spinal Surgery Top

Mizuho OSI 5803 With Imaging Top Specifications

Physical Specifications

• Height Range with Table Top: 27 in – 48 in. (69cm. – 122 cm.) dependent on table system
• Modular Base Width: 32 in. (81 cm.)
• Modular Base Length: 102 in. (259 cm.)
• Length of Base Retracted: 64 in. (163 cm.)
• Trendelenburg /Rev Trendelenburg: 10 degrees
• Lateral Tilt (roll): 25 degrees
• Patient Weight Capacity: 500 lbs. (227 kg.) dependent on table system
• Table Top Length: 84 in. (213 cm.)
• Table Top Width: 21.5 in. (55 cm.)
