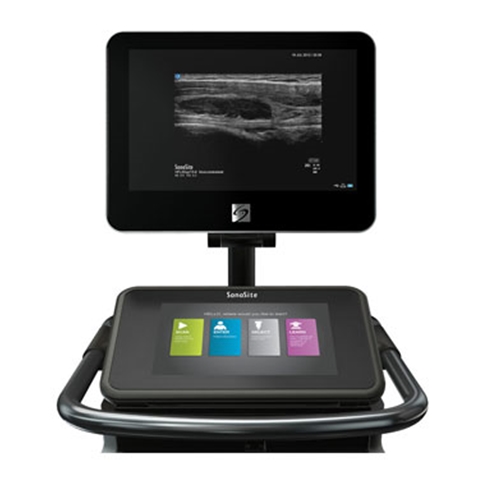

SonoSite X-Porte

SonoSite X-Porte Features

The SonoSite X-Porte was developed from the ground up to incorporate a breakthrough, proprietary beam-forming technology: XDI (Extreme Definition Imaging). This signal analysis algorithm shapes X-Porte’s ultrasound beam to pinpoint precision. The result? Artifact clutter is substantially reduced while contrast resolution is significantly enhanced.

  • Extreme Definition Imaging (XDI™)
  • Intuitive Touchscreen Interface
  • Real-time, Scan-along Learning
  • Unmatched Durability and Reliability

SonoSite X-Porte Specifications

System Specifications

  • Stand Dimensions: 26.4” L x 21.2” W
  • Stand Height (max): 64” (monitor up)
  • Stand Height (min): 42.2” (monitor down)
  • Height Adjustment: 9” travel
  • 12.1” Capacitive Touch Screen
  • Multi-touch gestures for system controls
  • Control Panel Tilt Adjustment: 0˚ to 110˚
  • Side to Side Turning: +/- 90 degrees from center
  • Monitor Tilt: 85 – 110˚ (5˚ tilting forward from vertical, 20˚ tilting back f rom vertical)
  • Casters: 5” Swivel, 4 Locking
  • System Boot up: < 20 secs
  • HD Monitor: 19” diagonally
  • Image Size: 800 x 600
  • Screen Size: 1280 x 800
  • Screen Resolution: 1680 x 1050 (16:10)
  • Architecture: All digital broadband
  • Dynamic Range: Up to 183 dB
  • Gray Scale: 256 shades
  • HIPAA Compliance: Comprehensive tool set

Imaging Modes

  • 2D, Broadband Imaging
  • Tissue Harmonic Imaging (P21xp, C60xp)
  • Pulse Inversion Harmonic Imaging
  • M-mode
  • Velocity Color Doppler
  • Color Power Doppler
  • Pulsed Wave Doppler
  • Pulsed Wave Tissue Doppler
  • Continuous Wave Doppler, ECG

Image Processing

  • Extreme Definition Imaging (XDI)
  • SonoAdapt Tissue Optimization
  • SonoHD2 Imaging Technology
  • Dual Imaging
  • Dual Color Imaging
  • SonoMB Multibeam Technology
  • AutoGain
  • AutoGain Brightness Adjust
  • Restore Default Gains
  • Dynamic Range
  • Duplex Imaging
  • 8x Zoom Capability
  • Post Processing: Dynamic Range, Zoom
  • 2D Image Optimization: Average and Difficult
  • Overall Gain, Near and Far Field Gain Control
  • Color and Doppler Flow Optimization (low, medium, high)
  • Color Variance Mode
  • 2D Reduced Imaging Sector

User Interface and Programmable Controls

  • Capacitive Touch Screen
  • Multi-touch gestures for system controls Configurable User Interface: Start Screen, More Controls, Programmable Keys, System Parameters Clinical Display Information
  • Programmable Keys (9): Functions: Show/Hide, End Exam, Reset Gain to
  • Default Values, Print, Save Image, Save Video Clip, AutoGain, Calcs, None

  • Configurable Start Screen: Start, Scanning, Transducer/Exam Selection, Patient Information
  • Virtual QWERTY Keyboard for annotation
  • User defined exam types (up to five exam types for each exam type/transducer combination). For example, you can define five different exam types for Abdomen on P21xp transducer and five exam types for Abdomen on the C60xp transducer.
  • Image Acquisition Keys: Save, Review, Report, Video Clip Store, Video Clip Edit, DVR
  • Labeling of saved images
  • Display formats for Duplex Imaging: 1/3 and 2/3, ½ and ½, 2/3 and 1/3, side by side and full-screen duplex
  • Doppler Controls: angle, steer, scale, baseline, sample volume, gain and volume


  • 2D: Distance – 8 measurements, Ellipse, Manual Trace Volume, Target Depth, Bladder Volume
  • Doppler: Velocity measurements, Pressure Gradient, Elapsed Time, Acceleration, Heart Rate, Resistive Index, Systolic/Diastolic Ratio, Measurements can be traced manually or automatically.
  • Automatic trace results (determined by exam type): Velocity Time Integral, Peak Velocity, Mean Pressure Gradient, Mean Velocity on Peak Trace, Press Gradient, Cardiac Output, Peak Systolic Velocity, Time Average Mean, Systolic/Diastolic Ratio, Pulsatility Index, End Diastolic Velocity, Acceleration Time, Resistive Index, Time Average Peak, Gate Depth, Heart Rate.
  • M-mode: All points guided workflow, distance and time measurements, Heart Rate
  • Editable results data sheets and reports
