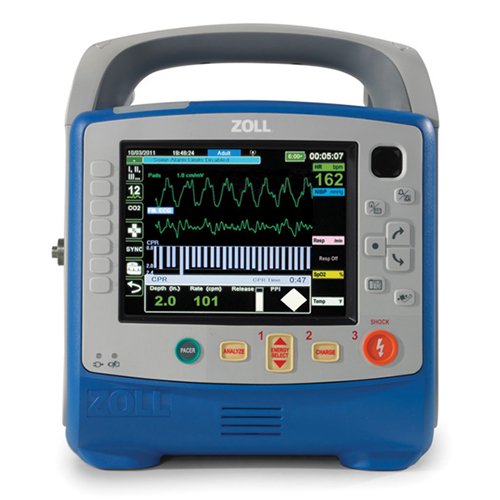

Zoll X Series

Zoll X Series Features

Weighing under 12 pounds, the Zoll X Series is full featured and designed to be effective for all patients, including neonates. Transporting a critically ill patient through the hospital requires a lightweight device with extensive monitoring capabilities. And that’s exactly what you get with the X Series®, plus defibrillation and real-time CPR feedback in one compact device.

  • Capnography
  • Pulse oximetry
  • Three invasive pressures
  • Two temperature channels
  • Non-invasive blood pressure

Zoll X Series Specifications

General

  • Weight: 11.7 lbs. (5.3 kg) with battery and paper
  • Dimensions: 8.9 in (22.6 cm) x 10.4 in (26.4 cm) x 7.9 in (20.1 cm)
  • Enclosure Protection
    • Solid Foreign Object: IEC 60529, IP5X
    • Water: IEC 60529, IPX5
  • Operating Conditions
    • Temperature: 0 to 50°C
    • Humidity: 15 to 95% RH (non-condensing)
  • Vibration: MIL-STD 810G, Method 514.6, 4.4.2 Procedure II EN ISO 9919 (per IEC 60068-2.64) EN 1789 for ambulance. RTCA/DO-160G (multiple helicopter frequencies)
  • Shock: IEC 60068-2-27, 100g, 6 ms half sine
  • Drop: EN 1789, 30-inch functional drop, IEC 60601-1, tested at 2 meters
  • Altitude: -170 m to 4572 m (-557 feet to 15,000 feet)

Monitor / Display

  • Size: 6.5 in (16.56 cm) diagonal
  • Input: 3-lead, 5-lead, or 12-lead patient cable, paddles, or multifunction electrodes
  • Type: Color LCD, 640 x 480 pixels, 800 MCD
  • Sweep Speed (user selectable): 25 mm/sec or 50 mm/se
  • Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V1-6
  • Frequency Response (user selectable)
    • 0.67 – 20 Hz Limited mode
    • 0.67 – 40 Hz Monitor mode
    • 0.25 – 40 Hz Filtered diagnostic mode
    • 0.05 – 150 Hz Diagnostic mode

Defibrillator

  • Waveform: Rectilinear Biphasic™
  • Energy Selections: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 joules
  • Energy Display: Display indicates selected and delivered energy
  • Charge Time: Less than 7 seconds with a new, fully charged battery
  • Charge Controls: Front panel and on apex paddle
  • Pads/Paddles: Hands-free pads and external adult and pediatric paddles. Adult paddles slide off to expose pediatric paddles.
  • Synchronized Mode: Synchronizes defibrillator pulse to patient’s R wave. “SYNC” message displayed on monitor and markers shown on both monitor and recorded ECG. Meets Clause 104 of AAMI DF80.
