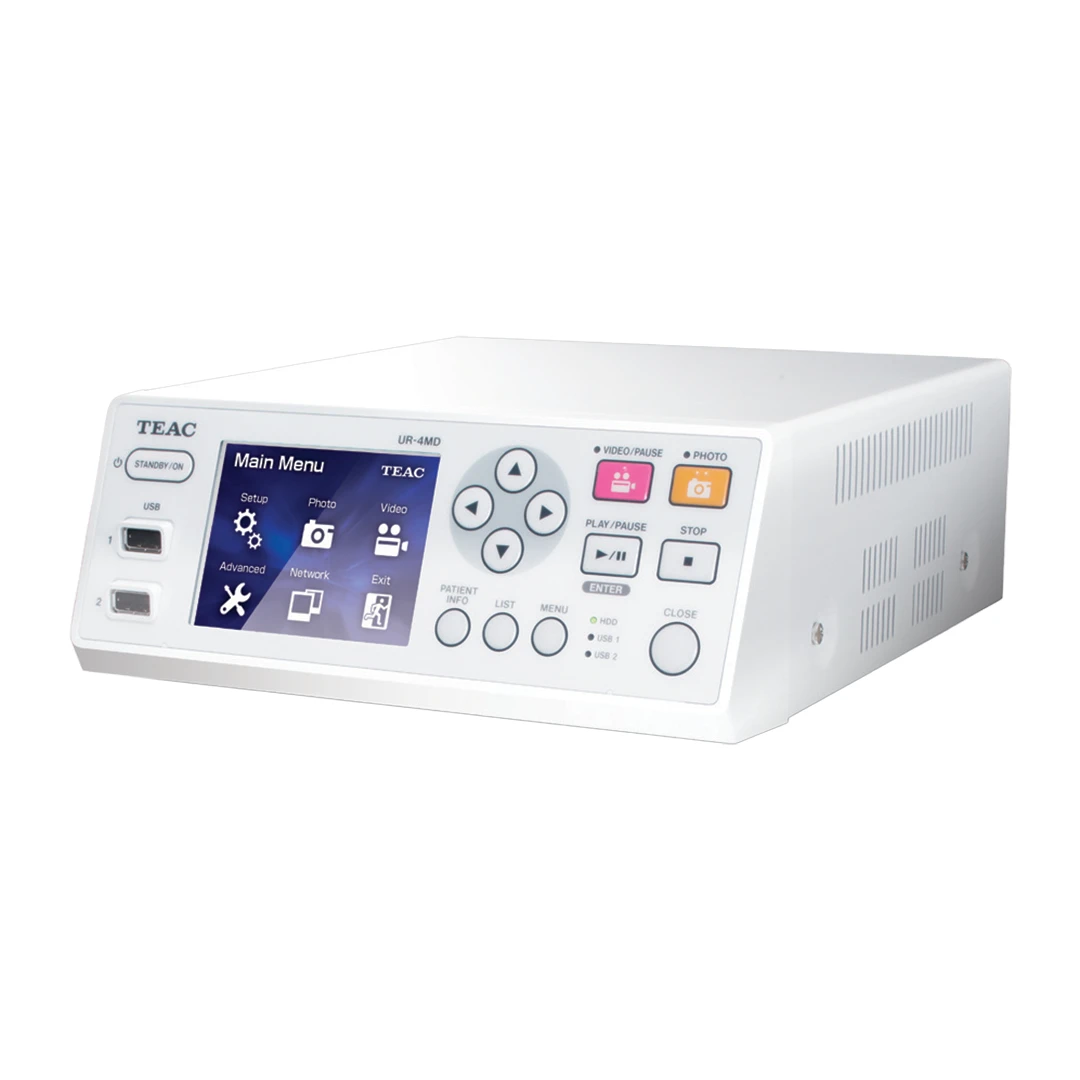

Teac Ur-4Md Digital Capture Device
Teac

TEAC UR-4MD

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

TEAC UR-4MD Features

The TEAC UR-4MD medical video recorder is a full HD digital capture device designed to record, store, and manage medical images and video from a wide variety of imaging modalities. Compatible with endoscopy, ultrasound, surgical microscopy, C-arms, and other medical imaging systems, the recorder offers simple setup through automatic video signal and resolution detection. An integrated 500 GB hard drive provides reliable recording and backup, while simultaneous recording to USB storage devices makes it easy to archive and transfer procedure data. The built-in LCD display and intuitive front panel controls allow clinicians to quickly capture still images and video without interrupting workflow. With network connectivity and support for multiple video formats, the UR-4MD provides a flexible solution for documentation, education, and clinical record management.

  • Full HD Video Recording: Captures high-definition video and still images with support for resolutions up to 1920 × 1080.
  • Simultaneous Multi-Device Recording: Records to the internal hard drive and external USB storage devices at the same time.
  • Automatic Video Detection: Auto-senses video inputs and resolutions to simplify setup with compatible medical imaging systems.
  • Multiple Connectivity Options: Supports SDI, DVI, S-Video, Composite video, USB, and Ethernet connections.
  • Built for Clinical Workflow: Features a front-panel LCD display, intuitive controls, network capability, and fail-safe recording functions for dependable operation.

Refurbished TEAC UR-4MD

Soma Tech Intl offers the TEAC UR-4MD digital capture device up to 50% below OEM prices, providing the same service and warranty as a new. This digital capture device undergoes both technical and cosmetic refurbishment to ensure reliable performance and a clean, professional appearance. During the refurbishment of the TEAC UR-4MD, our in-house biomedical engineers, who are highly trained and certified to work on digital capture devices, carefully inspect and test the system. If required, components are replaced to ensure the UR-4MD meets the original manufacturer’s engineering specifications.

Once the TEAC UR-4MD digital capture device is fully operational, it proceeds through a detailed cosmetic restoration process. The unit is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the UR-4MD both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the TEAC UR-4MD is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.

Soma Tech Intl is actively seeking to purchase TEAC UR-4MD digital capture devices. If your facility is interested in selling a UR-4MD or other TEAC digital capture devices, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned TEAC equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a TEAC UR-4MD digital capture device or other used medical equipment you would like to sell, send us a message.

TEAC UR-4MD Specifications

Dimensions

  • Height: 3.38 in (8.9 cm)
  • Width: 8.25 in (21.1 cm)
  • Depth: 9.25 in (23.5 cm)
  • Weight: 5.7 lb (2.6 kg)

Display

  • Type: LCD
  • Size: 3.5 in

Recordable Devices

  • USB Flash Drive
  • USB Hard Drive
  • Internal Hard Drive (500 GB)

Recording Format

  • Images: jpeg
  • Videos: MPEG-4 AVC/H.264

Input / Outputs

  • Input for Video
    • SDI (BNC) x1: High-Definition (50p, 59.94p, 60p)
    • DVI (Single Link) x1: High-Definition
    • S-Video x1: NTSC, PAL
    • Composite (BNC) x1: NTSC, PAL
  • Input for Audio
    • SDI (BNC) x1 *SDI video input terminal use in common.
    • Stereo mini jack x2: LINE, MIC
  • Output for Video
    • SDI (BNC) x1: High-Definition (50p, 59.94p, 60p)
    • DVI (Single Link) x1: High-Definition
    • S-Video x1: NTSC, PAL
    • Composite (BNC) x1: NTSC, PAL
    • SDI Thru x1
  • Output for Audio
    • SDI (BNC) x1 *SDI video output terminal use in common.
    • Stereo mini jack x1 LINE
  • Other Interfaces
    • RJ-45 (10BASE-T / 100BASE-TX /1000BASE-T) x1
    • USB2.0 Type A x3
      • 2 front connectors for Recordable Devices
      • 1 rear connector for Optional Accessories
    • USB2.0 Type B x1
      • 1 rear connector for accessing the internal
      • Hard Drive (on UR-4MD)
    • Stereo mini jack x3: For external trigger
