Stryker Physio-Control LUCAS 2

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Stryker Physio-Control LUCAS 2 Features

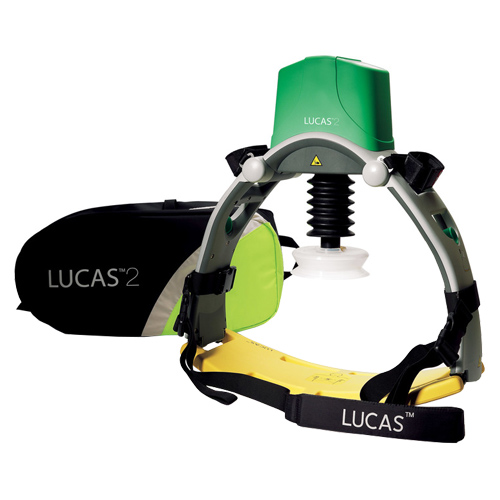

The Stryker Physio-Control Lucas 2 is a chest compression system that can be used in Sudden Cardiac arrest patients. The LUCAS 2 provides high-quality, consistent chest compression, increasing the patient’s circulation and chances of a successful outcome. The Compression system can perforate at a rate of 100 compressions per minute. The Stryker Physio-Control Lucas 2 is a lightweight system that comes in a backpack and can easily be applied to a patient. The Stryker compression system consists of an upper part that contains a pneumatic driven piston rod, to achieve the best compression and a backplate. The System does not require any electricity to run it is powered by breathing oxygen or air from a wall outlet.

  • The device maintains consistent chest compression over a long period of time.
  • Used to perform external cardiac compressions on adult patients who have circulatory arrest defined as the absence of spontaneous breathing and pulse and loss of consciousness.
  • The backplate gets positioned underneath the patient as a support for the external chest compressions.
  • The upper part contains the proprietary and rechargeable LUCAS battery and the compression mechanism with a disposable suction cup.
  • About 45 minutes battery runtime.

Stryker Physio-Control LUCAS 2 Specifications

Dimensions

  • Height: 22” (57 cm)
  • Width: 20.5” (52 cm)
  • Depth: 9.4” (24 cm)
  • Weight: 17.2 lbs (7.8 kg)

Patient Types

  • Adult patients who fit into the device; have a sternum height of 6.7 to 11.9 inches / 170 to 303 mm; a maximum chest width of 17.7 inches / 449 mm
  • The use of LUCAS is not restricted by patient weight.

Compressions

  • Compression Depth: 1.5 to 2.0 inches / 4 to 5 cm from the Start Position
  • Compression Frequency: 100 ± 5 compressions per minute
  • Compression Duty Cycle: 50 ± 5%
  • Compression Modes (operator selectable): 30:2 (30 compressions followed by a 3 seconds ventilation pause); Continuous compressions

Battery

  • Type: Rechargeable Lithium-Ion Polymer (LiPo)
  • Capacity: 3300 mAh (typical), 86 Wh
  • Battery Voltage (nominal): 25.9 V
  • Initial Battery Runtime (nominal patient): 45 minutes (typical)
  • Maximum Battery Charge Time: Less than 4 hours at room temperature (72ºF / 22ºC)
  • Required Interval for Replacement of the LUCAS Battery: Recommendation to replace the battery every 3 years or after 200 uses (of more than 10 minutes use each time)

Environmental

  • Operating Temperature: +32°F to +104°F / +0°C to +40°C
  • Storage Temperature: -4°F to +158°F / -20°C to +70°C
  • Relative Humidity: 5% to 98%, non-condensing
  • IP Classification (IEC60529): IP 43
  • Operating Input Voltage: 12-24 V DC
