Hemochron Jr Signature+

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Hemochron Jr Signature+ Features

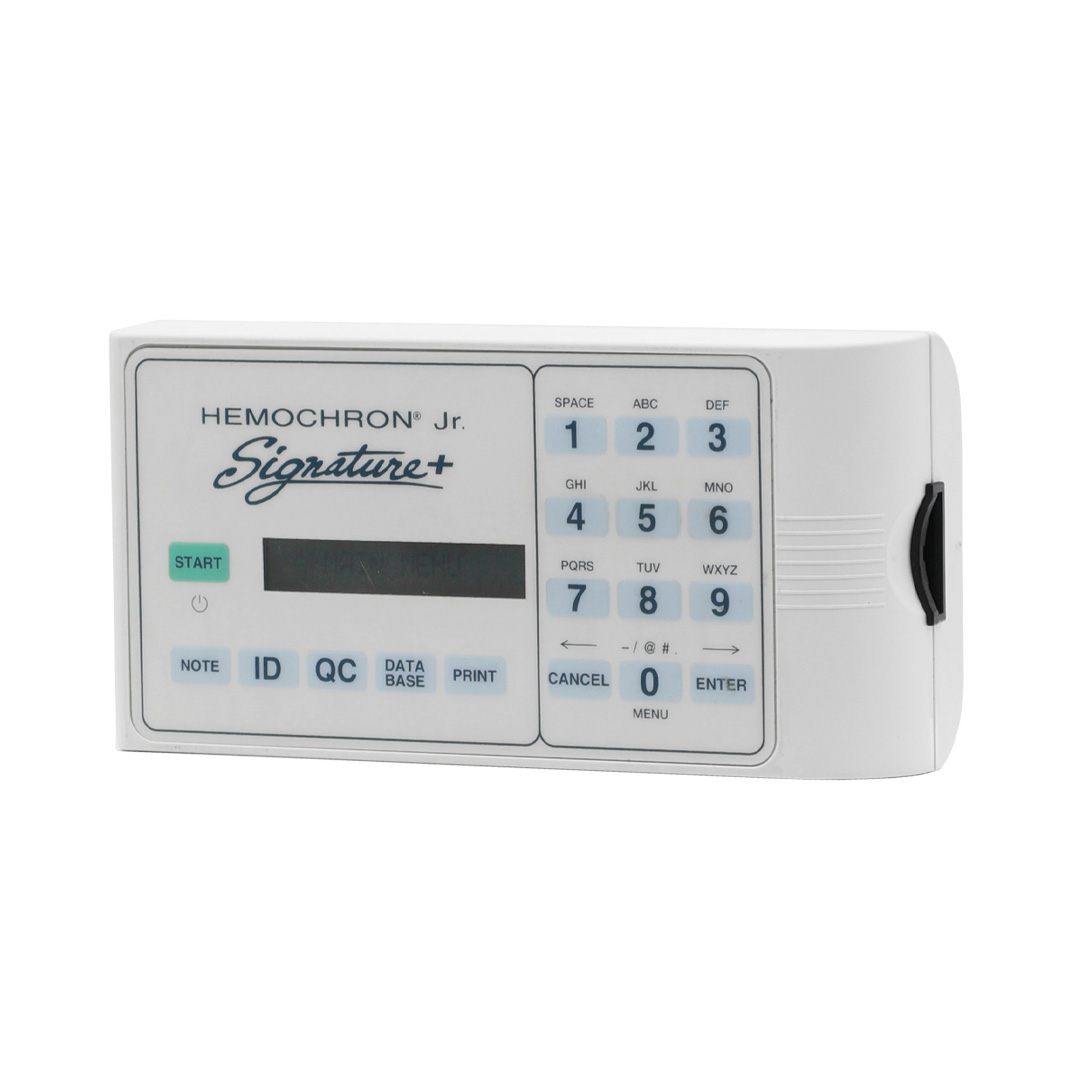

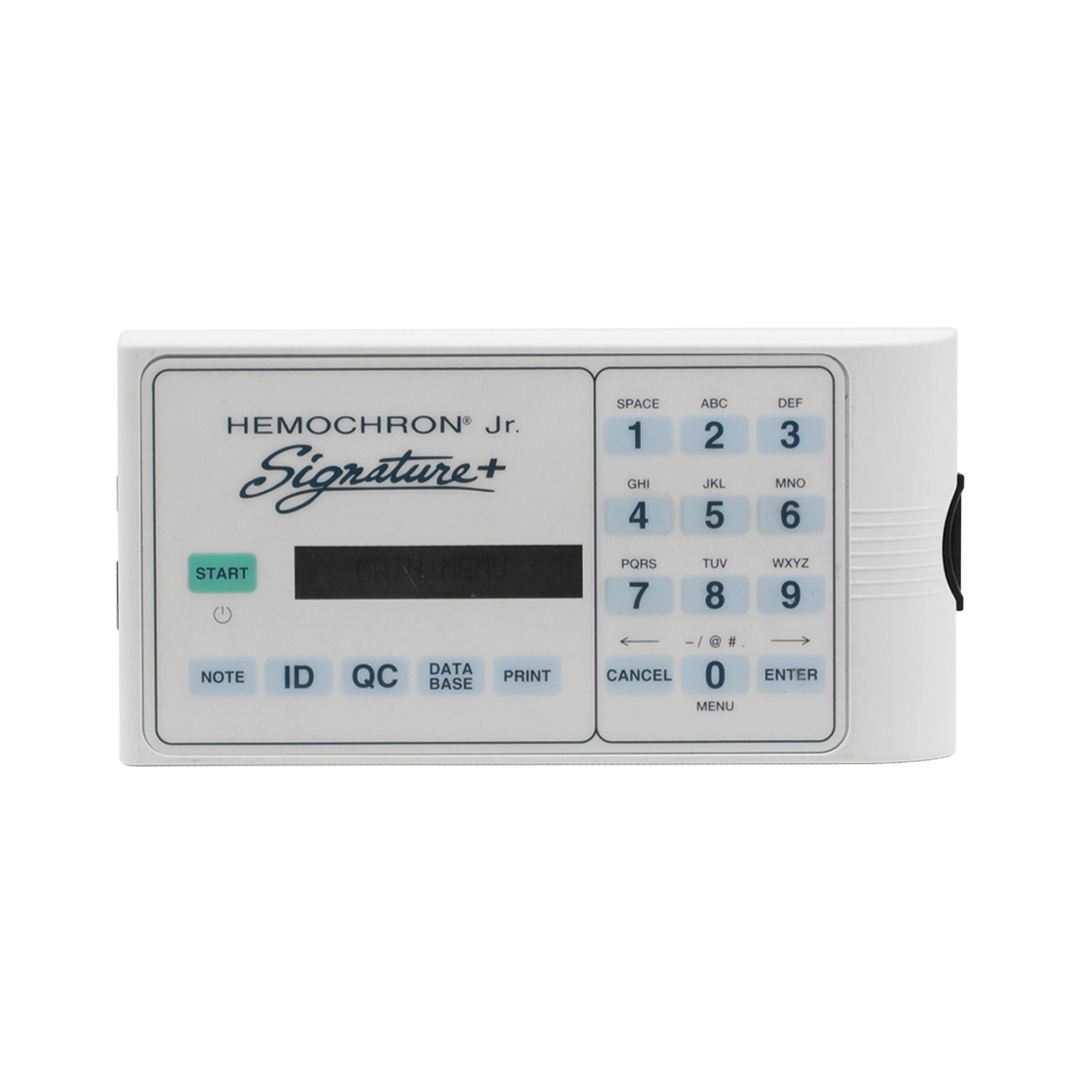

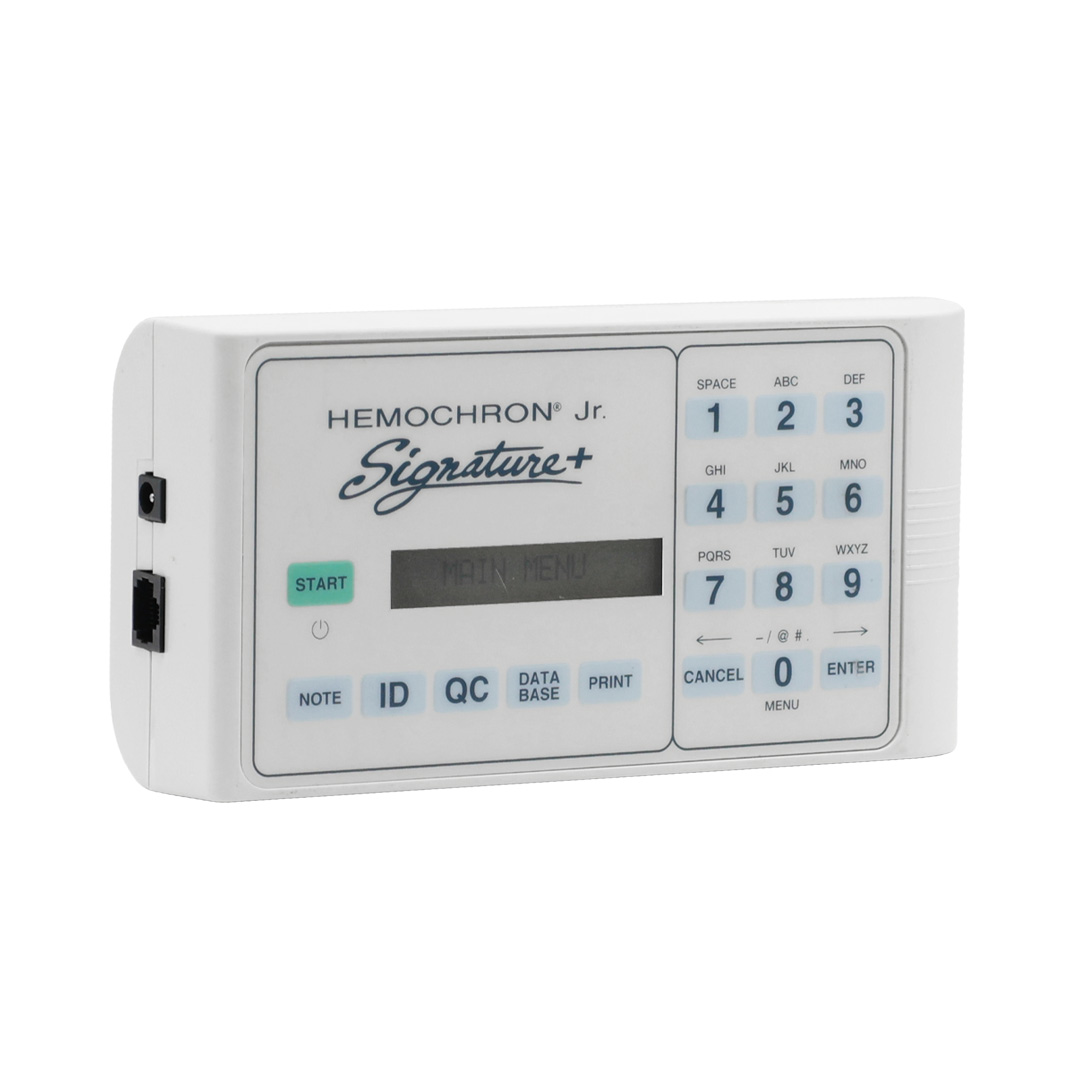

The HEMOCHRON Jr. Signature+ Whole Blood Microcoagulation System is a battery-operated, hand-held instrument that performs individual point-of-care coagulation tests on fresh or citrated whole blood. These tests include Activated Clotting Time (ACT+ and ACT-LR), Activated Partial Thromboplastin Time (APTT and APTT Citrate), and Prothrombin Time (PT and PT Citrate). The Hemochron Jr
system is intended to be used for testing blood.

  • The system is portable for bedside use
  • Fresh whole blood or citrated whole blood can be used (assay dependent)
  • Only one drop of blood is required
  • Results are available in minutes
  • Results are displayed appropriately as whole blood, plasma equivalent, Celite equivalent seconds, or INR
  • Test type is automatically read from the cuvette
  • Test results are automatically stamped with the date and time
  • Results from 400 patient tests and 400 QC tests can be stored
  • Stored results can be printed and/or downloaded to a personal computer
  • Stored results can be searched by Patient ID
  • Instrument self-checks are automatically performed
  • Electronic Quality Control (EQC) cuvettes are used to check instrument operation at two levels
  • A Temperature Verification cuvette can be additionally used to check test chamber temperature
  • The display is illuminated for viewing in low light
  • The user is alerted when the battery is low
  • An optional printer can be connected
  • The system can be customized using a personal computer and HEMOCHRON Configuration Manager software
  • User Notes can be entered to add additional information to the test results
  • Patient/QC test reports can be created using a personal computer and ITC data management software programs

Hemochron Jr Signature+ Specifications


  • Height: 2″ (5 cm)
  • Width: 7″ (19 cm)
  • Depth: 3.9″ (10cm)
  • Weight: 1.74 lbs (1.24 kg)


  • Test Precision: = 10% C.V.


  • Test Chamber: 1<?li>
  • Timing Range: 0 seconds to 1005 seconds
  • Incubation Temperature: 37°C± 1.0° C
  • Incubation Warm-Up Time 30 Seconds to 90 Seconds
  • Full-Charge Operating Time: 2 to 3 hours (minimum)
  • Battery life 500 recharges
  • Battery Life: Nickel Metal Hydride
  • Throughput (Full Charge): <?li>
    • 49 test cycles (at 150 sec per test)
    • 17 test cycles (> 500 sec per test)
  • Operating Environment: 15°C to 30°C

AC/DC Power Module)


  • Input:120 VAC, 60Hz, 35 VA
  • Output 9.0 VDC, 1.38 Amps Maximum


  • Input: 230VAC, 50 Hz, 30 VA
  • Output: 9.0 VDC, 1.15 Amps maximum


  • Input: 100 VAC, 50/60 Hz, 40 VA
  • Output: 9.0 VDC, 1.15 Amps maximum

Refurbished Hemochron Jr Signature+ Coagulation Analyzer

Soma Tech Intl offers Hemochron Jr Signature+ up to 50% below OEM prices with the same service and warranty as new. The Hemochron Jr Signature+ coagulation analyzer is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Hemochron Jr Signature+, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on coagulation analyzers. If necessary, parts are replaced to make sure that all aspects of the Hemochron Jr Signature+ are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Hemochron Jr Signature+ is working like new it undergoes a special cosmetic restoration process. The Hemochron Jr Signature+ is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Hemochron Jr Signature+ is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Hemochron Jr Signature+ contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Hemochron Jr Signature+. If you or your facility is looking to sell your Hemochron Jr Signature+ Coagulation Analyzer, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Hemochron Jr Signature+ to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!



Questions about our Coagulation Analyzers?

Soma Tech Intl offers a wide range of coagulation analyzers. If you have any questions about any of our analyzers or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your coagulation analyzers?  Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
