Steris Medivators DSD-201

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Steris Medivators DSD-201 Features

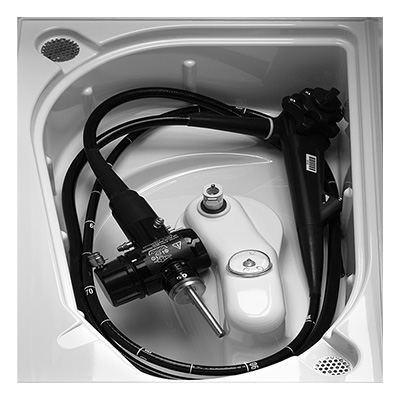

The automated endoscope reprocessor features two fully independent and asynchronous reprocessing basins for high-volume, quick endoscope turnaround. The Steris Medivators DSD-201 has user-programmable reprocessing cycles and an enhanced sensor package for continuous monitoring of all cycle parameters.

  • Fast cycle time for quick endoscope turnaround.
  • Two basins for simultaneous or independent cycles.
  • Cycle parameters continuously monitoredLeak test ensures endoscope protection throughout the cycle.
  • Automated alcohol flush and air dry.
  • Audible and visual alarms for reprocessing cycle deficiency.
  • Assures patient and operator safety.
  • Cycle customization meets specific reprocessing needs.





Steris Medivators DSD-201 Specifications

Dimensions

  • Chassis Dimensions (height x width x depth): 46”x36”x21” (117x91x53cm)
  • Height with lid open: 64 inches (162.5 cm)
  • Weight: 400lbs (181kg)

Operating Conditions

  • Altitude: <15,000 feet (4,572m)
  • Humidity: 20% to 80%, non-condensing
  • Temperature: 80°F ± 20° (27°C ± 10°)

Electrical Requirements

  • 230 VAC 50/60 Hz, 6A 1f
  • 120 VAC 60 Hz, 12A 1f

Water Requirements

  • Potable water from the building (cold water supply).
  • 35-40psi (2.4 – 2.75bar) at regulator.
  • Water temperature maximum: 110°F (43°C)

Capacities

  • Disinfectant reservoir: 15 liters
  • Basin: 11 liters
  • Alcohol and detergent reservoir: 800ml each

General

  • Power Cord: Hospital-grade 8 feet (2.4m)
  • Mains Supply Voltage Fluctuations: Not to exceed ±10% of the nominal voltage Installation Over Voltage Category: II
  • Classification: I, Ordinary Protection
  • Rinse Water Consumption: Approx. 10 gallons (39 liters) per cycle
  • Designed for Use: Indoor
  • Environmental Rating: Standard
  • Pollution Degree: 2
  • Mode of Operation: Continuous
  • Degree of Mobility: Stationary
  • Waste Drain: The reprocessor drain is 25 inches (60cm) above the floor. Because the reprocessor uses a gravity system there must be at least a 3-inch (25mm) drop from the reprocessor over 36 inches (30cm) for proper draining
  • Disinfectant Compatibilities: Contact your local distributor for compatible reprocessing chemicals
  • Internal Heater: Ambient temperature to 125°F (52°C)
