CardioQuip MCH-1000(m)
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
CardioQuip MCH-1000(m) Features

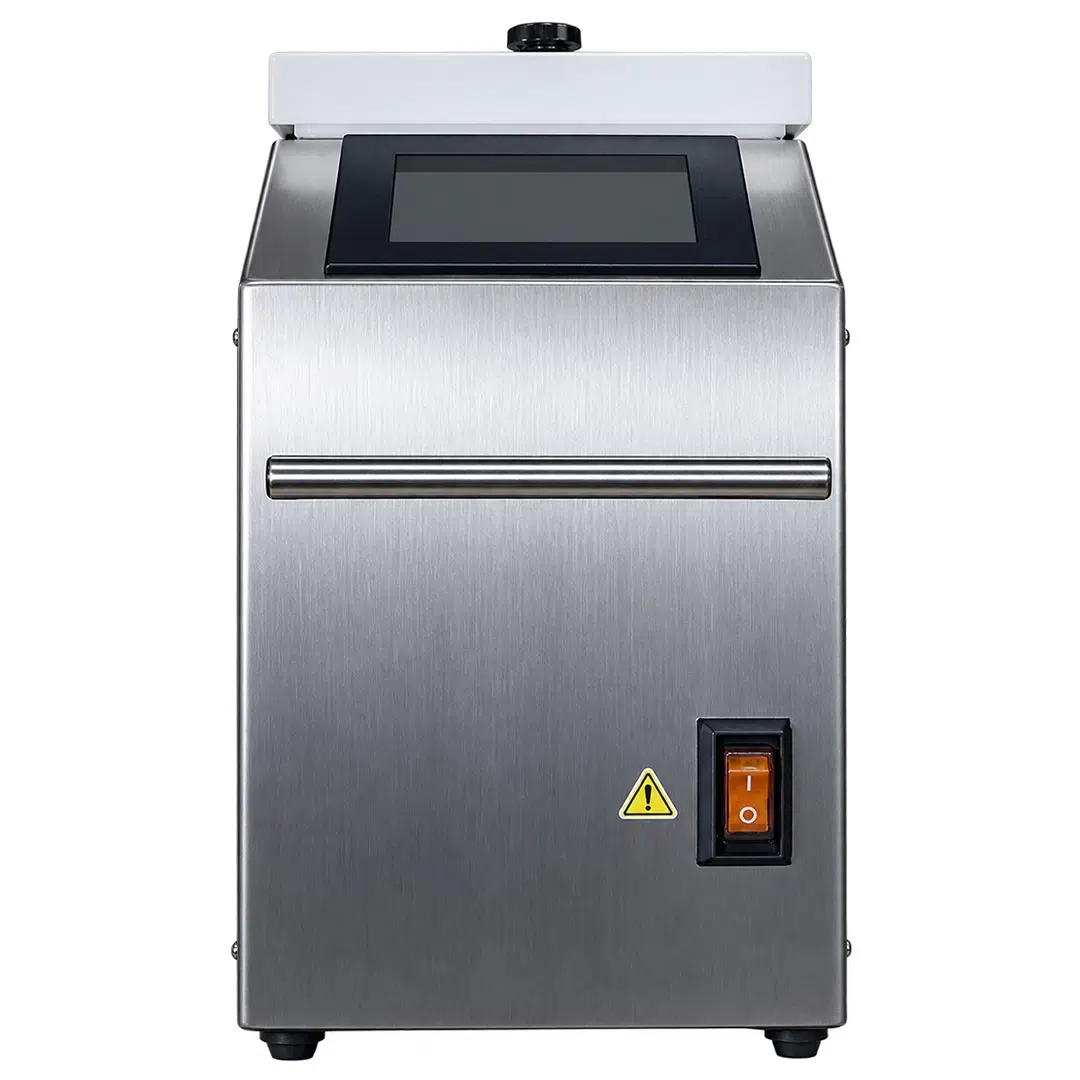

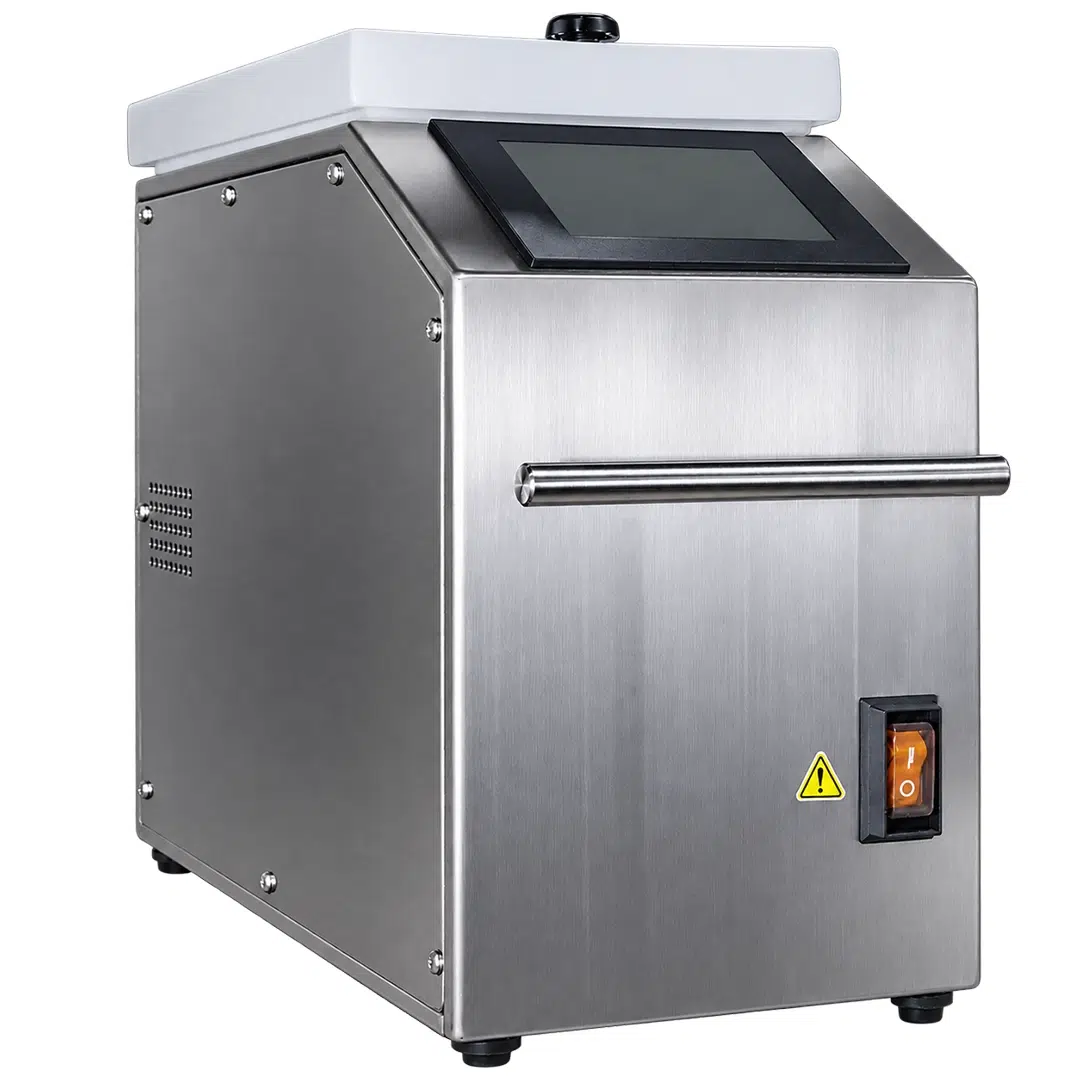

The CardioQuip MCH-1000(m) is a compact and efficient heater/cooler system tailored for procedures requiring precise thermal regulation. Its smaller design makes it ideal for applications with limited space, without compromising performance. With an intuitive touchscreen interface and self-priming technology, the MCH-1000(m) simplifies operation and enhances workflow. It maintains accurate temperature control and supports a wide range of thermal regulation needs in critical care and surgical environments. Designed for versatility, it includes quick-connect fittings and is compatible with multiple hose kits to suit various setups.
- Compact Design: Space-efficient unit ideal for environments with limited room.
- Accurate Temperature Control: Maintains temperatures from 0°C to 42°C with a precision of ±0.5°C.
- User-Friendly Interface: Intuitive touchscreen simplifies temperature adjustments and system monitoring.
- Self-Priming Technology: Reduces manual effort by automatically removing air from tubing lines.
- Flexible Connections: Features quick-connect fittings and compatibility with various hose kits for easy integration.
Manufacturer Disclaimer: Soma Tech Intl is an independent provider of new, demo, and refurbished medical equipment. Soma Tech Intl is not affiliated with, sponsored by, or endorsed by CardioQuip. CardioQuip and its product names are trademarks of their respective owners.
CardioQuip MCH-1000(m) Specifications
Dimensions
- Height: 16 inches (41 cm)
- Width: 9 inches (23 cm)
- Depth: 19 inches (48 cm)
- Weight (empty/full/max): 45 lb (20 kg) / 65 lb (29 kg) / 76 lb (34 kg)
General
- Water Capacity (min/max): 1 gal (3.8L) / 2.5 gal (9.5 L)
- Cooling Medium: Ice (Optional: Thermo-Electric Cooling Module)
- Water Path: Single
- Maximum Flow Rate (high/low): 20/14 lpm (5.3/3.7 GPM)
- Maximum Pressure: 83 kPa/ 12 psi (closed loop, blocked flow)
- Water Connections: Quick-connect, no-spill, two-way shutoff fittings. Hose kit included.
- Temperature Control: CRange 0-42°C Accuracy ±0.5°C, Setting 0.1°
- Power Consumption: Max Peak 1900W, Typ <1740W

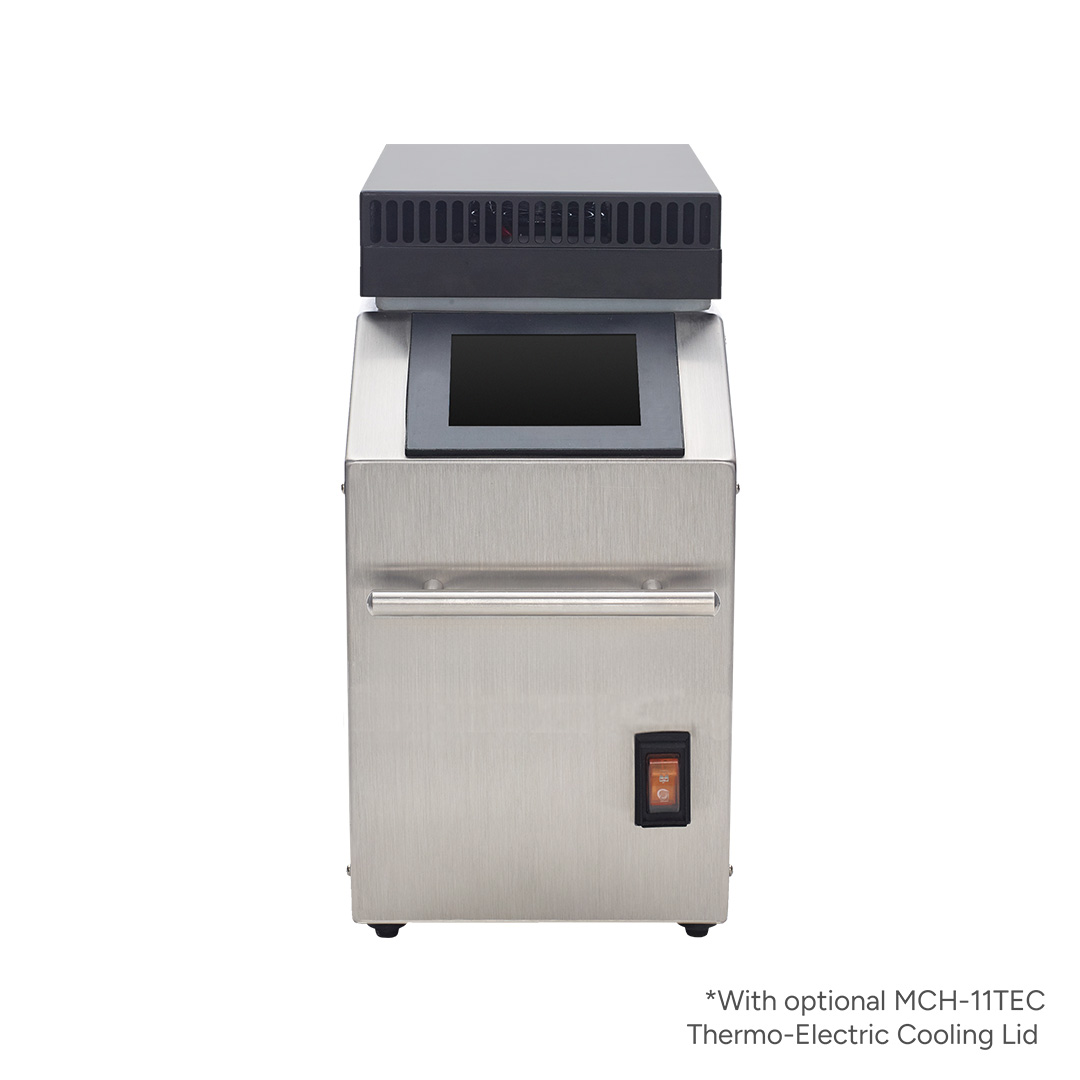

Optional MCH-11TEC Thermoelectric Cooling Lid Module
- Dimensions: 14.5 x 9 x 8.5 in (36.8 x 22.9 x 21.6 cm)
- Weight: 8.65 lbs (3.9 kg)
- Induced Airflow: <3.5 ft3 /min
- Power Consumption: Max Peak 100 W, Typ < 85 W
