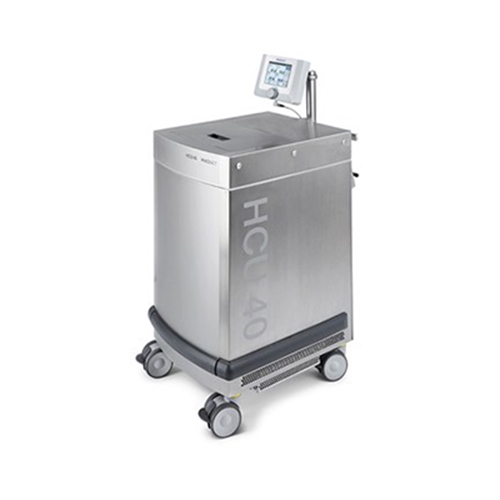

Maquet HCU 40 Features
The Maquet HCU 40 heater/cooler system from the Getinge Group is used to warm or cool a patient to maintain a specific temperature during cardiovascular interventions. This Maquet heater/cooler system features 2 separate water circuits with temperature regulation that are connected to the oxygenator/heat exchanger or the warming/cooling blanket. Temperature-regulated water flowing through the oxygenator/heat exchanger is where the heat exchange occurs. The Maquet HCU 40 allows both water temperatures for the heat exchanger and the warming/cooling blanket can be independently regulated. It can be set from 33.8°F to 104.9°F (1°C to 40.5°C).
- An automatically controlled mixing valve and split tank allow for fast temperature adjustments.
- Independent flow controls allow the unit to be located outside the operating room.
- Great heat capacity for a reduced patient rewarming time.
- User-friendly touchscreen graphical user interface.
- Ice-building system that helps reduce patient cooling times.
- Fast priming and automatic de-airing capabilities.
Maquet HCU 40 Specifications
Dimensions
- Height: 44.6 in (113.3 cm)
- Width: 30 in (50.8 cm)
- Depth: 27.7 in (70.3 cm)
- Weight: 340 lbs (154 kg) (empty)
General
- Cabinet Material: Polished stainless steel
- Display of User Interface: Color LCD with LED backlight and VGA resolution (640 x 480 px)
- Tube Connections: 6 metal connectors (patient: 1/2″, cardioplegia 3/8″)
Power
- Mains, high voltage: 200, 208, 220, 230 and 240 V
- Mains, Low Voltage: 110, 115 and 120 V<?l/i>
- Frequency: 50 and 60 Hz
- Power Tolerance: ± 10%
- Mains Fuse: 20 A
- Current limitation options, 200 to 240 volt: 10, 12, 14 and 16 A
- Current Limitation options, 110 to 120 volt: 16 A
Temperature
- Temperature measurement accuracy: ± 0.3 °C
- Temperature display range: -9.5 °C to 59.5 °C
Cooling System
- Compressor refrigeration, ice-making
- Tank Volume: 28 l
- Ice Supply: 15kg
- Initial cooling capacity 6350 kJ
- Continuous cooling performance of the compressor 4867 kJ/h (1352 W)<?li>
Heating system
- Electrical Heater
- Heating capacity 2 x 3000 W (230 V; 16 A); 2 x 1500 W (110 V; 16 A)
- Circulation system Pressure pumps
- Flow capacity, patient water circuit 18.5 l/min (50 Hz), 22.0 l/min (60 Hz) at zero pressure head (adjustable)
- Flow capacity, cardioplegia water circuit 9.5 l/min (50 Hz), 11.0 l/min (60 Hz) at zero pressure head (adjustable)
- Maximum pressure, patient water circuit
- 1.5 bar (50 Hz), 2.0 bar (60 Hz)
- Pressure alarm limit (safety cut-off) adjustable from 0.6 bar to 2.0 bar
Refurbished Maquet HCU 40 Heater Cooler
Soma Tech Intl offers Maquet HCU 40 heater/cooler systems up to 50% below OEM prices with the same service and warranty as new. The Maquet HCU 40 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Maquet HCU 40, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on heater/cooler systems. If necessary, parts are replaced to make sure that all aspects of the Heater-Cooler Unit 40 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Maquet HCU 40 is working like new it undergoes a special cosmetic restoration process. The Maquet HCU 40 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Maquet HCU 40 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Maquet HCU 40 contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase a Maquet HCU 40. If you or your facility is looking to sell your Maquet HCU 40, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Maquet HCU 40 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
