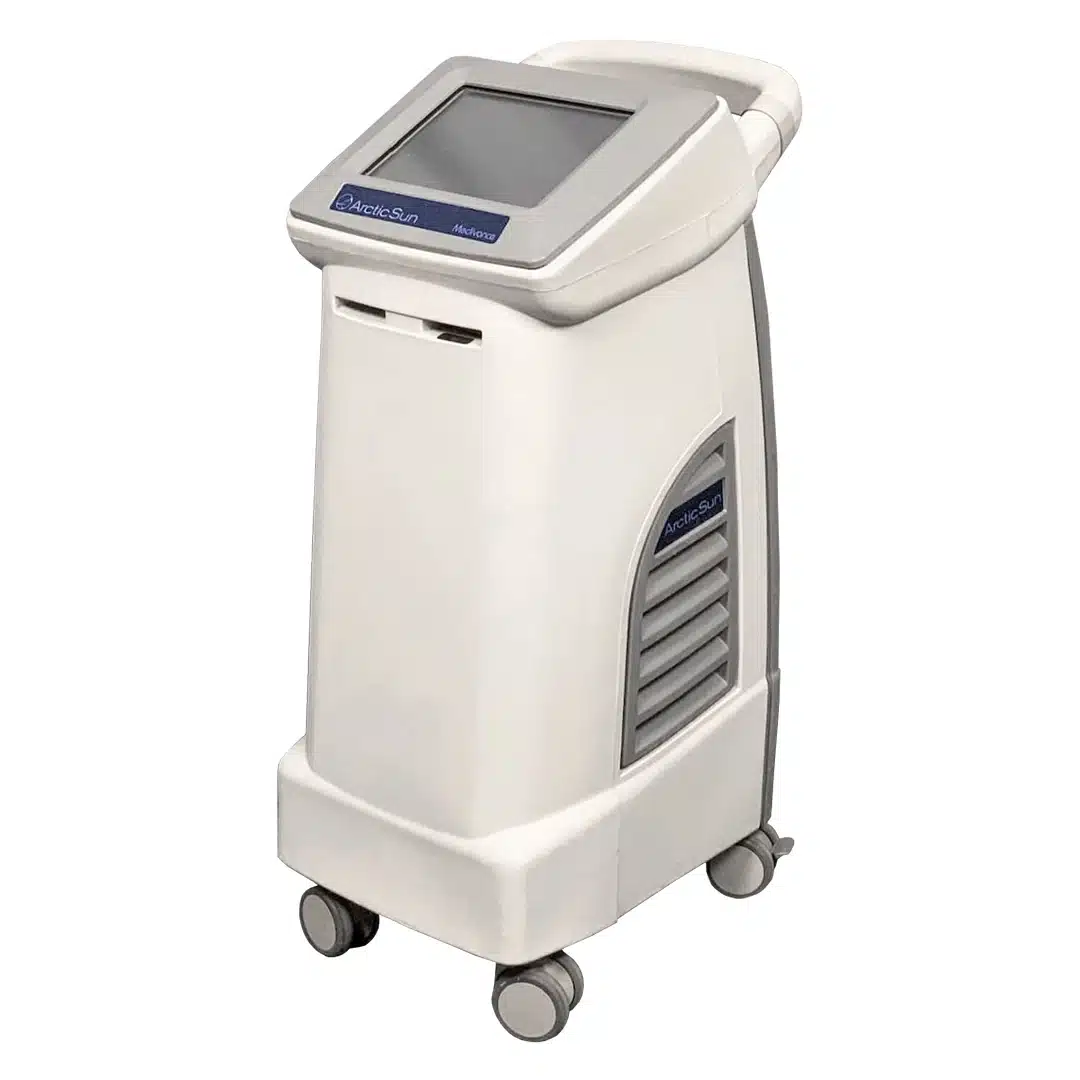

BD Arctic Sun 5000
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
BD Arctic Sun 5000 Features
The BD Arctic Sun 5000 Hyper/Hypothermia System is designed to help clinicians precisely manage a patient’s body temperature during critical care. Using temperature-controlled water circulating through adhesive cooling pads, the system provides efficient heat transfer directly at the patient’s skin surface. This conductive approach allows caregivers to cool or warm patients within a controlled therapeutic range while continuously monitoring temperature. The unit is commonly used in hospitals for targeted temperature management following cardiac events, neurological injury, or other conditions where strict thermal control is required. Built with automated controls and monitoring features, the Arctic Sun 5000 helps clinical teams maintain stable patient temperatures throughout treatment.
- Targeted Temperature Management: Monitors and regulates patient temperature within a therapeutic range of approximately 32°C to 38.5°C (89.6°F to 101.3°F).
- Conductive Cooling and Warming: Circulates temperature-controlled water through ArcticGel pads adhered to the patient, allowing efficient heat exchange directly through the skin.
- Wide Water Temperature Range: Delivers circulating water between 4°C and 42°C (39.2°F to 107.6°F) to support both cooling and warming therapies.
- Leak Prevention Design: Uses a negative pressure flow system that helps reduce the risk of water leaks during operation.
- System Monitoring and Diagnostics: Includes performance monitoring, alarm logs, and case data storage to support clinical documentation and system maintenance.
BD Arctic Sun 5000 Specifications
Dimensions
- Height: 35 in (89 cm)
- Width: 14 in (36 cm)
- Depth: 18.5 in (47 cm)
- Weight:
- Empty: 95 lbs (43 kg)
- Filled: 103 lbs (47 kg)
Therapy Modes
- Normothermia: Control Patient, Rewarm Patient
- Hypothermia: Cool Patient, Rewarm Patient
Patient Temperature
- Control Range: 32°C to 38.5°C (89.6°F to 101.3°F)
- Display Range: 10°C to 44°C (50°F to 111.2°F)
- Resolution: 0.1°C / °F increments
- Measurement Accuracy:
- ±0.4°C (10°C to 32°C)
- ±0.2°C (32°C to 38°C)
- ±0.4°C (38°C to 44°C)
- Probe Type: YSI 400 Series compatible
- Temperature Inputs:
- Patient Temp 1: Control, Monitor, Alarm
- Patient Temp 2: Monitor, Alarm
Water Temperature
- Display Range: 3°C to 45°C (37.4°F to 113°F)
- Control Range (Manual): 4°C to 42°C (39.2°F to 107.6°F)
- High Water Temperature Limit: 36°C to 42°C (96.8°F to 107.6°F)
- Low Water Temperature Limit: 4°C to 25°C (39.2°F to 77°F)
- Resolution: 1°C / °F increments
Water System
- Circulating Fluid: Sterile Water
- Reservoir Capacity: 3.5 liters
- Water Flow Rate: 5 liters per minute
- Time to Heat Water (20°C to 37°C): Approximately 8 minutes
System Performance
- Settling Time: ~4.5 hours
- Relative Overshoot: <0.5°C
- Command Overshoot: <0.5°C
- Response Time:
- Warming (33°C to 37°C): ~6 hours
- Cooling (37°C to 33°C): ~2 hours
- Steady State Deviation: 0
- Tracking Error: 0
Heater
- Heater Capacity: 2500 BTU/hr (750 Watts)
Alarm System
- Alarm Tone: 70 dB to 80 dB at 1 meter, repeats every 10 seconds
- Alert Tone: 63 dB to 71 dB at 1 meter, repeats every 25 seconds
- Reminder Tone: 65 dB at 3 meters, 0.5 seconds on / 20 seconds off
Electrical
- Main Input:
- 100–120 VAC, 50–60 Hz, 11 A
- 220–240 VAC, 50–60 Hz, 5.5 A
- Leakage Current: <300 μA
Environmental
- Operating Temperature: 10°C to 27°C (50°F to 80°F)
- Storage Temperature: -30°C to 50°C (-20°F to 120°F)
- Operating Humidity: 5% to 70% non-condensing
- Storage Humidity: 5% to 95% non-condensing
- Atmospheric Pressure: 60 kPa to 110 kPa
Refurbished BD Arctic Sun 5000
Soma Tech Intl offers the BD Arctic Sun 5000 Hyper / Hypothermia System up to 50% below OEM prices, providing the same service and warranty as a new. This BD temperature management system undergoes both technical and cosmetic refurbishment to ensure it performs and appears as if it were new. During the refurbishment of the Arctic Sun 5000, our in-house biomedical engineers, who are highly trained and certified to work on hyper / hypothermia systems and patient temperature management devices, carefully inspect and test the unit. If required, components are replaced to ensure all aspects of the BD Arctic Sun 5000 meet the original manufacturer’s engineering specifications. This ensures the temperature management system operates just as it did when it originally left the manufacturer.
Once the Arctic Sun 5000 system is fully operational, it proceeds through a detailed cosmetic restoration process. The BD hyper / hypothermia system is thoroughly cleaned, minor scratches and dents are addressed, surfaces are refinished when necessary, and decals are replaced if needed. After completing this refurbishment process, the Arctic Sun 5000 both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the BD Arctic Sun 5000 Hyper / Hypothermia System is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl is actively seeking to purchase BD Arctic Sun 5000 temperature management systems. If your facility is interested in selling an Arctic Sun 5000 or other hyper / hypothermia systems, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned BD medical equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a BD Arctic Sun 5000 or other temperature management systems you would like to sell, send us a message.
