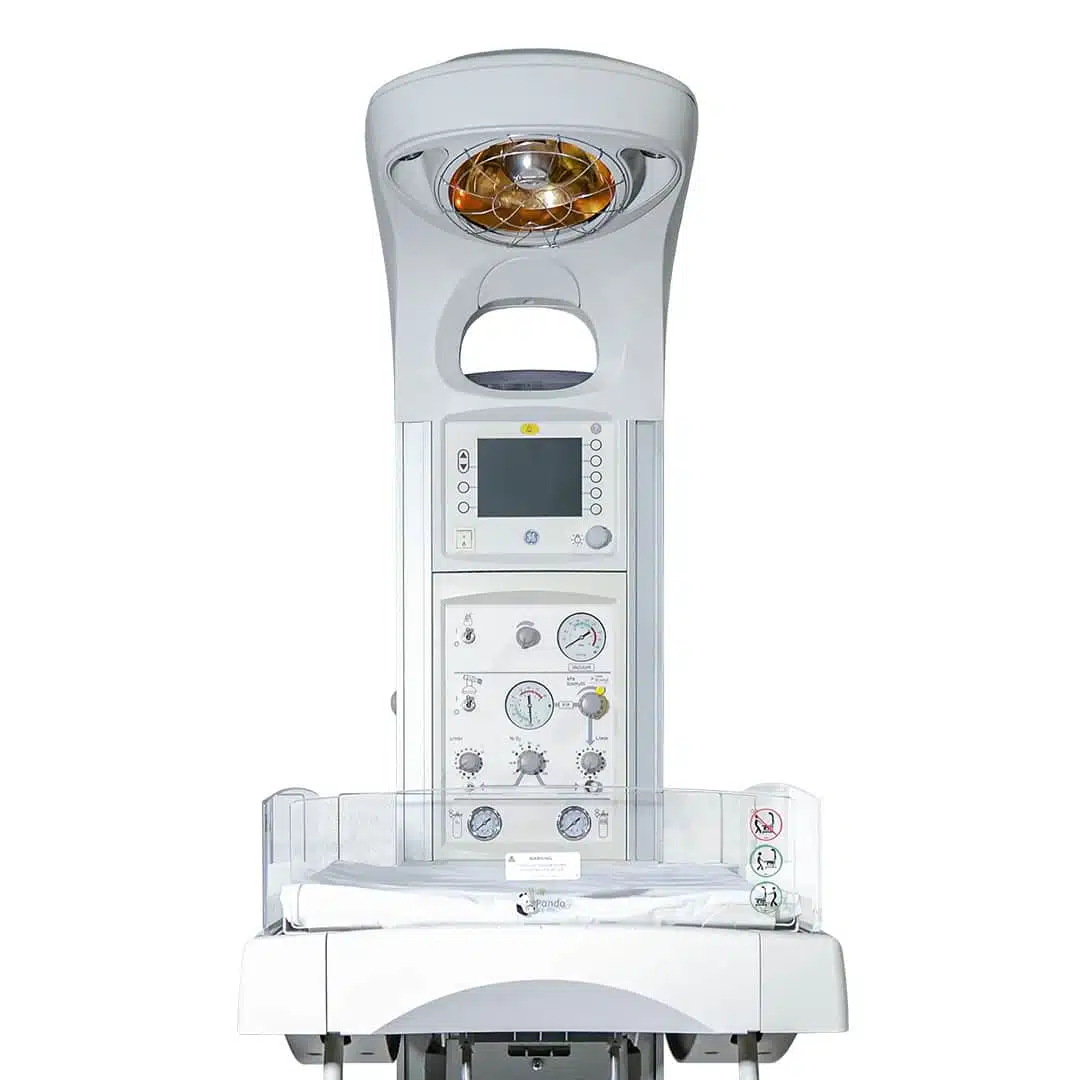

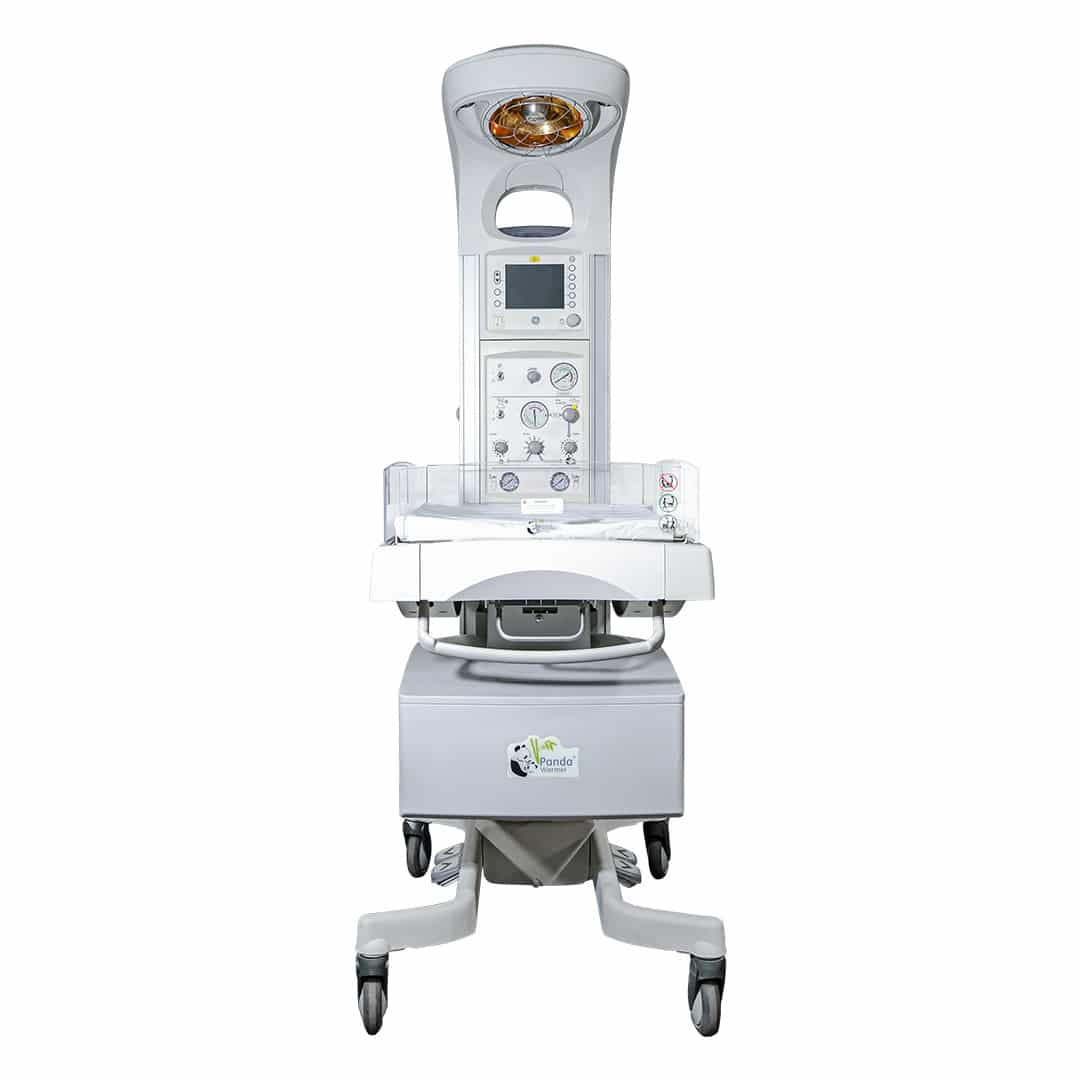

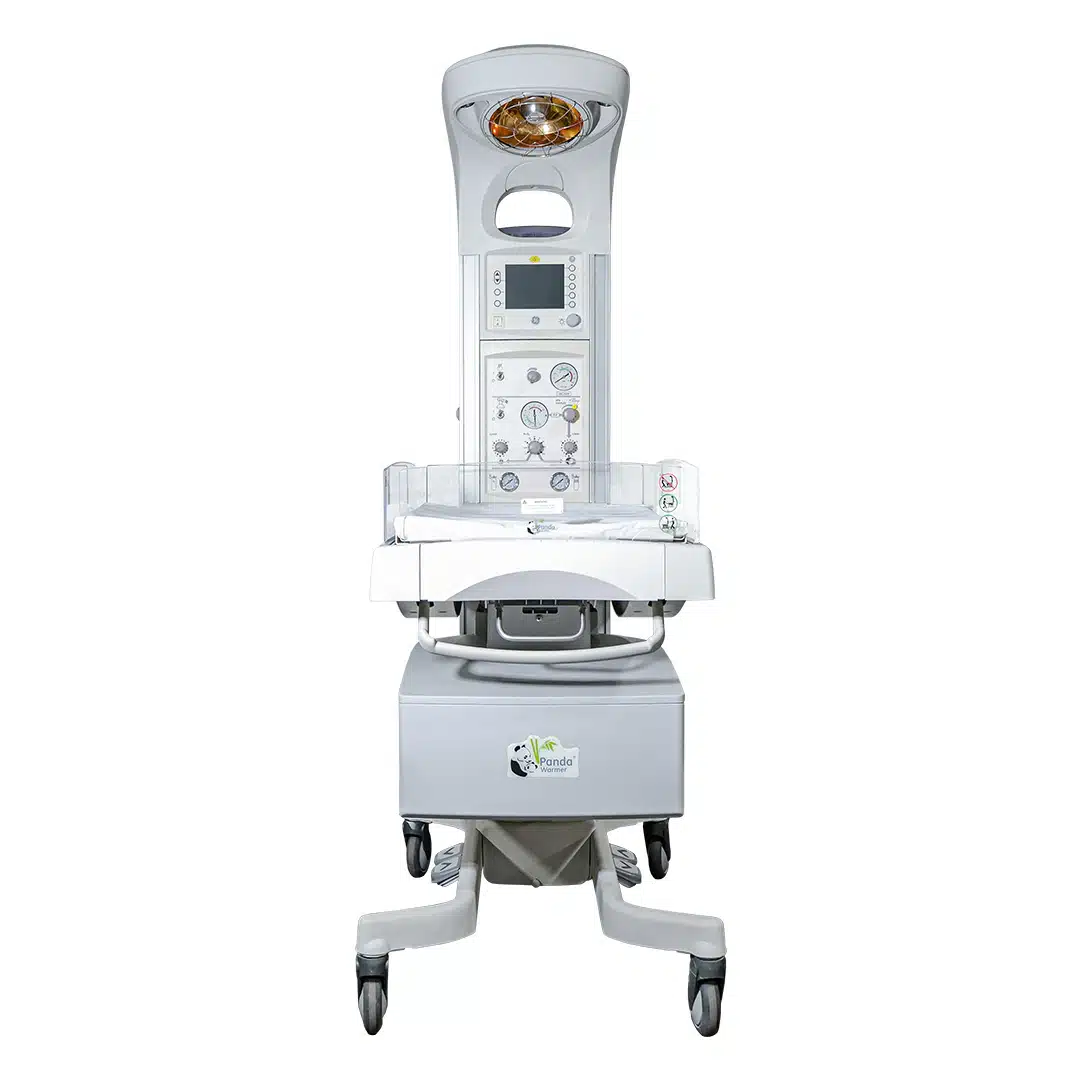

GE Panda Warmer – Panda iRes Features

The GE Panda iRes is one of the best infant warmers, helping to keep the babies’ bodies warm through temperature regulation. The innovative recessed heater in the Panda Warmer lets you interact with the patient, while still allowing their body to maintain heat separate from you.

With hands-free alarm silencing the Panda Warmer has easy-to-read control panels, optional SpO2, and more, the GE Panda iRes provides caregivers and parents peace of mind. The GE Panda Warmer comes standard with GE’s new Hourglass Heat Profile, giving the baby uniform, gentle heat while keeping caregivers and parents cool and comfortable.

The radiant heat comes from an infrared heat source that is focused on the bed to warm the baby. The clinician is able to select heater power (manual mode) or skin temperature (baby mode) controls. Depending on the control method selected, the heater is either regulated at the operator-selected power level, or the heater output is modulated to maintain the patient’s temperature at the selected value. The Panda is intended for use in a labor and delivery unit. They include the same general observation lights at the Giraffe Warmer but the procedure light is optional.

This infant warming system features a small heater reflector and a compound elliptical shape. This unique combination was designed for optimal headspace over the bed surface. By leaving the area over the bed clear, the caregiver can observe and treat the patient unobstructed. Additionally, this also allows the head of an X-ray machine to be placed over the patient without moving the heater head or patient. The Panda iRes Warmer features optional integrated SpO2 and resuscitation. The SpO2 option allows the clinician to monitor the patient’s blood oxygen level, while the optional resuscitation allows for administering forced breathing if required. Looking for other GE infant warmers? Or are you looking to compare a similar model to the GE Giraffe?

  • Sleek design
  • Compact size
  • Innovative recessed heater
  • In-bed scale (optional)
  • Optional integrated SpO2
  • Adjustable lighting
  • Full-color display
  • Hands-free alarm silence.

GE Panda iRes Infant Warmer Specifications

Dimensions

  • Height (Adjustable): 75″ – 85.82″ (193-218 cm)
  • Width: 25.2″ (64 cm)
  • Depth: 46.9″ (119 cm)
  • Weight: 220.5 lb (100 kg)

Panda Mattress / Bed / Scale (Optional)

  • Panda Mattress Size: 26″ x 19″ x 0.8″ (66 x 48 x 2 cm)
  • Weight Capacity: 30 lbs (14 kg)
  • Bed Tilt: ± 12 degrees continuous tilt
  • Weight Scale (optional)
    • Functional range 300g to 8 kg
    • Accuracy ± 10g

SpO2 Specifications (Nellcor Option)

  • Measurement Range: SpO2 : 1-100% SpO2; Pulse Rate: 20-300 bpm
  • Accuracy
    • SpO2: from 70-100% SpO2, +/- 3 digits for neonates
    • Below 69%, unspecified
    • Pulse rate, no motion: +/- 3 bpm
  • Wavelengths and Power: Nominally 660 nm and 900 nm with total optical output power of the sensor LEDs less than 15 mW
  • Data Update Period: At maximum averaging time, the data is updated in less than thirty seconds; shorter averaging times reduce this update period.
  • Alarms: User-selectable upper and lower limits for SpO2 and pulse rates

SpO2 Specifications (Masimo Option)

  • Measurement Range: SpO2 : 1-100% SpO2; Pulse Rate: 25-240 bpm
  • Wavelengths: Red: 660 nm, nominal; Infrared: 905 nm, nominal
  • Maximum Optical Output Power: Radiant Power at 50 mA pulsed: 0.13 mW, minimum; 0.79 mW, maximum
  • Accuracy
    • SpO2: from 70-100% SpO2, +/- 3% SpO2 for neonates
    • Below 69%, unspecified
    • Pulse rate, no motion: +/- 3 bpm
    • Pulse rate, motion: +/- 5 bpm
    • Data Update Period: At the maximum averaging time, the data is updated in less than thirty seconds; shorter averaging times reduce this update period.
    • Alarms: User-selectable upper and lower limits for SpO2 and pulse rates

System Performance

  • Warmer Expected life: Approximately 8 years
  • Heater Element: 360 Watts
  • Heater Output: 27 mW/cm2
  • Patient Temperature Measurement Accuracy: ± 0.3°C @ 30°C to 42°C
  • Temperature Probe Accuracy: ± 0.1°C @ 30°C to 42°C
  • Observation Light: 2 dimmable 35W halogen bulbs; estimated life of 3000 hours based on manufacturer’s specifications
  • Procedure Light: 2000 lux (at nominal voltage) average; estimated life 3000 hours
  • Elevating Base Duty Cycle: 15%
  • Alarm Volume: At 3m away from the device, the alarm level is: >60 dBA at the maximum setting; >50 dBA at the minimum setting

Irradiance

  • 50% Power: 10-15 mW/cm2
  • 100% Power: 31 mW/cm2

Operational Environment

  • Operating Temp. Range: 18°C to 30°C
  • Operating Humidity: 5% to 75%
  • Storage Temp. Range: -25°C to +60°C
  • Storage Humidity Range: 0% to 85%

Electrical Power

  • 115 VAC, 50/60 Hz Models: 115 V ± 10%; 6.6 Amps
  • 220-240 VAC, 50/60 Hz Models: 230 V ± 10%; 3.3 Amps
  • Nominal Power Consumption: 520 W at max. heater power, max. lighting

Refurbished GE Panda iRes Infant Warmer

Soma Tech Intl offers the GE Panda iRes Infant Warmer up to 50% below OEM prices with the same service and warranty as new. Soma Technology technically and cosmetically refurbishes these GE Panda back to the original engineering manufacturer specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Panda iRes are in working order, the infant Warmer is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Technology not only refurbishes the product, but each unit also goes through a Special cosmetic restoration process. The GE Panda iRes Infant Warmer is cleaned minor scratches and dentures are repaired, and decals are replaced if necessary.

Soma Tech Intl also purchases used and pre-owned GE Panda iRes Infant Warmers. If you or your facility wants to sell your Panda Infant Warmer, Soma Tech has an experienced purchasing department that makes the process headache and hassle-free. When selling your infant warmer system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech Intl not only buys infant warmers but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!
