Drager Siemens SC7000

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Drager Siemens CS7000 Features

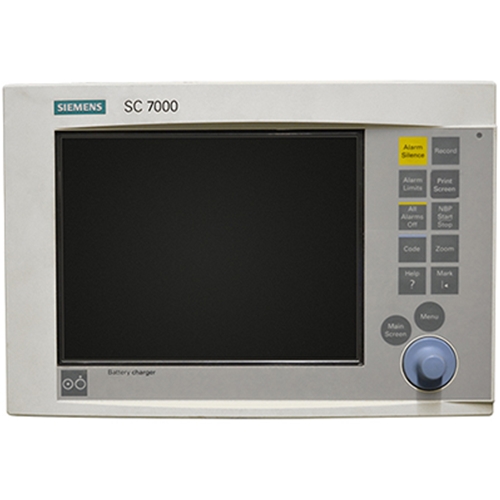

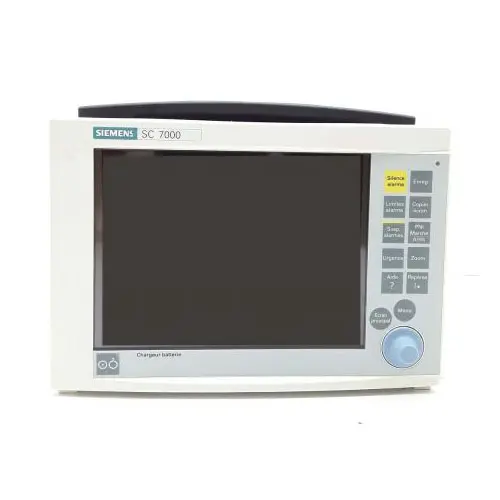

The Drager Siemens SC 7000 is a Patient Monitor that can be used for neonatal, pediatric, and adult patients. The Siemens SC7000 offers a high-quality, color image of the waveforms on the LCD display screen. The patient monitor can display parameters that include multiple-lead ECG, Spo2, Cardiac output, non-invasive blood pressure, and arrhythmia. The Siemens SC7000 comes with a battery but also offers external battery support as well. with both of these, the monitor can run for 2 hours without a charge.

  • Suitable for adult, pediatric, and neonatal patients.
  • Easily attached to a shelf, wall, or IV pole.
  • NBP is included as an integral function.
  • Airway and sidestream CO2 monitoring requires an EtCO2 cartridge that is installed on the slide mount on the back of the unit.

Drager Siemens CS7000 Specifications


  • Height: 8.8” (22.4 cm)
  • Width: 13” (33 cm)
  • Depth: 4” (10.2 cm)
  • Weight: 15.5 lbs (7 kg)


  • Input Voltage: 11 to 15 V DC
  • Power Consumption: =70 Watts (fully loaded)
  • Protection Class: Internally powered (per IEC 601-1) and for use with specified Class I power supplies
  • Battery Life: 75 minutes (125 minutes with optional External Battery)
  • Patient Leakage Current: =10 µA
  • Mode of Operation: Continuous with external power supply; for a limited time with battery backup


  • Type: Thin Film Transistor Liquid Crystal (TFT-LCD)
  • Size: 10.4” (Diagonal)
  • Viewing Area: 8.3 x 6.2” (21.1 x 15.8 cm)
  • Resolution: 640 x 480
  • Color Capability: 512

Lead Acid Battery

  • Type: Rechargeable, Lead-acid
  • Charge Time: 8 Hours
  • Working Time: 4.5 Hours

Li-ion Battery

  • Type: Rechargeable, Lithium-Ion <?li>
  • Charge Time: 8 Hours
  • Working Time: 10.5 Hours


  • Method: Automatic oscillometric
  • Range: Adult: 10-270mmHg, Pediatric: 10-200mmHg, Neonate: 10-135mmHg
  • Over-pressure Protection: Yes</li.
  • Pulse Rate: 40-240 bpm
  • Pulse Rate Resolution: 1 bpm
  • Pulse Rate Accuracy: ±2 bpm

Refurbished of The Drager Siemens CS 7000 Patient Monitor

Soma Tech Intl offers the Drager Siemens CS 7000 Patient Monitors up to 50% below OEM prices with the same service and warranty as new. The Drager Siemens CS 7000 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Drager Siemens CS 7000, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the Drager Siemens CS 7000 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Drager Siemens CS 7000 is working like new it undergoes a special cosmetic restoration process. The Drager Siemens CS 7000 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Drager Siemens CS 7000 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Drager Siemens CS 7000 patient monitors contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Drager Siemens CS 7000 If you or your facility is looking to sell your Drager Siemens CS 7000, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Drager Siemens CS 7000 takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
