GE CARESCAPE B450 Features

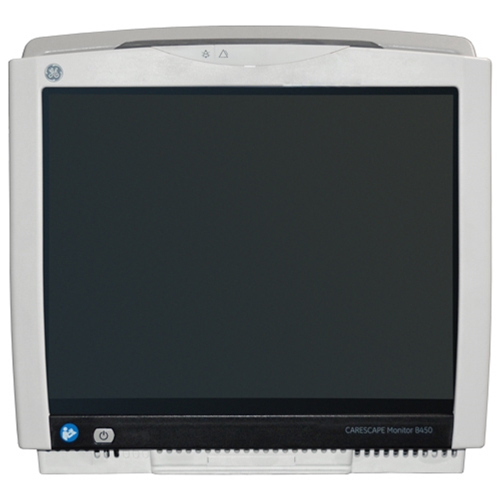

The GE CareScape B450 is a bedside patient monitor that is ideal for intra-hospital transport.
With its wireless capabilities, detachable modules, and battery power, it can ensure continuous monitoring and data acquisition during patient transfer. The B450 Monitor can be easily connected to a hospital’s Network for viewing data through either an s/5 connection or connecting through a monitoring station such as the CareScape CIC Pro network. The monitor was designed based on the features and functionality of the B650 and the B850, which allow for additional monitoring of full hemodynamic and full respiratory monitoring. The B450 is a touchscreen monitor that offers a range of clinical parameters including airway gases, ECG analysis, Non-invasive blood pressure, and SpO2.

  • Battery strength indicator LED light
  • Back-up AC power
  • Documents and stores events
  • Shock advisory option
  • Adjustable heart rate alarms
  • ECG Monitor
  • External Paddles
  • Recorder
  • Alarms and Code Summary
  • Biomedically Inspected
  • Patient Ready

GE CARESCAPE B450 Specifications


  • Height: 11.4 in (29 cm)
  • Width: 11.9 in (30 cm)
  • Depth: 6.2 in (16 cm)
  • Weight: 5.0 kg (11.0 lb) with all options and battery, without modules

Power Supply / Battery

Power Supply

  • Universal input voltage range: 100 to 240 Vac +/-10%, 50/60 Hz
  • Power consumption: < 200 VA
  • Protection class: Class I
  • Grounding: Hospital grade
  • Cooling: Natural convection – no fans

Battery (Optional)

  • Type: Exchangeable Lithium-Ion
  • Number of batteries: 1 or 2
  • Voltage: 10.8 V (nominal)
  • Capacity: 3.8 Ah per battery, 7.6 Ah with 2 batteries (min)
  • Charge time: 2 to 3 hours per battery, depending on configuration
  • Run time: 3.5 hours, depending on configuration
  • Battery life: 300 cycles to 60% capacity

Technical Specifications


  • Size: 12 in (diagonal)
  • Type: Active matrix color TFT LCD
  • Resolution: 1024 x 768 pixels (XGA)
  • Number of traces: 6 (max)
  • Sweep speed: 0.625, 6.25, 12.5, 25, 50 mm/sec
  • Configuration: Automatic configuration according to parameter availability.
  • Manual configuration with up to 8 user- user-configurable profiles for care-specific configurations, and up to 6 user-configurable display pages for each profile


  • Touch screen: Standard
  • Power on: Front of unit
  • Remote control (USB): Optional 11 keys to facilitate non-touch use: Alarm
    Setup, Monitor Setup, Procedures, Trends, Data & Pages, Print Waveforms,
    Freeze/ Snapshot, NIBP Auto, NIBP Start/ Stop, Parameters, and Zero ALL

Operating Conditions

  • Temperature: 10 to 35°C (50 to 95°F)
  • Relative Humidity: 10 to 90% non-condensing

Storage Conditions

  • Temperature: -20 to 60°C (-4 to 140°F)
  • Relative Humidity: 10 to 90% non-condensing

Refurbished GE Carescape B450 Patient Monitor

Soma Tech Intl offers the GE Carescape B450 Monitors up to 50% below OEM prices with the same service and warranty as new. The GE Carescape B450 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the GE Carescape B450, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the GE Carescape B450 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Carescape B450 is working like new it undergoes a special cosmetic restoration process. The GE Carescape B450 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Carescape B450 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished GE Carescape B450 patient Monitors contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a GE Carescape B450. If you or your facility is looking to sell your GE Carescape B450 monitor, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE Carescape B450 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
