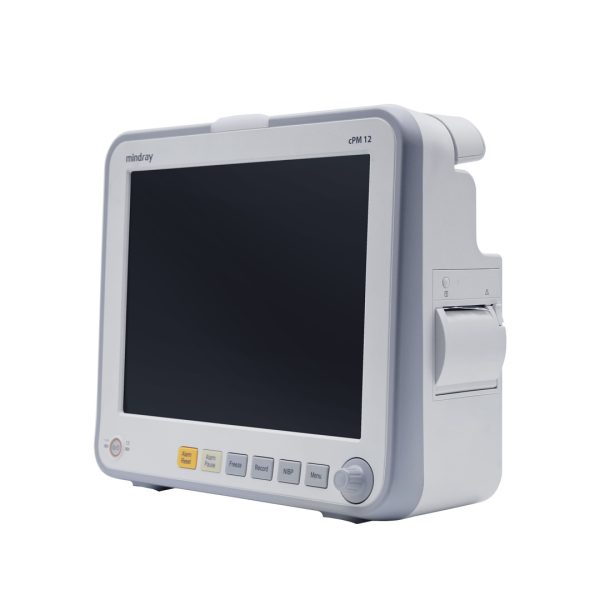

Mindray cPM 12

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Mindray cPM 12 Patient Monitor Features

The Mindray cPM 12 is a versatile and advanced patient monitor designed to provide comprehensive monitoring for various clinical environments. Its user-friendly interface and robust feature set make it an ideal choice for critical care, emergency, and perioperative settings.

  • High-resolution 8” and 12” touchscreen displays
  • Displays up to 7 waveforms
  • Standard features include 3- or 5-lead ECG, Masimo SET® SpO2, NIBP, respiration, temperature, integrated recorder
  • Optional Nellcor® OxiMax® SpO2 available
  • Arrhythmia analysis with atrial fibrillation detection and QT/QTc monitoring
  • Additional module parameter options include:
    • Sidestream CO2
    • 2 IBP + CO + Sidestream CO2
    • 2 IBP + CO + Microstream® CO2
    • Multi-gas + 2 IBP + CO (cPM12 only)
  • Extensive data storage capability for trend data, alarms, events, NIBP measurements and up to 48 hours of full disclosure
  • Integrated HL7 and serial DIAP protocol interfaces
  • Defibrillator synchronization
  • Ergonomic carrying handle, and multiple mounting solutions

Mindray cPM 12 Patient Monitor Specifications

DIMENSIONS

  • Height: 10.8 in (27.4 cm)
  • Width: 12.6 in (31.8 cm)
  • Depth: 5.1 in (12.8 cm)
  • Weight: 10 lb (4.5 kg)

AC POWER

  • Line voltage: 100 to 240 VAC (±10%)
  • Input current: 1.3 to 0.5 A
  • Frequency: 50/60 Hz (± 3 Hz)

BATTERY

  • Battery type: Chargeable Lithium-Ion, 11.1DVC, 4.5 Ah
  • Run Time
    • One Battery: ≥ 4 hours
    • Two Batteries: ≥ 8 hours
  • Charge time
    • ≤ 3h to 90% and ≥ 4h when the monitor is off
    • ≤ 8h to 90% and ≥ 12h when the monitor is on

DISPLAY

  • Screen Size: 12.1”
  • Screen Type: Color TFT LCD
  • Resolution: 800×600 pixels

RECORDER

  • Method: Thermal dot array
  • Paper width: 50 mm±1 mm
  • Paper Speed: 25 mm/s or 50 mm/s with accuracy within ±5%
  • Number of waveform channels : Maximum 3

MONITOR INTERFACE

  • Power: 1 AC power input connector
  • Wired network: 1 RJ45 connector, 100 Base-TX, IEEE 802.3 USB: 2 connectors, USB 2.0 Equipotential Grounding Terminal: 1
  • Multifunctional connector: 1
  • VGA connector: 1

DATA STORAGE

  • Trends
    • 120 hours, at 1 min resolution
    • Mid-length trends: 4 hours, at 5 s resolution
    • Minitrends: 1 hour, at 1 s resolution
  • Parameter alarms: 100 alarms and manual events and related parameter waveforms. The waveform recording length can be 8s, 16s, or 32s.
  • Arrh. events: 100 arrhythmia events and relate waveforms and parameters. The waveform recording length can be 8s, 16s, or 32s.
  • NIBP measurements: 1000 sets
  • Full-disclosure waveforms: 48 hours at maximum. The specific storage time depends on the waveforms stored and the number of stored waveforms.

ECG

  • Standards: Meet standards of EC11, EC13, EN60601-2-27/IEC60601-2-27 and IEC60601-2-25
  • Lead set
    • 3-lead: I, II, III
    • 5-lead: I, II, III, aVR, aVL, aVF, V
  • ECG standard: AHA, IEC
  • Display sensitivity
    • 1.25 mm/mV (X0.125), 2.5 mm/mV (X0.25), 5
      mm/mV (X0.5), 10 mm/mV (X1), 20 mm/mV (X2),
      40 mm/mV (X4)
    • Accuracy: ±5%
  • Sweep speed
    • 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s,
    • Accuracy: ±10%
  • Bandwidth (-3dB)
    • Diagnostic mode: 0.05 to 150 Hz
    • Monitor mode: 0.5 to 40 Hz
    • Surgical mode: 1 to 20 Hz
  • Common mode rejection ratio
    • Diagnostic mode: >90 dB
    • Monitor mode: >105 dB
    • Surgical mode: >105 dB
  • Notch filter: 50/60 Hz
  • Differential input impedance: ≥5 MΩ
  • Input signal range: ±8 mV (peak-to-peak value)
  • Electrode offset potential tolerance: ±500 mV
  • Lead-off detection current
    • Measuring electrode: <0.1 μA
    • Drive electrode: <1 μA
  • Input offset current
    • Measuring electrode: ≤0.1 μA
    • Drive electrode: ≤1 μA
  • Baseline recovery time: <5 s (after defibrillation)
  • Patient leakage current: <10 uA
  • Calibration signal
    • 1mV (peak-to-peak value)
    • Accuracy: ±5%
  • ESU protection
    • Cut mode: 300 W
    • Coagulate mode: 100 W
    • Recovery time: ≤10 s
  • ESU noise suppression: Compared with ECG baseline, the noise of peak to peak value ≤2 mV.

PACE PULSE

  • Pace pulse markers
    • Amplitude: ±2 to ±700 mV
    • Width: 0.1 to 2 ms
    • Rise time: 10 to 100 µs
  • Pace pulse rejection
    • Amplitude: ±2 to ±700 mV
    • Width: 0.1 to 2 ms
    • Rise time: 10 to 100 µs
  • Pacer pulse detector rejection of fast ECG signals: 10V/s RTI

HR

  • Measurement range
    • Neonate: 15 to 350 bpm
    • Pediatric: 15 to 350 bpm
    • Adult: 15 to 300 bpm
  • Resolution: 1 bpm
  • Accuracy: ±1 bpm or ±1%, whichever is greater
  • Sensitivity: 200μV (lead II)
  • Minimum QRS detection threshold
    • Adult and pediatric: 0.16 to 0.48 mV
    • Neonate: 0.12 to 0.40 mV
  • Measurement range
    • QT: 200 to 800 ms
    • QTc: 200 to 800 ms
    • QT-HR: 15 to 150 bpm for adult, 15 to 180 bpm
  • for pediatric and neonate
  • Accuracy: QT ± 30 ms
  • Resolution
    • QT: 4 ms
    • QTc: 1 ms

RESP

  • Technique: Trans-thoracic impedance
  • Lead: Options are lead I and II. The default is lead II
  • Respiration excitation waveform: <300 µA RMS, 62.8 kHz (±10%)
  • Baseline impedance range: 200 to 2500Ω (using an ECG cable with 1kΩ resistance)
  • Bandwidth: 0.2 to 2.5 Hz (-3 dB)
  • Sweep speed
    • 6.25 mm/s, 12.5 mm/s or 25 mm/s
    • Accuracy: ±10%
  • Measurement range
    • Adult: 0 to 120 rpm
    • Pediatric, neonate: 0 to 150 rpm
    • Resolution: 1 rpm
  • Accuracy
    • 7 to 150 rpm: ±2 rpm or ±2%, whichever is greater
    • 0 to 6 rpm: Not specified
  • Apnea Alarm Time: 10s, 15s, 20s, 25s, 30s, 35s, 40s

SPO2

  • SpO2 High: (low limit + 2) to 100
  • SpO2 Low
    • Masimo: Desat to (high limit – 2)
    • Nellcor: Desat or20 (whichever is greater) to (high limit – 2)
  • Desat 0 to (high limit – 2)

PR

  • PR High: (low limit +2) to 300
  • PR Low: 15 to (high limit-2)

NIBP

  • Technique: Oscillometry
  • Mode of operation: Manual, Auto and STAT
  • Auto mode repetition intervals: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 8 h
  • STAT mode cycle time: 5 min
  • Max measurement time
    • Adult, pediatric: 180s
    • Neonate: 90s
  • Measurement ranges (mmHg):
    • Systolic; Adult: 25 to 290
    • Systolic; Pediatric: 25 to 240
    • Systolic; Neonate: 25 to 140
    • Diastolic; Adult: 25 to 290
    • Diastolic; Pediatric: 25 to 240
    • Diastolic; Neonate: 25 to 140
    • Mean; Adult: 25 to 290
    • Mean; Pediatric: 25 to 240
    • Mean; Neonate: 25 to 140
  • Accuracy
    • Max mean error: ±5 mmH
    • Max standard deviation: 8 mmHg
  • Resolution: 1mmHg

TEMP

  • Technique: Thermal resistance
  • Measurement range: 0 to 50 °C (32 to 122 °F)
  • Resolution: 0.1 °C
  • Accuracy: ±0.1 °C (without probe)
  • Refreshing rate: 1 s
  • Minimum time for accurate measurement
    • Body surface: <100s
    • Body cavity: <80 s

IBP

  • Technique: Direct invasive measurement
  • Measurement range: -50 to 300 mmHg
  • Resolution: 1 mmHg
  • Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)
  • Refreshing rate: 1s
  • Measurement range: 0% to 50%
  • Pressure transducer
    • Excitement voltage: 5 VDC, ±2%
    • Sensitivity: 5 μV/V/mmHg
    • Impedance range: 300 to 3000Ω

CO2

  • Measurement mode: Sidestream, microstream, mainstream
  • Technique: Infrared absorption

C.O.

  • Measurement method: Thermodilution method
  • Measurement range
    • C.O.: 0.1 to 20 L/min
    • TB: 23 to 43 °C
    • TI: 0 to 27 °C
  • Resolution
    • C.O.: 0.1 L/min
    • TB, TI: 0.1 °C
  • Accuracy
    • C.O.: ±5% or ±0.1 L /min, whichever is greater
    • TB, TI: ±0.1 °C (without sensor)
  • Repeatability: C.O. ±2% or ±0.1 L/min, whichever is greater
  • Alarm range: TB 23 to 43 °C

AG (ANESTHESIA GAS)

  • Technique: Infrared absorption
  • Warm-up time
    • Iso accuracy mode: ≤ 45s
    • Full accuracy mode: ≤ 10min
  • Sample flow rate
    • Adult, pediatric: 120, 150, 200 ml/min
    • Neonate: 70, 90, 120 ml/min
  • Accuracy: ±10 ml/min or ±10%, whichever is greater
  • Measurement range: CO2: 0 to 30%; O2: 0 to 100%; N2 O: 0 to 100%; Des: 0 to 30%; Sev: 0 to 30%; Enf: 0 to 30%; Iso: 0 to 30%; Hal: 0 to 30%; awRR: 2 to 100 rpm;
  • Resolution
    • CO2: 1 mmHg
    • awRR: 1 rpm

Refurbished Mindray cPM 12 Patient Monitor

Soma Tech Intl offers the Mindray cPM 12 Patient Monitor up to 50% below OEM prices with the same service and warranty as new. The Mindray patient monitor is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the cPM 12, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitoring equipment. If necessary, parts are replaced to make sure that all aspects of the Mindray cPM 12 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Mindray monitor is working like new it undergoes a special cosmetic restoration process. The cPM 12 Patient Monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Mindray cPM 12 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Mindray device contact Soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Mindray cPM 12. If you or your facility is looking to sell your patient monitor, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Mindray equipment takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
