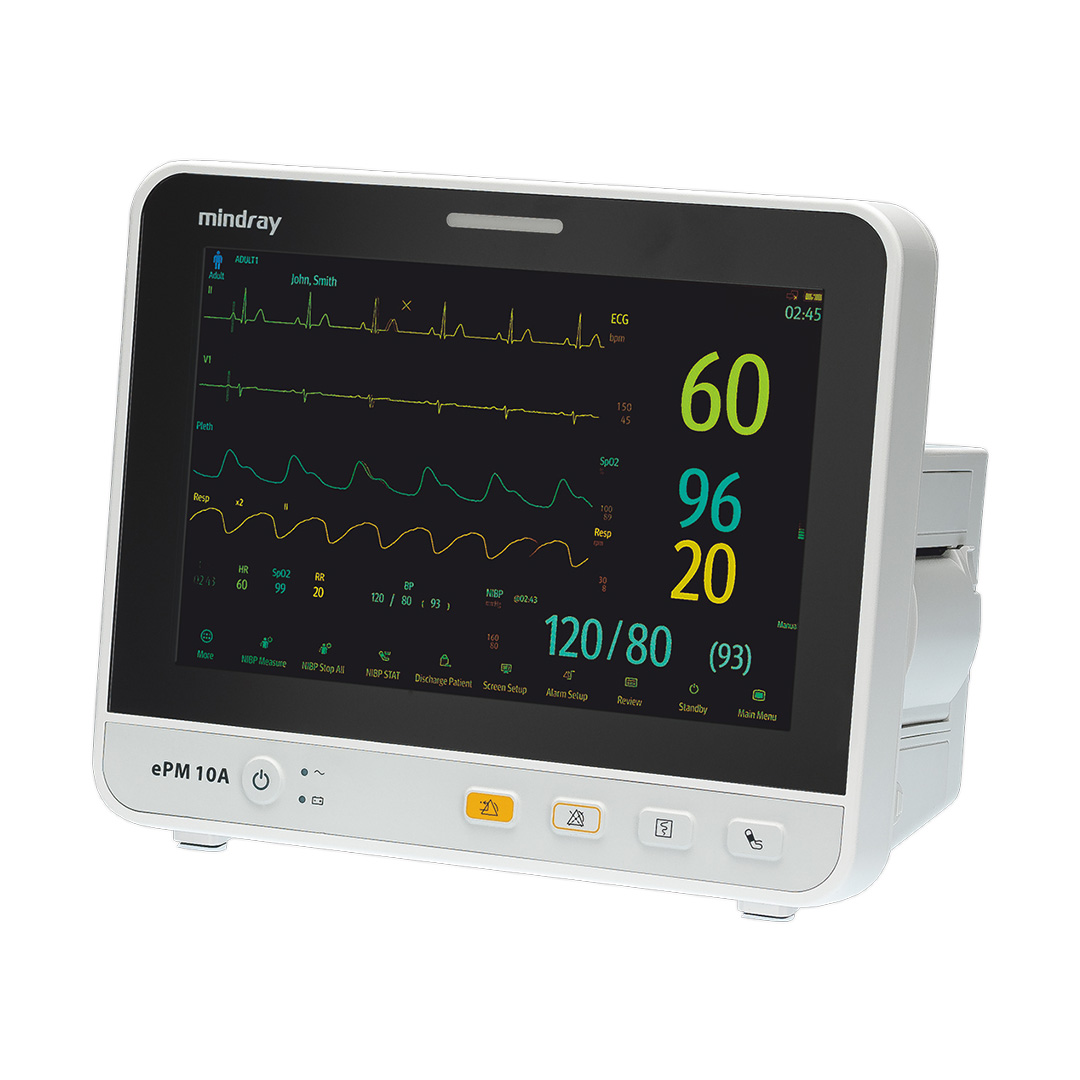

Mindray ePM 10A
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Mindray ePM 10A Features
The Mindray ePM 10A is a 10.1-inch capacitive touchscreen patient monitor for adult, pediatric, and neonatal patients in general wards, emergency departments, and perioperative care settings. It monitors 3- and 5-lead ECG with arrhythmia analysis and Afib detection, Masimo SET SpO₂, NIBP, respiration, and temperature. Optional integrated sidestream CO₂ monitoring is available for respiratory assessment. The monitor stores 48 hours of full disclosure waveforms and up to 120 hours of trend data at 1-minute resolution. It supports HL7 and DIAP protocols for EMR integration.
- 10.1-Inch Capacitive Touchscreen: 1280 x 800 pixel resolution with multi-gesture support; reaches 98% of monitoring functions in 2 touches or less.
- Standard Parameters: 3- and 5-lead ECG, Masimo SET SpO₂, NIBP, impedance respiration, and dual temperature channels.
- Optional CO₂: Integrated sidestream CO₂ module (0–150 mmHg range, ±2 mmHg accuracy 0–40 mmHg) for EtCO₂ and FiCO₂ monitoring.
- Waveform Capacity: Displays up to 8 standard waveforms; supports 48 hours of full disclosure storage.
- Alarm System: Three-priority visual (red/yellow/cyan alarm lamp) and audible alarms compliant with IEC 60601-1-8; adjustable alarm limits with guard limit protection.
- Connectivity: HL7 and DIAP protocol support for EMR and external device integration; standard RJ45 Ethernet, 2 USB ports, VGA output, and multifunctional RS232 connector.
- Construction: IPX1 rated; constructed with industry-standard plastics compatible with medical-grade cleaners; concealed handle for transport.
Display
- Screen Type: 10.1-inch capacitive, multi-point color touchscreen
- Resolution: 1280 x 800 pixels
- Wide Angle View: ≥170°
- Quick Keys: Up to 18 configurable quick keys
Physical Specifications
- Maximum Weight: 4.0 kg (standard configuration with recorder, excluding battery and accessories)
- Dimensions (W × H × D): 271 × 226 × 173 mm
- Weight (Standard Configuration): 3.2 kg (excluding battery, accessories, and recorder)
Environmental Specifications
- Operating Temperature: 0 to 40 °C
- Operating Relative Humidity: 15 to 95% (noncondensing)
- Operating Barometric Pressure: 427.5 to 805.5 mmHg (57 to 107.4 kPa)
- Storage Temperature: -20 to 60 °C
- Storage Relative Humidity: 10 to 95% (noncondensing)
- Storage Barometric Pressure: 120 to 805.5 mmHg (16 to 107.4 kPa)
- Ingress Protection Rating: IPX1 (protected against vertically falling water drops)
Power Supply
- Line Voltage: 100 to 240 VAC (±10%)<
- Input Current: 2.0 to 0.9 A<
- Frequency: 50/60 Hz (±3 Hz)
- Battery Type: Rechargeable lithium-ion battery (10.95 V, 5200 mAh)<
- Battery Runtime: ≥4 hours (with new fully-charged battery, 5-lead ECG and SpO₂ connected, auto NIBP at 15-minute intervals, brightness set to 1)
- Battery Charge Time: ≤5 hours to 90% (monitor off); ≤10 hours to 90% (monitor on)
Recorder Specifications
- Method: Thermal dot array
- Horizontal Resolution: 16 dots/mm (25 mm/s paper speed)
- Vertical Resolution: 8 dots/mm
- Paper Width: 50 mm ±1 mm
- Paper Length: 20 m
- Paper Speed:< 25 mm/s, 50 mm/s (±5% accuracy)
- Waveform Channels: Maximum of 3
Monitor Interface Specifications
- AC Power Input: 1
- Network Connector: 1, standard RJ45 connector, 100 Base-TX, IEEE 802.3
- USB Connectors: 2, USB 2.0
- Multifunctional Connector: 1 (outputs analog ECG, defibrillator synchronization signals, RS232 communication
Refurbished Mindray ePM 10A Patient Monitor
Soma Tech Intl offers the Mindray ePM 10A Patient Monitor up to 50% below OEM prices with the same service and warranty as new. The Mindray ePM 10A is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ePM 10A, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to ensure that all aspects of the ePM 10A meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the patient monitor is functioning like new, it undergoes a specialized cosmetic restoration. The ePM 10A is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the ePM 10A is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished patient monitor, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase patient monitors. If you or your facility are looking to sell your ePM 10A, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
