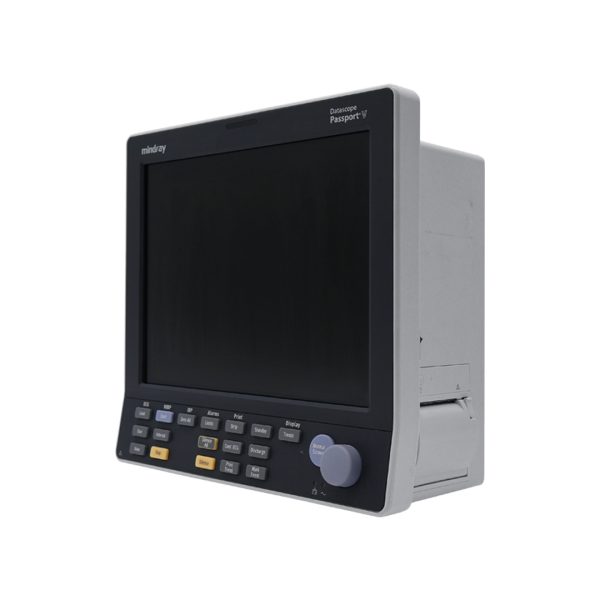

Mindray Datascope Passport V

Quotes in less than 24 hours Download Specifications

Mindray Datascope Passport V Features

Passport V is Mindray’s latest addition to a long line of portable patient monitors designed to meet the needs of caregivers in a range of clinical areas. Passport V is built on a solid foundation of experience and knowledge. It follows a proven approach to the acquisition and presentation of patient data, thereby delivering impressive reliability and performance. Like other products in its line, Passport V utilizes a straightforward, familiar interface so that the user’s experience is a positive one. It delivers just the right combination of simplicity and sophistication, offering a comprehensive feature set in an uncomplicated, easy-to-learn manner.

Beyond that, this clever new monitor delivers just as much flexibility as you’ve come to rely on with our other patient monitors. Passport V is available in a variety of versions, depending on your capability and technology preferences. With a broad range of options, it is well-suited for most hospital departments.

Enhanced capability, more optional features, and extraordinary value make Passport V a compelling alternative for any healthcare environment requiring continuous physiological monitoring.

  • The large 12.1″ display is highly visible from most vantage points. And you’re sure to appreciate the auto-configuration feature that enables the display layout to automatically reconfigure as patient cables are added and removed.
  • Passport V offers ECG, NIBP, temperature, respiration, and Masimo SET® motion-tolerant SpO2 as its standard configuration, along with a variety of optional parameters and features.
  • 96 hours of patient data is provided in a list or graphic trend format so you can easily review your patient’s history. For simple and efficient documentation, you can also print patient data to a laser printer.
  • Comprehensive calculation packages including both IV drug and hemodynamic data allow for quick and automated calculations. Titration tables and calculations can be printed to the internal recorder or a networked laser printer to satisfy long-term documentation needs.
  • Remote View mode with 8-bed alarm notification enables clinicians to monitor multiple patients without leaving the bedside.
  • The innovative quick-release mount makes transport a bit easier. Remove the monitor from its wall mount or rolling stand using the one-touch mechanism and you’re ready for transport. No need to disconnect patient cables.

Mindray Datascope Passport V Specifications


  • Display Type: Color, anti-glare TFT display.
  • Size: 12.1″ (246 x 184.4 mm.)
  • Resolution: SVGA 800 × 600 pixels.
  • Waveforms: 3 to 8.

ECG ( 3 and 5-Lead)

  • Leads: I, II, III, aVR, aVL, aVF, and V.
  • Cable Detection: Automatic Detection of 3 or 5-lead Sets.
  • Display Sensitivity: 1.25, 2.5, 5, 10, 20, 40 mm/mV.
  • ECG Signal Range: +/- 8 mV (peak-to-peak value.)
  • Calibration Signal: 1 mV (peak-to-peak value.)

Frequency Response to Screen

  • Surgical Mode: From 1 to 20 Hz.
  • Monitor Mode: From 0.5 to 40 Hz.
  • ST Mode: From 0.05 to 40 Hz.
  • Diagnostic Mode: From 0.05 to 150 Hz.
  • Defibrillation Protection: Withstand 360 Joule discharged current as per IEC 60601-2-27, 51.101.1.
  • Baseline Recovery Time: <5 s after defibrillation (in monitor and surgical mode.)
  • Defib. Synchronous Pulse: The time interval between the peaks of R-waves to the start of synchronous pulses is ≤35 ms.

ECG Analog Output

  • Delay: 25 ms max.
  • Sensitivity: 1 V/mV of input ±10%.

Heart Rate

  • Range: 15–300 bpm adult, 15–350 bpm pediatric, 15–350 bpm neonatal.
  • Accuracy: ±3 bpm or 3% at 30–250 bpm whichever is greater ±5% at 251–350 bpm, the greater of.
  • Pacer Pulse Rejection: Rejects pulses of amplitude between ±2 mV to ±700 mV and duration 0.1 ms to 2 ms with no tail.
  • Tall T Waves Rejection: Rejects all T-Waves of amplitude less than 1.2 mV, QRS 100 ms, QT interval of 350 ms, duration 180 ms.

Refurbished Mindray Datascope Passport V

Soma Tech Intl offers Refurbished Mindray Passport V up to 50% below OEM prices with the same service and warranty as new. The Datascope Passport V is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the patient Monitor is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Mindray Passport V Patient Monitor. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the patient Monitor System is working like new it undergoes a special cosmetic restoration process. The Mindray is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Passport V is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Datascope Passport V Patient Monitor contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a MIndray Datascope Passport V. If you or your facility is looking to sell your Patient Monitor, be sure to contact Soma Technology, Inc. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Datascope Passport V Patient Monitor to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
