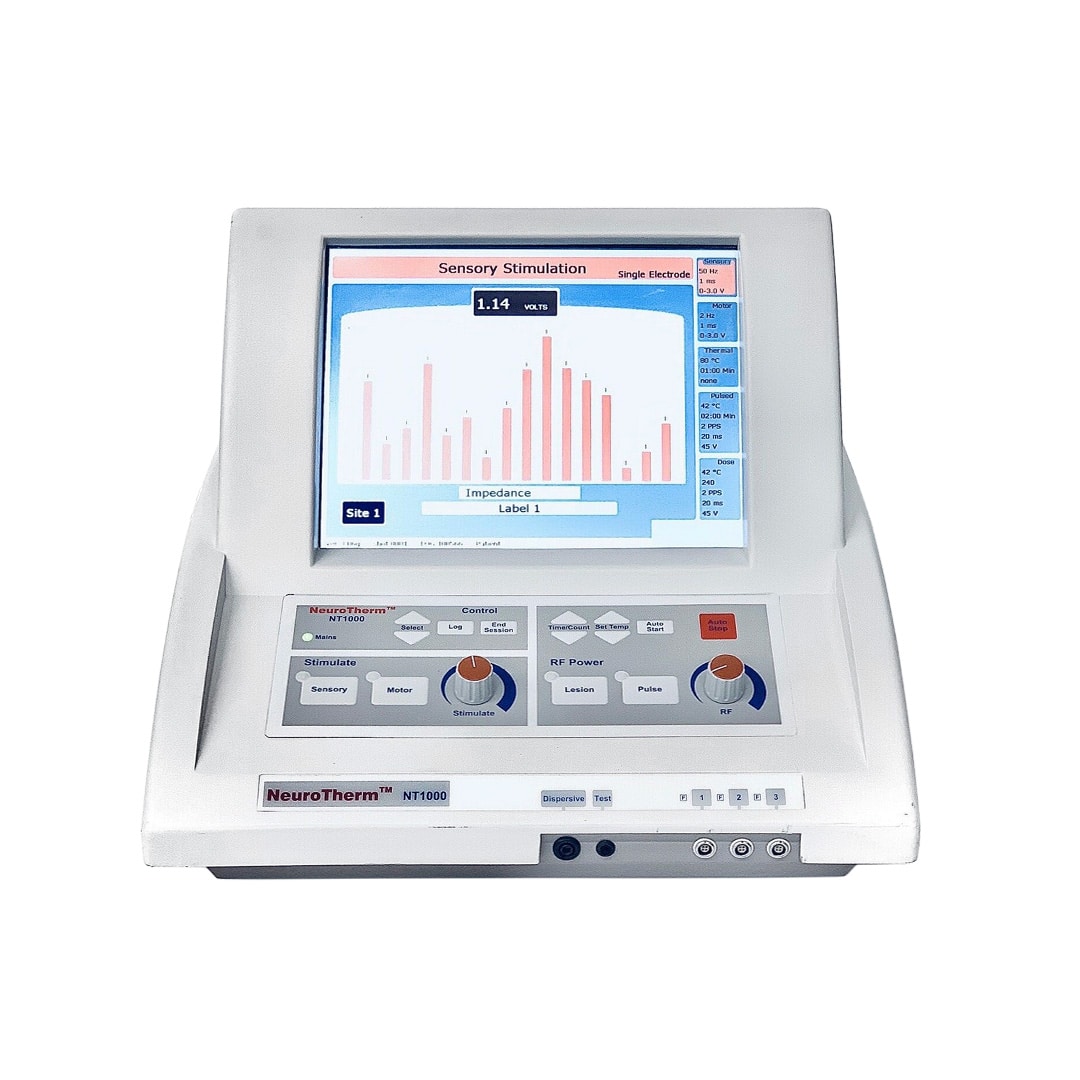

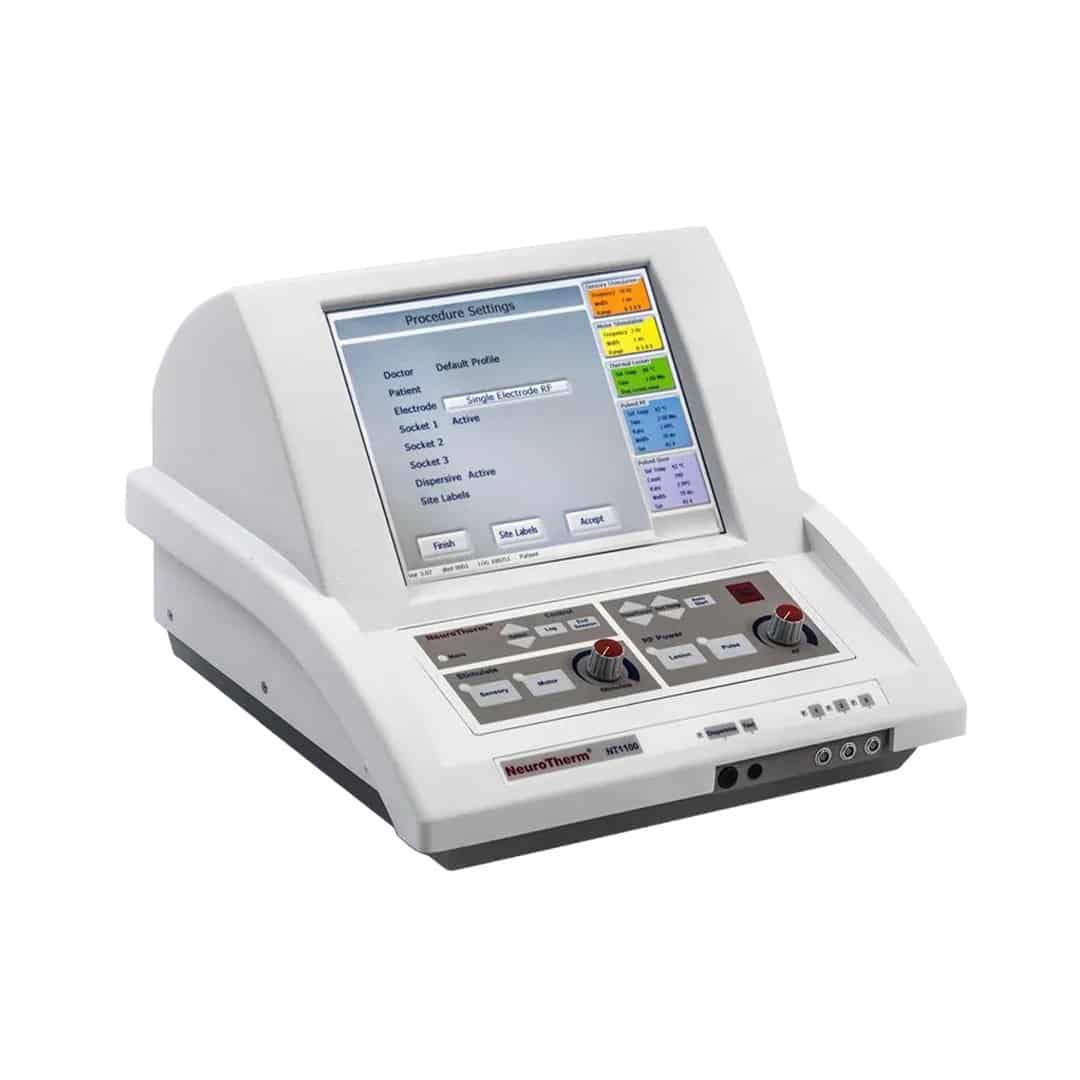

Neurotherm NT1100

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

Neurotherm NT1100 Features

The Neurotherm NT1100 is a radio frequency (RF) lesion generator used for ablation and neuromodulation in chronic pain procedures. It operates through software control and offers several treatment modes to match different clinical approaches. The unit includes a large touchscreen running Windows CE for simple operation and record handling. It is also the only generator that works with Neurotherm’s newest dual and multi-electrode setups for more complex procedures.

  • Multiple Treatment Modes: Offers Thermal Lesion, Pulsed RF, and Pulse Dose options for various pain management techniques.
  • Pulse Dose Function: Sends a set number of full-voltage pulses and pauses automatically if temperature limits are reached.
  • Dual & Multi-Electrode Support: Can run two or three probes in an interlaced pattern to handle several treatment points or create larger treatment fields.
  • Data Handling Tools: Includes built-in acquisition software, USB ports for exporting procedure logs, and an option for a remote mimic screen via CAT5 cable.
  • Sensory & Motor Stimulation: Provides biphasic square wave stimulation (0–5V, 0–10mA) with selectable frequencies from 2–200 Hz and pulse widths from 0.1–1.0 ms for nerve localization.
  • System Monitoring & Safeguards: Shows impedance (50–2000 Ω), temperature (50–90°C), RF voltage (0–99V), and current (0–999mA), with lockouts to prevent accidental activation.
  • Touchscreen Control Panel: Uses a 12.1″ LCD touchscreen with anti-glare coating to view temperature/time curves and manage all functions of the generator.

Neurotherm NT1100 Specifications

Dimensions

  • Width: 15.75 in (400 mm)
  • Height: 11.81 in (300 mm)
  • Depth: 16.34 in (415 mm)
  • Weight: 28 lbs (12.5 kg)

Power

  • Input Voltage: User-selectable 110V 60Hz (USA/Canada) or 230V 50Hz (Europe)
  • Fuse Rating: 2 Amp (110V) / 1 Amp (230V) on live and neutral
  • Power Consumption: 150 Watts
  • Safety Class: Class 2 (Double Insulated, not earth-referenced)

RF Output

  • Frequency: 480 KHz ± 5% Sinusoidal
  • Maximum Power: 30 Watts ± 5% into 200 ohms
  • Output Control: Continuously variable; Auto Mode with temperature ramp-up at 8°C/sec
  • Modes: Thermal Lesion, Pulsed RF, Pulse Dose

Stimulation Output

  • Signal: Biphasic square wave
  • Voltage Range: 0-5V ±3% (Motor), 0-3V ±5% (Sensory Default), 0-0.5V ±10%
  • Current Range: 0-10mA ±5%, 0-6mA ±5%, 0-1mA ±5% (50-2000 ohm load)
  • Pulse Rates: Motor: 2 or 5 Hz; Sensory: 10, 20, 50, 75, 100, 150, 180, 200 Hz
  • Pulse Widths: 0.1, 0.2, 0.5, 1.0 mS

Monitoring & Controls

  • Impedance Measurement: 50-2000 Ω (±5% accuracy) at 53 KHz
  • Temperature Range: 50-90°C for Thermal Lesion; 42-65°C for Pulsed RF
  • Timer Range: 30 seconds to 20 minutes, depending on mode
  • Display: Real-time graphical temperature vs. time curve, numerical readouts for all parameters.

Environmental Conditions

  • Operating: 10°C to 40°C, 10% to 80% Relative Humidity
  • Storage: 10°C to 60°C, 10% to 80% RH, 520-760 mmHg
  • Transport: -10°C to 70°C, 0-95% RH (non-condensing), 140-760 mmHg

Refurbished Neurotherm NT1100 Radio Frequency Generators

Soma Tech Intl offers the Neurotherm NT 1100 Radio Frequency Generators up to 50% below OEM prices with the same service and warranty as new. The NT 1100 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the NT 1100, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on radio frequency generators. If necessary, parts are replaced to ensure that all aspects of the NT 1100 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the NT 1100 is functioning like new, it undergoes a specialized cosmetic restoration. The generator is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the NT 1100 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished radio frequency generator, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.

Soma Tech Intl actively seeks to purchase radio frequency generators. If you or your facility are looking to sell your Neurotherm NT 1100, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
