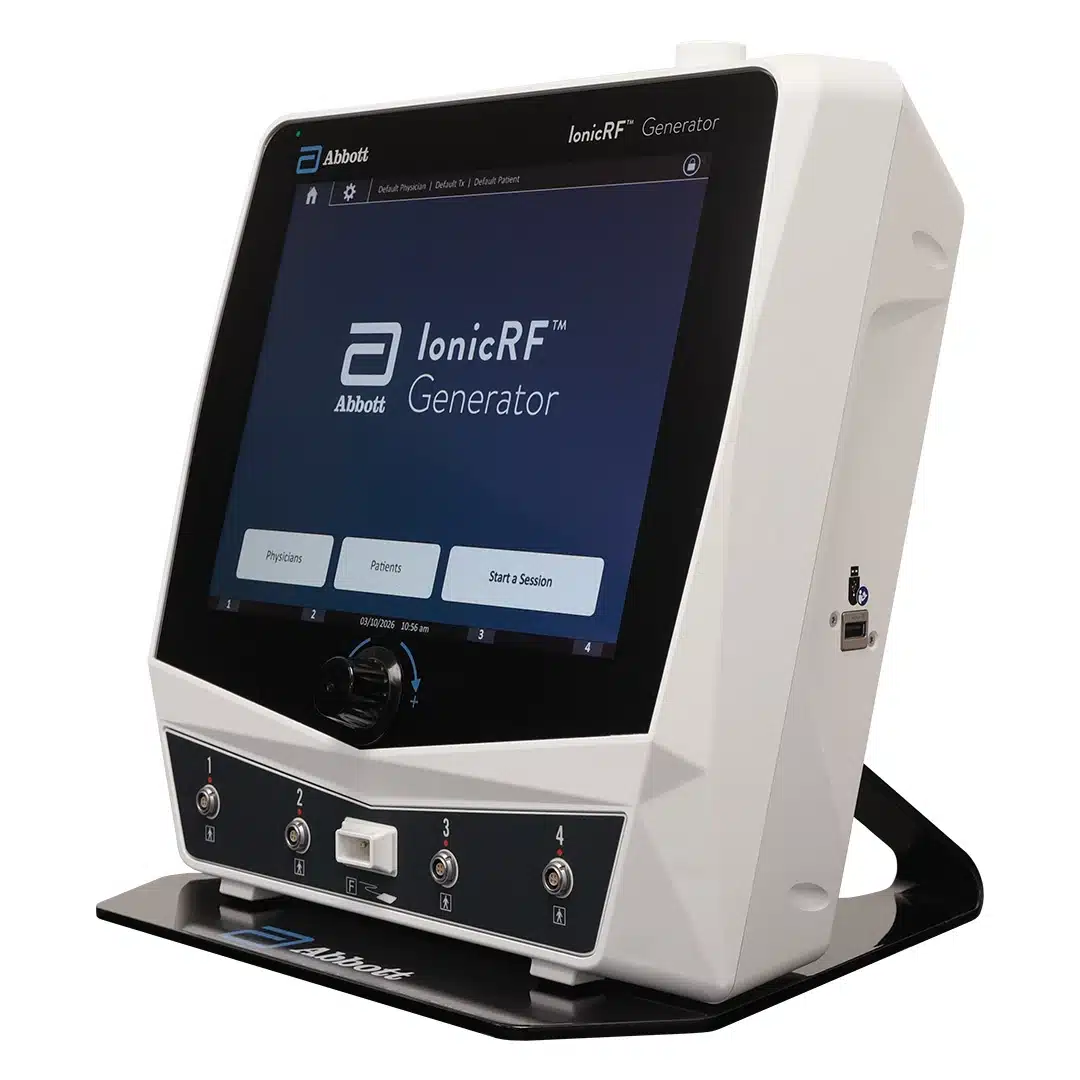

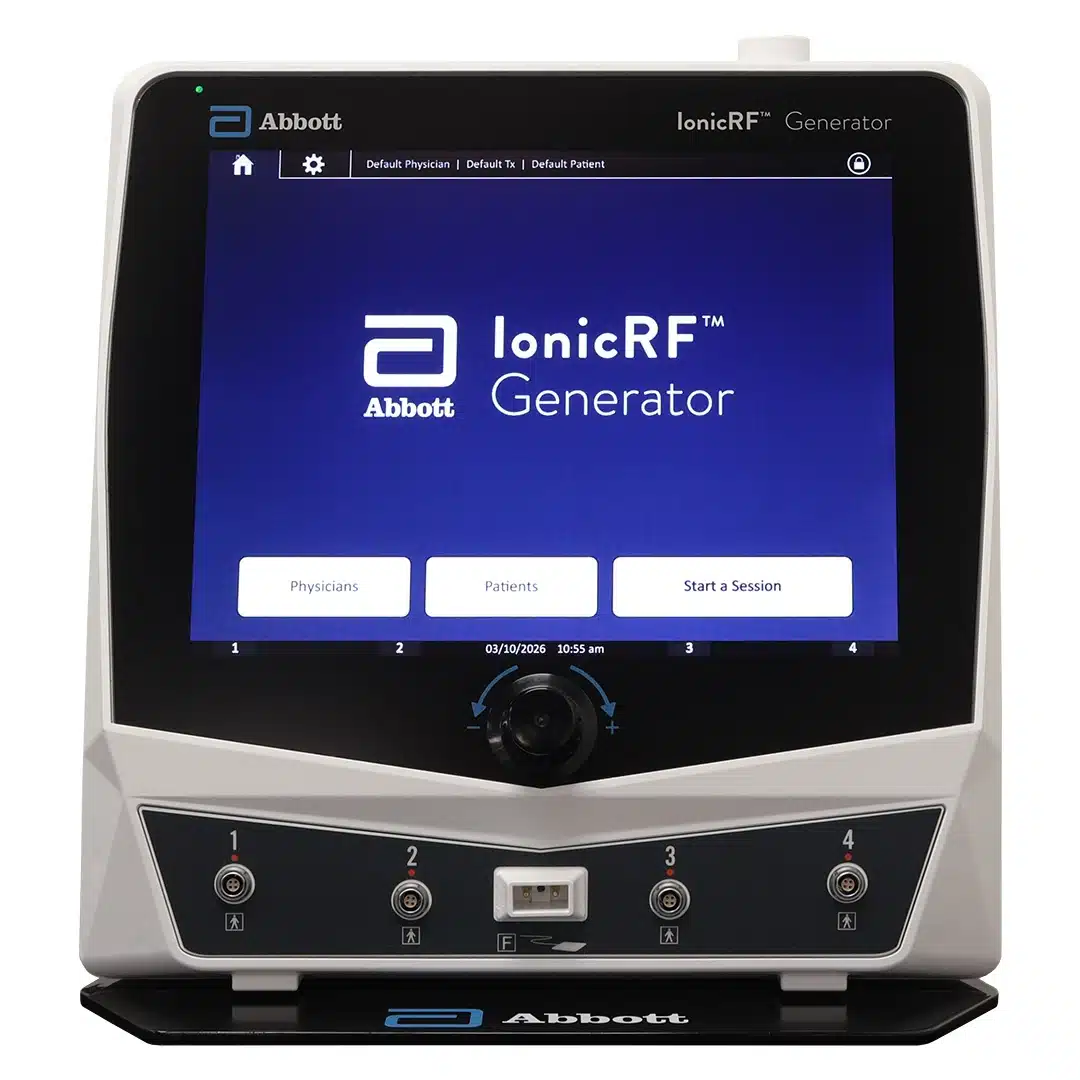

Abbott IonicRF Generator

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

Abbott IonicRF Generator Features

The Abbott IonicRF Generator is a radiofrequency system designed to assist physicians in managing chronic pain through targeted neural tissue lesioning. Used with compatible cannulae and electrodes, the generator delivers controlled RF energy to specific nerves during pain management procedures. The system includes built-in sensory and motor stimulation features that help clinicians confirm accurate electrode placement before treatment begins. Its touchscreen interface provides a clear, user-friendly system while also supporting procedure monitoring and data management. Compact and portable, the generator can be used on a countertop or mounted to a compatible roll stand, making it well suited for pain management and interventional procedure suites.

  • Radiofrequency: Delivers controlled RF energy to targeted nerves.
  • Multiple Modes: Supports lesioning, pulsed RF, and pulsed dose therapies, with the ability to treat multiple electrode sites simultaneously.
  • Sensory and Motor Stimulation: Built-in stimulation functions help clinicians verify proper electrode placement prior to treatment.
  • Touchscreen Controls: Integrated display provides intuitive system operation, procedure monitoring, and data management.
  • Flexible Electrode Compatibility: Works with a range of compatible electrodes, cannulae, and probes, including multi-electrode RF probes designed for specialized procedures.

Abbott IonicRF Generator Specifications

Dimensions

  • Height: 13.9 in (35.3 cm)
  • Width: 12.9 in (32.8 cm)
  • Depth: 11.3 in (32.8 cm)
  • Weight: 16 lb (7.3 kg)

Display

  • Type: LCD
  • Size: 12.1 in (30.7 cm)

Input / Output

  • Ports for Electrode: 4
  • Ports for Grounding Pad: 1
  • USB Ports: 2
  • Equipotential Port: 1

Power

  • Maximum Total Power Output: 50 W; Maximum total power output (The sum of all the RF power entering the patient from all active electrodes) is hardware and wofeware limited to 50 W total. The power is distributed as necessary to raise the electrodes to the desired set temperature.
  • Maximum Total Current Output: 700 mA
  • Measuring Frequency: 460 kHz ± 3%
  • Impedance
    • Stimulation: 50‑1500 Ω
    • Ablation: 47‑1500 Ω (prior to RF output) and 31‑1500 Ω (during RF output)
  • Generator Temperature Accuracy: ±2°C
  • System Temperature Accuracy: ±7°C

Sensory Stimulation

  • Electrode: Up to 4 (only one can be active at a time); monopolar
  • Maximum Voltage: 0.5‑5 V (default 3 V)
  • Frequency: 10, 20, 50, 75, 100, 150, 180, 200 Hz (default 50 Hz)
  • Pulse Width: 0.1, 0.2, 0.5, and 1 ms (default 1 ms)
  • Voltage Step Size: 0.01, 0.10 (default 0.1)
  • Output Voltage and Accuracy: 0‑5 V; ± 5% for voltage ≥1V and ± 50 mV for voltage <1V
  • Output Frequency and Accuracy: 10‑200 Hz ± 3%
  • Output Pulse Width and Accuracy: 0.10‑1 ms ± 15% for impedance >100 Ω and ± 25% for impedance ≤100 Ω

Motor stimulation

  • Electrode: Up to 4 (only one can be active at a time); monopolar
  • Maximum Voltage: 0.5‑5 V (default 3 V)
  • Frequency: 2 or 5 Hz (default 2 Hz)
  • Pulse Width: 0.1, 0.2, 0.5, and 1 ms (default 1 ms)
  • Voltage Step Size: 0.01, 0.10 (default 0.1)
  • Output Voltage and Accuracy: 0‑5 V; ± 5% for voltage ≥1V and ± 50 mV for voltage <1V
  • Output Frequency and Accuracy: 2‑5 Hz ± 3%
  • Output Pulse Width and Accuracy: 0.10‑1 ms ± 15% for impedance >100 Ω and ± 25% for impedance ≤100 Ω

Lesion mode

  • Electrode: Up to 4; monopolar and bipolar
  • RF Waveform: Sinusoidal
  • Target Temperature: 50°‑90°C (default 80°C)
  • Lesion/dwell Time: 1‑600 seconds (default 60 seconds)
  • Stagger: Off, On: 0‑10 seconds (default Off)
  • Output Voltage and Accuracy: 0‑141 VRMS ± 5%

Pulsed RF Mode

  • Electrode: Up to 4; monopolar and/or bipolar
  • RF Waveform: Sinusoidal
  • Maximum Temperature: 42°‑49°C (default 42°C)
  • Target Voltage: 30‑75 VRMS (default 45 VRMS)
  • Lesion Time: 1‑1800 seconds (default 120 seconds)
  • Pulse Width: 5, 8, 20, or 50 ms (default 20 ms)
  • Frequency: 1, 2, 5, or 10 Hz (default 2 Hz)
  • Output Voltage and Accuracy: 30‑75 V ± 15%
  • Maximum Output Voltage Peak Value: ≤230 Vpk
  • Output Frequency and Accuracy: 1, 2, 5, 10 Hz ± 5%
  • Output Pulse Width and Accuracy: 5, 8, 20, or 50 ms ± 5%

Pulsed Dose Mode

  • Electrode: Up to 4; monopolar
  • RF Waveform: Sinusoidal
  • Maximum Temperature: 42°‑49°C (default 42°C)
  • Target Voltage: 30‑75 VRMS (default 45 VRMS)
  • Dose Count (doses): 120‑960 (default 240)
  • Pulse Width: 5, 8, 20, or 50 ms (default 20 ms)
  • Frequency: 1, 2, 5, or 10 Hz (default 2 Hz)
  • Output Voltage and Accuracy: 30‑75 V ± 15%
  • Maximum Output Voltage Peak Value: ≤230 Vpk
  • Output Frequency and Accuracy: 1, 2, 5, 10 Hz ± 5%
  • Output Pulse Width and Accuracy: 5, 8, 20, or 50 ms ± 5%

Refurbished Abbott IonicRF Generator

Soma Tech Intl offers the Abbott IonicRF Generator up to 50% below OEM prices, providing the same service and warranty as a new. This Abbott radiofrequency generator undergoes both technical and cosmetic refurbishment to ensure it performs and appears as if it were new. During the refurbishment of the IonicRF Generator, our in-house biomedical engineers, who are highly trained and certified to work on radiofrequency generators and pain management systems, carefully inspect and test the unit. If necessary, components are replaced to ensure that all aspects of the Abbott IonicRF radiofrequency generator meet the original manufacturer’s engineering specifications. This helps ensure the generator performs as intended for RF lesioning procedures and pain management applications.

Once the IonicRF Generator is fully operational, it proceeds through a detailed cosmetic restoration process. The Abbott RF generator is thoroughly cleaned, minor cosmetic imperfections such as scratches or dents are addressed, surfaces are refinished when necessary, and decals are replaced if required. After completing this refurbishment process, the IonicRF Generator both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Abbott IonicRF Generator is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and performance.

Soma Tech Intl is actively seeking to purchase Abbott IonicRF Generators and similar radiofrequency pain management systems. If your facility is interested in selling an IonicRF Generator or other Abbott pain management equipment, contact Soma Tech Intl. Our dedicated purchasing department will guide you through the entire process. Selling your used or pre-owned Abbott equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have an Abbott IonicRF Generator or other RF generators you would like to sell, send us a message.
