Zimmer ATS 4000

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Zimmer ATS 4000 Features

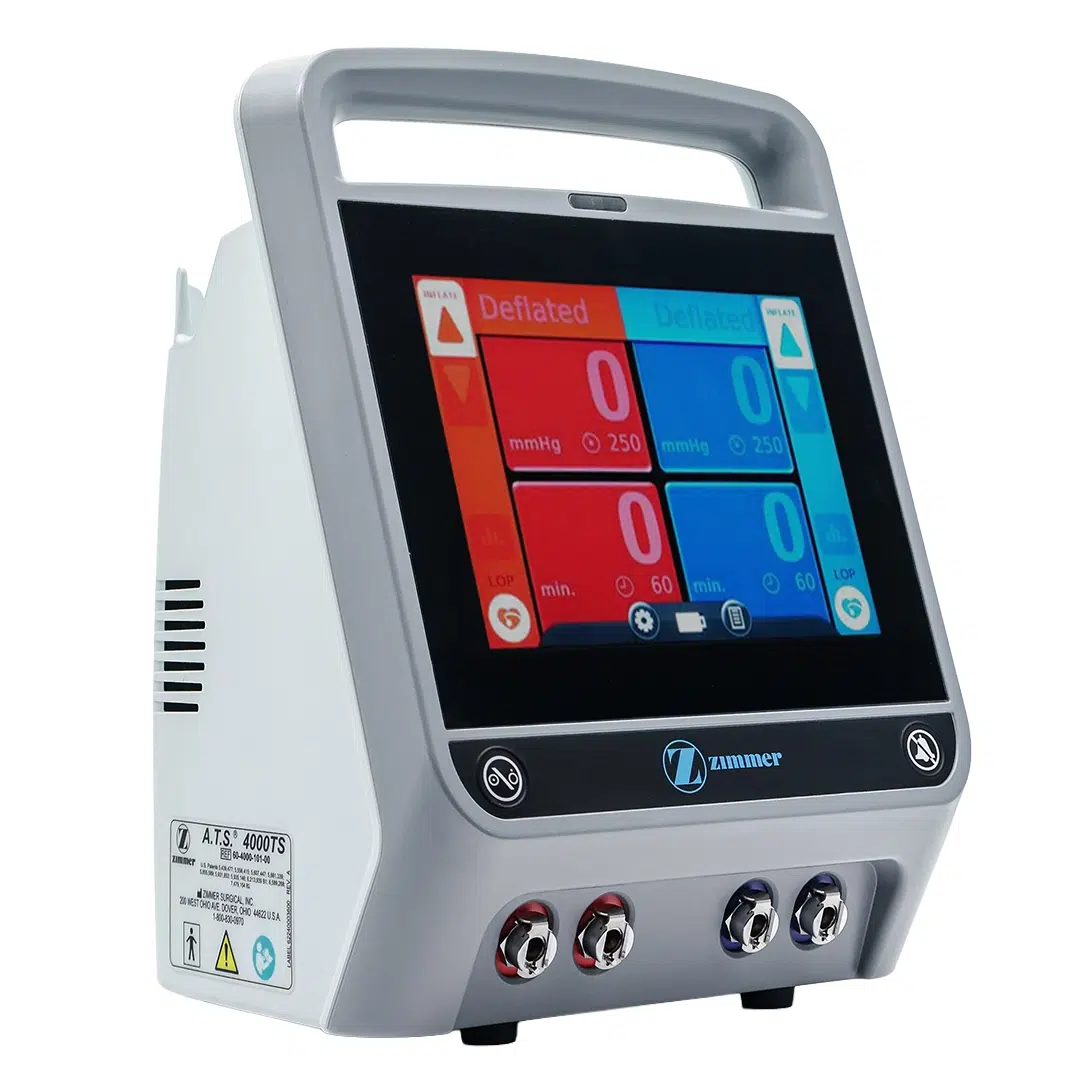

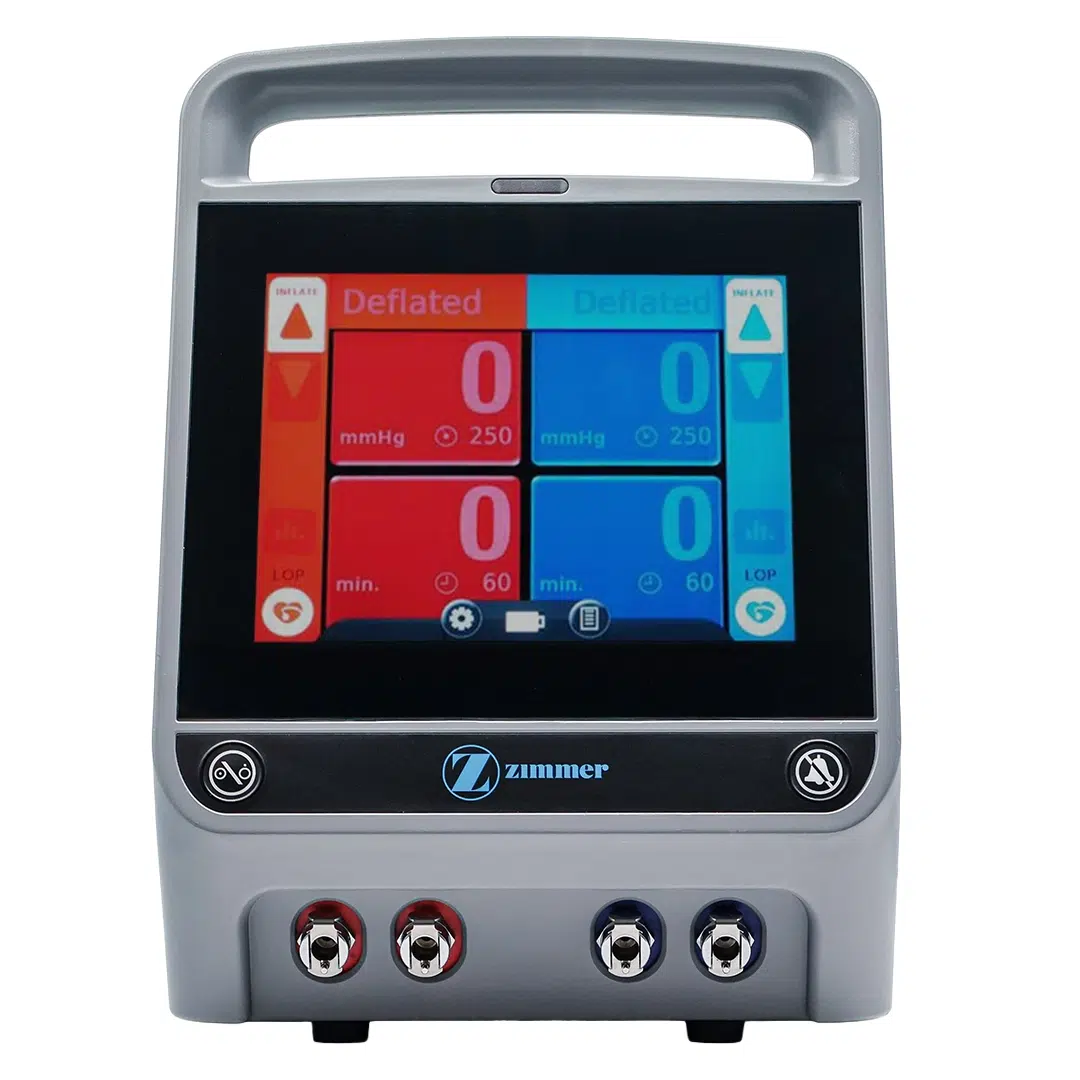

The Zimmer ATS 4000 is a tourniquet system that is used to temporarily occlude blood flow in the patient’s extremities during a surgical procedure. The ATS 4000 was designed to offer individual levels of pressure for each patient. Delivering a variety of pressures at specific times and for specific limbs. The Zimmer ATS 4000 offers a dual cuff that can prevent accidental cuff release with an automatic IVRA Cuff Lock – making sure deflating is intended on the second cuff. Zimmer offers lower tourniquet pressure to help minimize the risk of nerve-related injuries and less post-op pain.

  • Personalized pressure technology
  • Touchscreen user interface
  • 8.4″ Color Display
  • Self-check Calibration: automatically checks the accuracy of the machine calibration each time the unit is powered on. This saves setup time.
  • Cuff Alert: alerts user of cuff status when an attempt is made to set the machine to standby.
  • Cuff Lockout: feature prompts the user to confirm the deflation command during bilateral or IVRA procedures in order to reduce complications due to sudden cuff deflation.
  • Six-hour Lithium Ion Battery Backup: maintains pressure if AC power is temporarily lost.
  • Color-coded cuffs: from 8 inches to 42 inches accommodate virtually all patients and limbs.
  • Carrying Handle: makes the system easy to transport, and includes pull-out hangers for storage of cuffs and hoses. The lightweight, portable unit can be mounted on an IV pole or placed on a table.
  • Innovative Limb Occlusion Pressure (LOP) feature
  • Uses ambient air
  • Uses electronic and microprocessor-regulated pressure
  • Dual Port, Dual Cuff system: for simultaneous use of two dual port cuffs each offering independent pressure and time regulation
  • Facilitates dual port, dual bladder cuff usage for IVRA/Bier Block procedures
  • Uses dedicated ports for supplying and measuring pressure which allows for fast and precise pressure regulations
  • Visual and audible alarms are activated when an unsafe condition is detected

Limb Occlusion Pressure (LOP)

  • Technology that’s designed to calculate a patient’s pressure at an individual level and apply a minimum amount of tourniquet pressure needed to occlude a limb at a specific time for a specific patient. Lower tourniquet cuff pressure reduces postoperative wound complications after TKA.

Touch Screen

  • An 8.4” color touchscreen that increases visibility to read across operating rooms.
  • Other great features include a 6 hour lithium Ion battery and dual ports

Advanced Leak Detection

  • Technology that monitors a cuff for minor variations intraoperatively with the intention of reporting potential cuff/hose leaks.

Pre-op Cuff Test

  • Technology that allows for bedside testing of the cuff pre-operatively to ensure proper function

Zimmer ATS 4000 Specifications

Dimensions

  • Height:13.1 in (33.3 cm)
  • Width: 9.3 in (23.6 cm)
  • Depth: 10.5 in (26.7 cm)
  • weight: 13.2 lbs (6kg)

Timer

  • Time Alarm Set Range: 1 – 240 minutes; 1 minute increments
  • Timer Accuracy: 0.25% of elapsed time

Power

  • Line Voltage Range: 100 – 240 VAC, 50/60 Hz, Auto-Switching
  • Line Current: 1000 mA RMS @ 120 VAC
  • Input Power: 53 Watts Typical
  • Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
  • Power Plug: Hospital grade, 3 prongs straight blade, 15 Amp

Pressure

  • Cuff Pressure Range: 50 – 400 mmHg, 1 mmHg increments
  • Extended Cuff Pressure Range: 401 – 600 mmHg, 1 mmHg increments. A yellow tile will appear requesting confirmation to exceed 400 mmHg pressure
  • Pressure Accuracy: ±3 mmHg (50 – 600 mmHg)
  • Pressure Regulation: ±4 mmHg of set point (10 second average under non-transient conditions without external leaks)
  • Maximum Pressures: 400 mmHg per cuff | 600 mmHg per cuff in extended range

Battery

  • Battery Type: Rechargeable, 14.4 VDC, Li-Ion, 4.3 Amp hours
  • Battery Discharge Time: The unit will operate on battery power for 360 minutes minimum with fully charged batteries
  • Battery Recharge Time: 10 hours (Maximum). The unit should be plugged in 10 hours before initial use.

Refurbished Zimmer ATS 4000 Tourniquets

Soma Tech Intl offers the Zimmer ATS 4000 up to 50% below OEM prices with the same service and warranty as new. The A.T.S. 4000 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Zimmer tourniquet, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on tourniquets. If necessary, parts are replaced to make sure that all aspects of the Zimmer tourniquets are back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Zimmer 4000 is working like new it undergoes a special cosmetic restoration process. The ATS 4000 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Zimmer ATS, 4000 tourniquet is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Zimmer 4000 Tourniquet contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Zimmer ATS 4000 tourniquet systems If you or your facility are looking to sell your Zimmer Tourniquets, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Zimmer tourniquets takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
