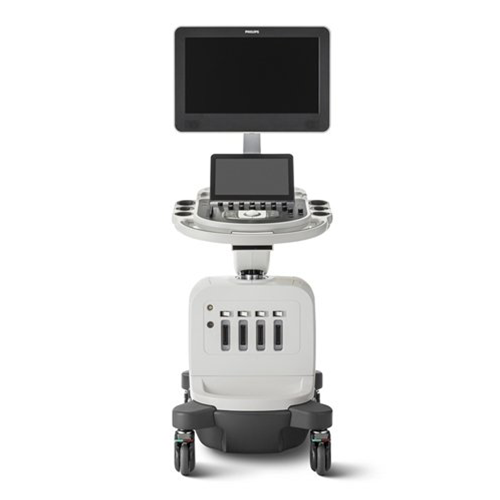

Philips Affiniti 50

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips Affiniti 50 Features

The Philips Affiniti 50 is an ultrasound system that can deliver exceptional image quality. The Affiniti 50 has the same features as the Affiniti 70 and many of the features from the Epiq series of Philips Ultrasounds. The only difference between the two is that the Affinity 50 does not have a single crystal probe or offer Shearwave elastography. The Philips ultrasound offers ultrasonic imaging for abdominal, vascular, MSK, Urology, Cardiology, Interventional, Small parts, Breast, Obstetrics, Gynecology, and Pediatrics. The system can provide exceptional 3D imaging and has advanced tools like TruVue that allow the light and shadow in the images to be adjusted to help render detailed 3D imaging. The ultrasound comes with a 21-inch monitor, a 12-inch touchscreen display, and four active transducer ports. It is comparable with over ten different transducers and probes.

  • SonoCT Compound Imaging
  • XRES Speckle Reduction Imaging
  • AutoSCAN
  • AutoDoppler
  • Contrast-Enhanced Ultrasound
  • AIUS Anatomical Intelligence Ultrasound
  • Stress Echo
  • Elastography
  • Pediatric Cardiology
  • Sleep Mode for easy transport from room to room
  • 4 transducer ports
  • Automated IMT Calcs
  • Automated 2D Cardiac Quantification
  • Automated Cardiac Motion Quantification
  • 4D obstetric “babyface” imaging

Philips Affiniti 50 Specifications


  • Height: Maximum: 64 in (1626 mm)
  • Height: Minimum 56 in (1422 mm)
  • Width: 22.5 in (572 mm)
  • Depth: 38.7 in (983 mm)
  • Weight: 184.4 lbs (83.6 kg)

Control Panel

  • Monitor Size: 21.5 In (54.6 cm)
  • Degrees of Movement: 180°
  • Height Adjustment: 8 In (20.3 cm)


  • Nominal input voltage: 100-240 VAC, frequency 50/60 Hz
  • Power consumption maximum: 289 VA depending on system configuration


  • Video and Output Options: HDMI, Ethernet, USB, Wireless, Audio, Composite Video
  • Monitor resolution: 1920 x 1080
  • Export Options: DICOM, USB, JPG, AVI
  • DICOM Options: Store, Print, MPPS, Query/Retrieve, Structured Reports, Worklist
  • Harddrive: 512 GB
  • Max Cine Memory: 2,200 Frames
  • Maximum Depth: 30
  • Max Frame Rate (FPS): 1400

Refurbished The Philips Affiniti 50 Ultrasound

Soma Tech Intl offers the Philips Affiniti 50 Ultrasound up to 50% below OEM prices with the same service and warranty as new. The Philips Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Affiniti 50 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips ultrasound is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips Affiniti Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Philips ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
