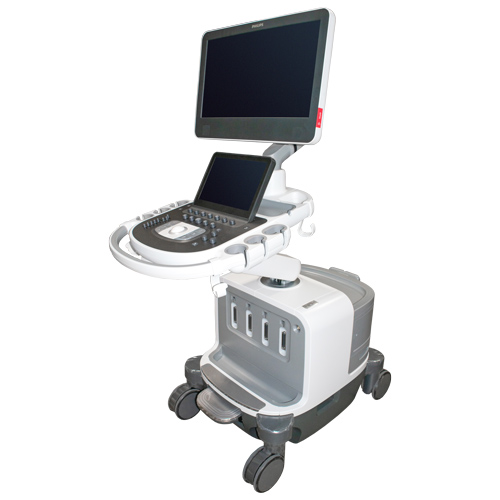

Philips EPIQ CVx

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips EPIQ CVx Features

The Philips Epiq Cvx is a cardiac ultrasound system. The Philips CVx is built on the same platform as the other Epiq ultrasounds, the Epiq 5 and the Epiq 7. The difference between the previous version of the Epiq and the Cvx is the OLED display that can provide clearer imaging. The ultrasound system also features a faster processor and a touchscreen user interface. The CVx ultrasound can produce diagnostic images for cardiac, abdominal, musculoskeletal, urology, transvaginal, and small organs. The Epiq Ultrasound system offers technologies that can reduce noise in the images to improve the quality and detail of the image. Adjustments to light and shadow can be made while viewing 3D and 4D images. The CVX includes the Philips TrueVue 3D Ultrasonic imaging, which can render a 3D anatomical structure of a fetus or organ.

  • 21-inch OLED display with the ability to rotate 180 degrees
  • 4 probe connectors and holding ports
  • Wireless DICOM Connectivity
  • Photorealistic imaging with adjustable light source
  • Auto Doppler reduces time spent on color box positioning and sample volume placement.
  • Fingertip control touchscreen user-interface. Allows users to pinch, zoom, and rotate 3D data set.

Philips EPIQ CVx Specifications


  • Height: 57.5 – 67.5” (146 – 171.5 cm)
  • Width: 23.8” (60.6 cm)
  • Depth: 43” (109.2 cm)
  • Weight: 229.9 lbs (104.3 kg)

Imaging Modes

  • 2D mode
  • M mode
  • Color Doppler
  • Color Power Angio (CPA)
  • Spectral Doppler
  • Auto Color and Auto Doppler
  • Tissue Doppler Imaging
  • Contrast Imaging
  • Duplex mode (Simultaneous 2D and Doppler)
  • Triplex mode (Simultaneous 2D, Doppler, and Color or CPA)

Supported Transducer Types

  • Convex Array
  • Phased Array
  • Linear Array 2D
  • Linear Array 4D
  • Micro ConvexArray
  • Intraoperative Array
  • Pedoff (non-imaging)
  • TEE Probe (Live 3D)
  • TEE Probe (2D)

Clinical Applications

  • Echocardiography (adult, pediatric, fetal)
  • Vascular (peripheral, cerebrovascular, temporal TCD)
  • Transesophageal Echocardiography (adult, pediatric)
  • Stress Echocardiography
  • Epicardial Echocardiography


  • Monitor
    • Main Unit with 21’5 inch wide format high definition
    • Extended viewing angle >178° (horizontal and vertical)
    • Response time <14 ms
    • Virtually flicker-free technology that reduces eyestrain
    • Mounted on a fully articulating extension arm
    • High contrast ratio >1000:1
  • Control Panel
    • Full-color 12-inch capacitive touchscreen
    • Complete with swipe, zoom, pan, and rotate technologies

Console Design

  • Hard Drive 1TB plus 240 GB SSD
  • 8 slide pot control adjustment of TGC curve
  • On-board control panel touchscreen
  • Unique easy-clip cable management solution
  • Up and down 8 in/20.3 cm
  • Rotates 180o from center

Standard Features

  • XRES
  • SonoCT
  • THI (Tissue Harmonic Imaging)
  • Cine
  • Live Compare
  • Tissue Aberration Correction (TAC)
  • HighQ (automatic Doppler Analysis)
  • iSCAN intelligent scanning
  • AutoSCAN (real time frame by frame TGC optimization)
  • iOPTIMIZE intelligent optimization
  • Autoflow tracking

Refurbished of The Philips Epiq CVx Ultrasound

Soma Tech Intl offers the Philips Epiq Cvx Ultrasound up to 50% below OEM prices with the same service and warranty as new. The Philips Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Epiq CVx are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips ultrasound is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished ultrasounds contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Philips Ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
