Sonosite S-Nerve

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Sonosite S-Nerve Portable Features

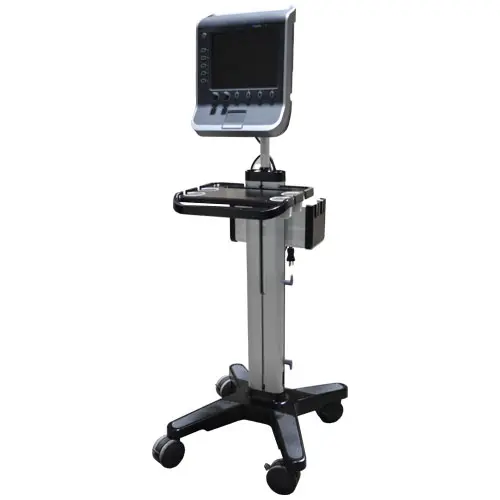

The Sonosite S-Nerve is a portable point-of-care ultrasound system. The S-Nerve ultrasound system offers adaptive imaging quality that can reduce speckle noise to improve and optimize the most minor structures in the images. The system can either be used as a wall-mounted system or as an ultrasound system on a stand. The system can be customizable for your facilities’ needs. the ultrasound provides ultrasonic imaging for cardiac, vascular, obstetrics, Gynecology, and Pain Management applications. The Sonosite S series includes the S-Cath for Radiology, S-Fast for emergency medicine, S-ICU for intensive care, S-MSK for pathology, the S-Neve for an anesthesiologist, and the S-Women’s health for ultrasonic images for Women’s health. The S-Nerve is a 10.4-inch LCD, flat-screen monitor that can provide 256 shades of gray.

  • 2D/Tissue Harmonic Imaging/M-Mode
  • Color Doppeler, Color Power Doppler
  • PW, PW Tissue Doppler, and CW
  • SonoADAPT Tissue Optimization
  • SonoHD Imaging
  • SonoMB Mulot-beam Imaging
  • Advanced Needle Visualization (SonoMBe Imaging)
  • Seamlessly archive and store images with DICOM 3.0 using Ethernet or wireless capabilities
  • Crisp and clear imaging, featuring SonoHD Imaging Technology – with 16x the processing power of our previous generation
  • Mount your system at the point of care for instant ultrasound access and a zero footprint or use it on a highly maneuverable S Series
    V-Universal Stand
  • Optimize your target with just two controls – one for depth, one for gain
  • Transducer cable length of up to six feet

Sonosite S-Nerve Portable Ultrasound Specifications


  • Height: 15.1 in (38.4 cm)
  • Width: 11.6 in (29.5 cm)
  • Depth: 6.1 in (15.5 cm)
  • Weight: 10.4 in (26.4 cm)

Display Dimensions

  • Length: 8.4 in (21.34 cm)
  • Height: 6.3in (16 cm)
  • Diagonal: 10.4 in ( 26.4 cm)

Imaging Mode

  • 2D ( 256 gray shades)
  • Color powerDoppler (CDP) (256 colors)
  • Color Doppler (Color) (256 Colors)

Temperature, Pressure & Humidity Limits

  • Operating Limits: System
    • 10–40°C (50–104°F), 15–95% R.H.
    • 700 to 1060hPa (0.7 to 1.05 ATM)
  • Operating Limits: Battery
    • 10–40°C (50–104°F), 15–95% R.H.
    • 700 to 1060hPa (0.7 to 1.05 ATM)
  • Operating Limits: Transducer
    • 10–40°C (50–104°F), 15–95% R.H.
  • Shipping/Storage Limits: System without Battery
    • -35–65°C (-31–149°F), 15–95% R.H.
    • 500 to 1060hPa (0.5 to 1.05 ATM)
  • Shipping/Storage Limits: Battery
    • -20–60°C (-4–140°F), 0–95% R.H.
    • 500 to 1060hPa (0.5 to 1.05 ATM)


  • Power Supply Input: 100-240 VAC, 50/60 Hz, 2.0 A Max @ 100 VAC
  • Power Supply Output 1: 15 VDC, 5.0A Max (system)
  • Power Supply Output 2: 12 VDC, 2.3A Max (battery)


  • 6-cell, 11.2 VDC, 5.2 amp-hours, rechargeable lithium-ion battery pack.
  • Runtime is up to 2 hours depending on imaging mode and display brightness.

General Specifications

  • Needle Visualization
  • Auto gain automatic
  • Image Optimization
  • Dual Imaging
  • Optional V-Universal Stand
  • 4 GB internal Flash memory
  • MPEG-4
  • JPEG
  • BMP
  • HTML
  • Rechargeable lithium-ion battery
  • 3 USB 2.0 ports
  • Ethernet port
  • RS-232
  • DVI
  • S-Video (in/out), and composite video out
  • DICOM Print and Store
  • Work List
  • Query
  • Storage Commit
  • MPPS
  • SiteLink
  • SonoRemote

Refurbished Sonosite S-Nerve Ultrasound

Soma Tech Intl offers Refurbished SonoSite S-Nerve Ultrasound up to 50% below OEM prices with the same service and warranty as new. The SonoSite S-Nerve is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the S-Nerve system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Ultrasounds. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the SonoSite system is working like new it undergoes a special cosmetic restoration process. The Ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the ultrasound functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished SonoSite S-Nerve Ultrasound contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a SonoSite S-Nerve Ultrasound System. If you or your facility is looking to sell your SonoSite, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned SonoSite S-Nerve ultrasound System to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Portable Ultrasounds?

Soma Tech Intl offers a wide range of Portable Ultrasounds. If you have any questions about our portable ultrasound machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your portable ultrasound machines? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
