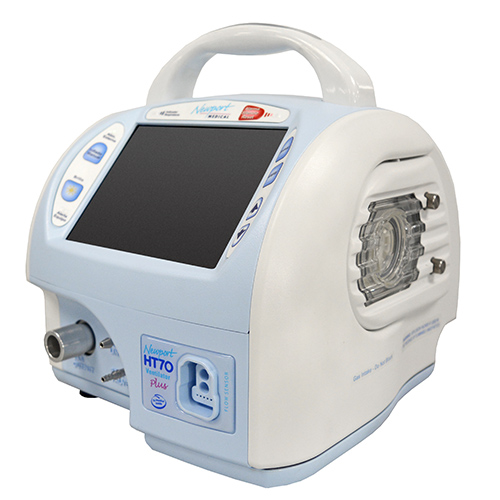

Covidien Newport HT70 Plus

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Covidien HT70 Plus Features

The Newport HT70 plus ventilator combines ruggedness, ease of use, and clinical proficiency with exceptional mobility for patients from 5kg to adult. All models of the Newport HT70 plus ventilator family can be used for home care, transport, hospital, long-term care, and emergency preparedness, as well as for invasive or noninvasive ventilation.
In addition to its standard clinical features, the HT70 offers an on-airway flow sensor that provides expanded monitoring with alarms and the choice of flow or pressure trigger. With waveform graphics, an oxygen cylinder usage calculator, and an internal battery use time estimator, the HT70 plus ventilator goes beyond standard portable ventilation.

  • An on-airway flow sensor provides more choices for ventilation—inspiratory or expiratory monitoring and alarms, flow or pressure trigger.
  • The hot-swappable battery provides up to 10 hours of operation (depending on settings). Batteries can be swapped out on the go for extended operation and added freedom without interrupting ventilation.
  • The Battery Time Estimator provides added peace of mind during transports.
  • Built-in oxygen monitoring and alarms alert users to changes or disruptions when using supplemental oxygen.
  • The Cylinder Use Time Calculator helps estimate how long oxygen will last when on the go.
  • The full-color touch screen provides easy access to all controls, simple navigation and a help guide for added convenience.
  • With its rugged and reliable construction, the ventilator is designed to withstand rough treatment in a wide range of environments.
  • A patented gas generator runs cool and quiet, is gas efficient and provides consistent volume delivery.
  • Advanced features such as Alarm Quickset, custom presets and custom backup ventilation make this an exceptional portable ventilator.

HT70 Plus Specifications


  • Width: 9.75 in. (24.74 cm)
  • Depth: 11 in. (27.94 cm)
  • Height (includes handle): 10.25 in. (26.04 cm)
  • Weight: 15.4 lbs (6.9 kg)
  • Touchscreen: 5.2 in. (13.20 cm) X 3.9 in (9.90 cm)
  • Nominal: 7 in. (17.78 cm) diagonal

Patient Range

  • (=5 kg) – Adult


  • IModes (Pressure or volume): A/CMV, SIMV, SPONT
  • NIV (Noninvasive ventilation): On/off in all modes
  • VT (Tidal Volume): 50 to 2,200 mL
  • RR (Respiratory Rate): 1 to 99 b /min
  • i Time (Inspiratory Time): 0.1 to 3.0 sec
  • PEEP/CPAP: 0 to 30 cm H2O/0 to 30 mbar
  • PS (Pressure Support): 0 to 60 cm H2O/0 to 60 mbar*
  • Flow: 6 to 100 L/min
  • I:E Ratio: 1:99 to 3:1
  • PC (Pressure Control): 5 to 60 cm H2O/5 to 60 mbar
  • Ptrig (Sensitivity): -9.9 to 0 cm H2O/-9.9 to 0 mbar
  • Flow Trigger: 0.0 to 10.0 L/min, Off
  • Manual Inflation: 3 sec maximum
  • O2 (oxygen): 21 to 100%
  • Bias Flow: NIV off: 7 L/min w/PEEP
  • NIV on: 3 to 30 L/min w/PEEP
  • PS Max i time: 0.1 to 3.0 sec
  • PS % Exp. Threshold: 5 to 85%
  • Slope Rise: 1 to 10
  • Flow Wave Pattern: Square or descending
  • Auto Lock function: On/off
  • Language Selection: Multiple language options
  • *PEEP + PS cannot exceed 60 cm H2O/mbar

Monitored Parameters

  • Paw (Peak, Mean, Base): VTI / VTE (insp./exp. tidal volume)
  • MVI/ MVE (insp./exp. minute volume): Peak Insp. Flow
  • RR tot (total respiratory rate): Internal Dual Battery System
  • O2 Concentration: I:E Ratio
  • O2 Cylinder Use:Battery Use Time Estimator

Specialty Screens

  • Events: Records up to 1,000 events with parameter settings
  • Trends: Displays trend graphs for last 72 hours
  • Waveform Graphics: Flow/pressure/tidal volume
  • Help: Touch any button for a tutorial of that feature
  • Domains: Basic, transport and hospital
  • Export Data: Capture/download events and trends
  • Patient Presets: Customized or default
  • Customized Back Up Ventilation: Link with apnea and/or low MV and customize settings


  • High/Low Airway Pressure: Apnea
  • High/Low Baseline Pressure: High/Low Oxygen
  • High Resp. Rate: Low Battery
  • High/Low Minute Volume: Alarm Silence/Reset
  • Device Alert: Back-up Ventilation Alert
  • High Tidal Volume: Airway Flow Sensor Disconnect

Refurbished HT70 Plus Ventilation System

Soma Tech Intl offers Refurbished Covidien Newport HT70 Plus Ventilators up to 50% below OEM prices with the same service and warranty as new. The Covidien Ventilator is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the HT70 ventilator, the Ventilator system is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the ventilator are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the HT70 Plus is working like new it undergoes a special cosmetic restoration process. The Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the ventilator functions and looks like new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished ventilators contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Newport HT70 Plus ventilator If you or your facility is looking to sell your Covidien Newport ventilator, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Covidien Ventilator to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain floor space for new equipment, or looking to upgrade current equipment, contact Soma Tech’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
