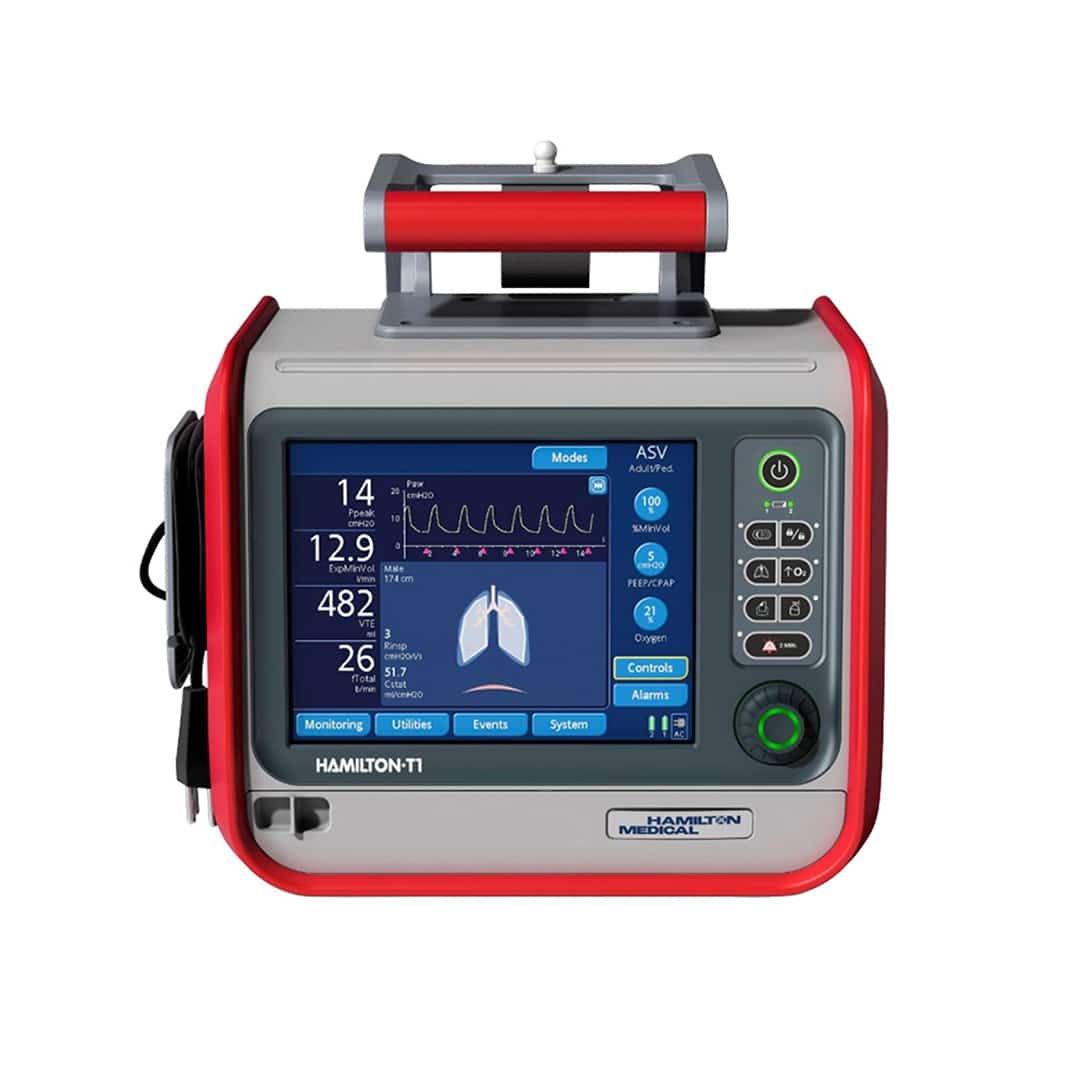

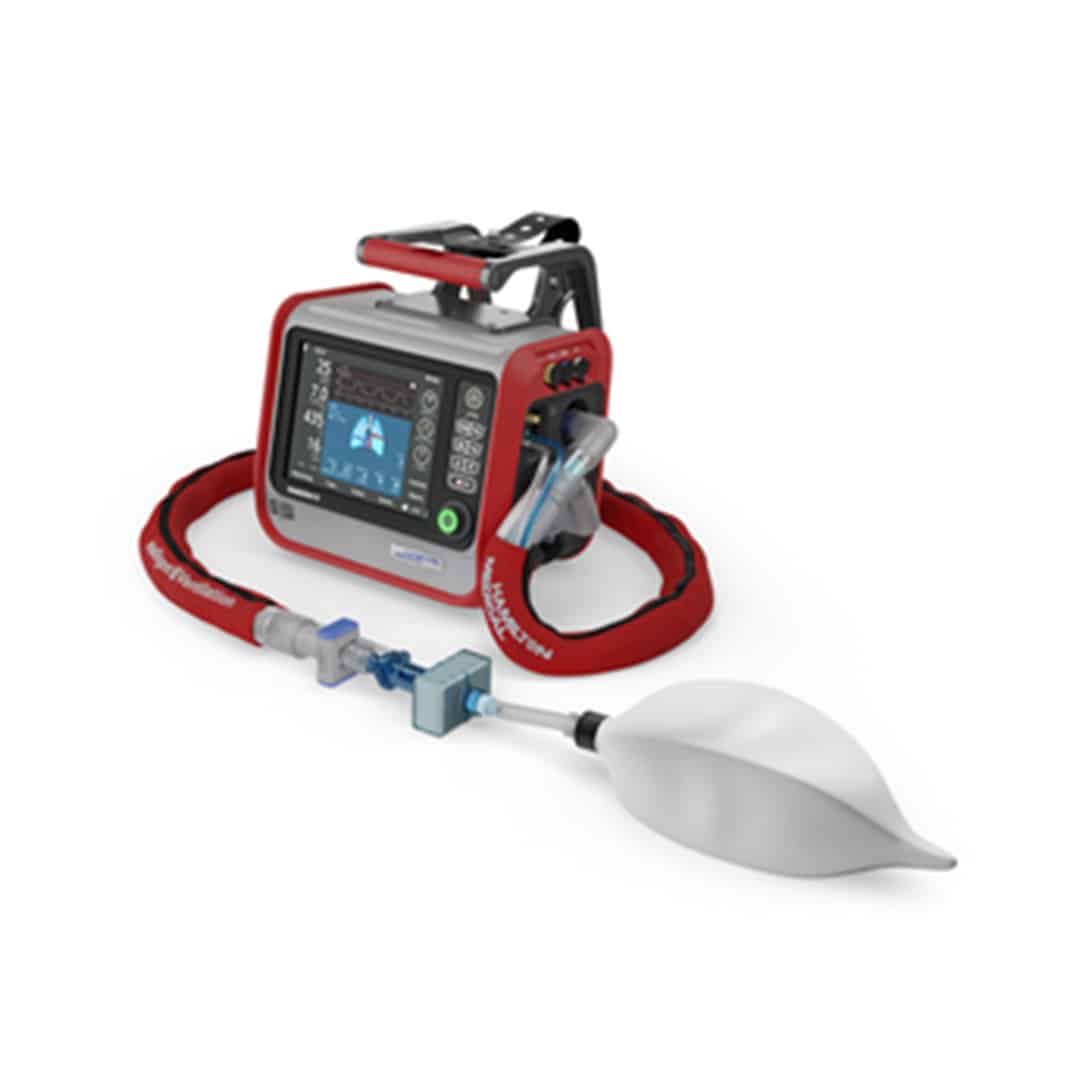

Hamilton T1
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Hamilton T1 Features
The Hamilton T1 is an advanced ventilator designed to deliver critical respiratory support in both clinical and transport environments. Combining compact design with cutting-edge technology, it ensures precise ventilation for various patient needs, from neonatal to adult care. This ventilator is ideal for use in emergency care, inter-hospital transfers, and intensive care units, offering both performance and portability. Its robust design and intuitive interface make it a trusted choice for healthcare professionals.
- Adaptive Support Ventilation (ASV®): Automatically adjusts ventilation to meet changing patient needs, optimizing oxygenation and CO2 elimination.
- Portable and Lightweight Design: Compact size and low weight allow for easy transport and mobility.
- Integrated Monitoring: Real-time display of waveforms, trends, loops, and intelligent panels for comprehensive patient assessment.
- Advanced Alarms: Includes visual and audible alarms to notify caregivers of critical changes in patient conditions.
- Battery Backup: Dual battery system provides up to 8 hours of operation, ensuring uninterrupted care during transport.
- Wide Mode Compatibility: Supports invasive, noninvasive, and high-flow oxygen therapy modes.
- Rugged Build: Durable construction for use in demanding environments such as ambulances, helicopters, and field hospitals.
Hamilton T1 Specifications
Dimensions
- Height: 9.6 in (24.5 cm)
- Width: 11.7 in (29.8 cm)
- Depth: 12.2 in (31 cm)
- Weight: 14.3 lbs (6.5 kg)
Power AC
- Input Voltage: 100–240 V AC, 50–60 Hz
- Power Consumption: Typical 50 VA, Maximum 150 VA
Battery
- Type: Lithium-ion, Hamilton-specific battery
- Runtime: 4 hours with one battery, 8 hours with two batteries
- Recharge Time: ~3.25 hours for one battery, ~6.25 hours for two batteries
Pneumatic Specifications
- High-Pressure Oxygen Inlet: 2.8–6 bar (41–87 psi)
- Low-Pressure Oxygen Inlet: ≤15 l/min, Maximum 6 bar (87 psi)
- Flow Accuracy: ±10% or ±300 ml/min (whichever is greater)
- Delivered Flow: ≥260 L/min (ambient pressure)
Environmental Conditions
- Operating Temperature: 41–122°F (5–50°C, Adult/Pediatric); 41–104°F (5–40°C, Neonatal)
- Storage Temperature: -4–140°F (-20–60°C)
- Humidity: 5–95% RH, non-condensing
Display
- Type: Color TFT touchscreen
- Size: 8.4 inches
- Resolution: 800 × 600 pixels
Supported Ventilation Modes
- Volume-Controlled Modes: APVcmv, APVsimv
- Pressure-Controlled Modes: PCV+, PSIMV+, DuoPAP, APRV
- Spontaneous Breathing Modes: SPONT, ASV®
- Noninvasive Modes: NIV, NIV-ST
- Special Modes: nCPAP, High Flow Oxygen Therapy (HiFlowO2)
Interfaces
- Connectivity: USB, RJ-45 Ethernet
- Optional Modules: CO2 sensor, SpO2 monitoring, Hamilton Connect app for remote monitoring
Refurbished Hamilton T1 Ventilators
Soma Tech Intl offers the Hamilton T1 ventilator up to 50% below OEM prices with the same service and warranty as new. The Hamilton T1 is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the Hamilton T1, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on ventilators. If necessary, parts are replaced to ensure that all aspects of the ventilator meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the ventilator is functioning like new, it undergoes a specialized cosmetic restoration. The Hamilton T1 is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Hamilton T1 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished ventilator, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase ventilators. If you or your facility are looking to sell your Hamilton T1, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
