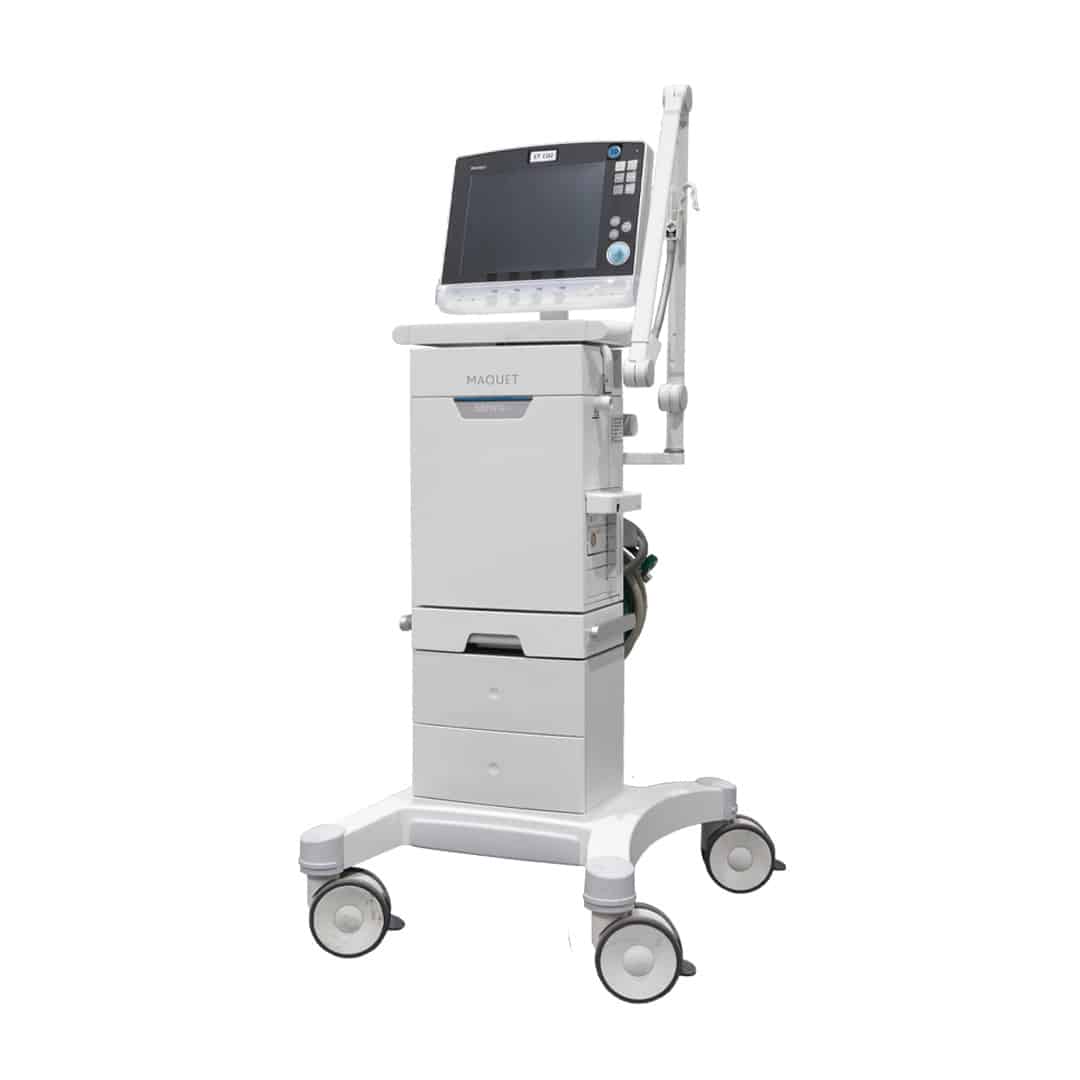

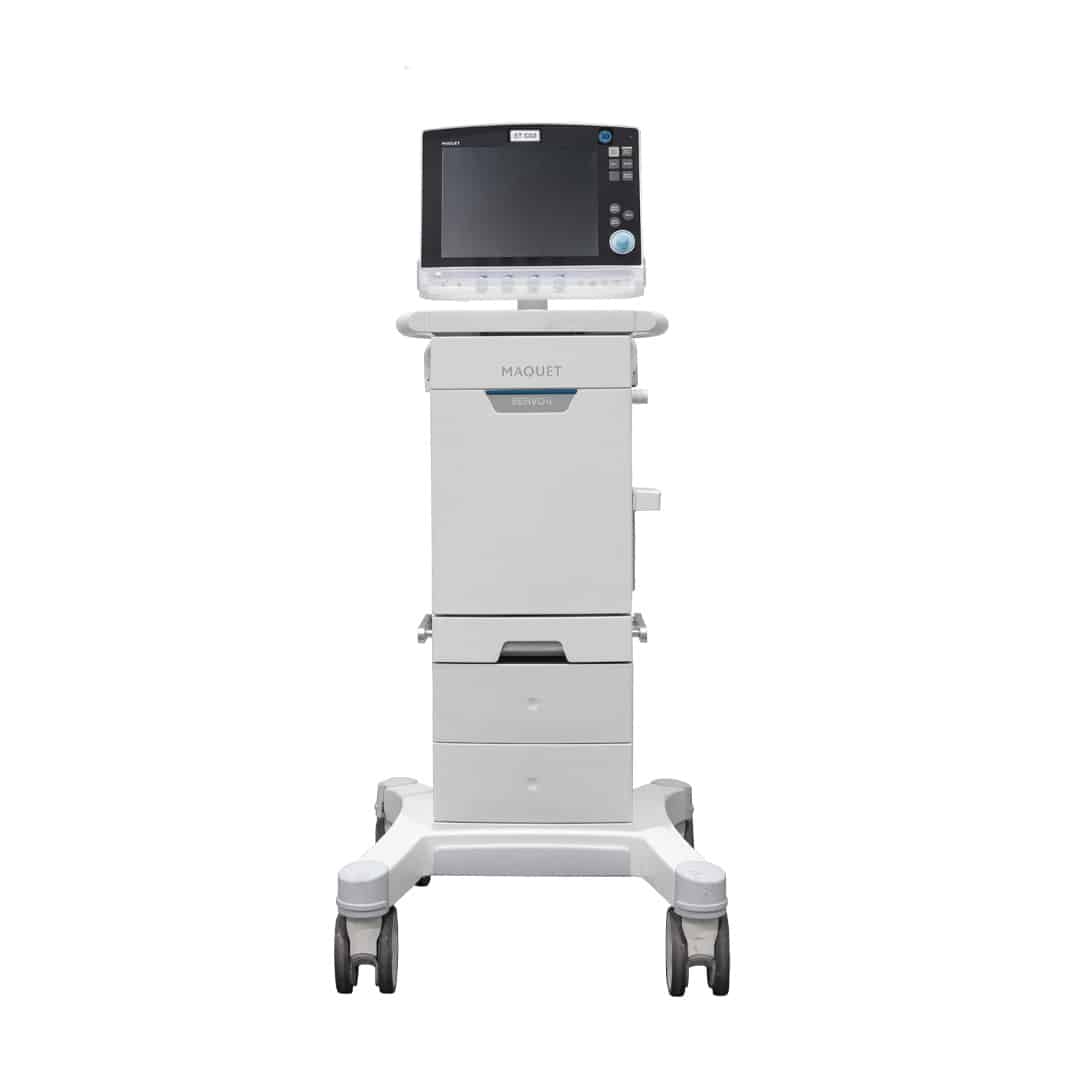

Siemens Maquet Servo-i

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Siemens Maquet Servo-i Features

The Maquet Servo I ventilation system can be used on a variety of patients from neonatal, pediatrics, and adults. It has the ability to handle the most acute phases of respiratory distress, through recovery, and to the waning phases of the ventilation process. The Servo-i continuously delivers outstanding ventilator treatment as gently as possible. This is in part due to the performance, monitoring capabilities, treatment options, and tools that this ventilator offers. Since this ventilator can be used on a wide variety of patients, it is suitable for most environments from the ICU to the NICU department. The Maquet Servo-i ventilator allows you to choose the treatment option based on your patients’ needs without having to worry about the ventilator’s capabilities.

Servo-i supports both invasive and non-invasive ventilation. It combines the highest level of clinical performance with outstanding mobility and cost-efficiency. Ease of training, operation, and maintenance, as well as flexibility and modularity, ensures a low life-cycle cost. The economic benefits of operating this modular platform are considerable: there is no need to scrap and reinvest for different patient categories and situations.

The Servo I ventilator is easy to use and learn about. The ventilation system provides the information you need, when you need it, allowing a fast and appropriate response from the user. The user-friendly interface gives easy access to all settings and even reaches the most important parameters through direct access knobs. This way, the clinician is always informed, in control, and able to react.

The Servo-i ventilation system is an all-in-one platform with advanced features you would normally expect from an advanced system. In patients with ALI and ARDS, it is difficult to identify harmful ventilator patterns, most importantly Barotrauma. The adult and universal Servo-i configurations have a feature called Stress Index that helps clinicians detect and prevent potentially high-risk scenarios in adults. The ventilator analyzes changes in the compliance of the respiratory system during the constant flow of controlled breaths. This unit also has a Heliox option which is a low-density gas mixture of helium and oxygen. Heliox is widely recognized as a therapy that minimizes turbulence and improves CO2 elimination.

This ventilator is designed to meet your clinical needs. It’s a single system that offers a broad range of treatment options, which means it is always ready to adapt to your changing medical needs. This ventilator comes in 3 different configurations; infant, adult, and universal. The infant configuration doesn’t have the Stress Index and the Hyperbaric Oxygen Therapy (HBO) feature. The Adult configuration doesn’t have the Nasal CPAP or the HBO feature. If you are interested in knowing exactly what features each configuration has, call 1-800-GET-SOMA and one of our knowledgeable sales representatives will assist you.

Maquet Servo-i Specifications

Dimensions

  • Height: 51.8 In (131.5 cm)
  • Width: 22 In (56 cm)
  • Depth: 25.2 In (64 cm)
  • Weight: 44.1 lbs (20 kg)

General

  • Method of triggering: Flow, pressure, and Edi (optional)
  • Max. operating pressure: Approximately 115 cmH2O
  • Bias flow: 2 l/min

Inspiratory Channel

  • Pressure drop: Max. 6 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • Gas delivery system: Microprocessor-controlled valve
  • Inspiratory flow range:
    • Adult: 0 to 3.3 l/s
    • Infant: 0 to 0.55 l/s

Expiratory Channel

  • Pressure drop: Max. 3 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • PEEP regulation: Microprocessor-controlled valve
  • Rise Time, Expiratory Flow Measurement: <12 ms for 10 – 90 % response at the flow of 0.05 – 3.2 l/s
  • Expiratory flow range: 0 to 3.2 l/s

Screen

  • Type: TFT-LCD module
  • Size: 31 cm (12.1”) diagonal
  • Viewing area: 246.0 x 184.5 mm

Operating Conditions

  • Operating temperature: +10 to +40ºC
  • Relative humidity: 15 to 95% non-condensing
  • Atmospheric pressure: 660 to 1060 hPa
  • The lowest pressure in breathing system: –400 cmH2O

Power Supply

  • Power supply, automatic range selection
    • 100 – 120 V AC ±10%
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Plug-in battery module
    • Battery backup: Two battery modules are delivered with the ventilator.
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Battery capacity: Rechargeable, 12 V, 3.5 Ah each
  • Recharge time: Approximately 3 h/battery
  • Battery backup time: At least 3 h, when using six batteries.
  • External 12 V DC: 12.0 V – 15.0 V DC, 10 A
  • Max power consumption
    • At 100 – 120 V: 2 A, 190 VA, 140 W
    • At 220 – 240 V: 1 A, 190 VA, 140 W

Invasive Ventilation

  • Inspiratory tidal volume

    • Adult 100–4000 ml
    • Infant 2–350 ml
  • Inspiratory flow =200 l/min
  • PEEP 0–50 cmH2O
  • Pressure above PEEP

    • Adult 0– (120-PEEP) cmH2O
    • Infant 0 –(80-PEEP) cmH2 O

Non-Invasive Ventilation

  • PEEP 2–20 cmH2O
  • Pressure above PEEP 0– (62-PEEP) cmH2 O
  • Leakage compensation

  • Adult
    • Inspiratory, up to 200 l/min
    • Expiratory, up to 65 l/min
  • Infant
    • Inspiratory, up to 33 l/min
    • Expiratory, up to 25 l/min
    • Nasal CPAP, up to 20 l/min

Connectivity

  • External device interfaces 2xRS232, remote alarm, MCare remote service
  • IHE technical framework MSync HL7 converter

Refurbished Maquet Servo i Ventilator

Soma Technology, Inc. offers the Servo I Ventilator up to 50% below OEM prices with the same service and warranty as new. Soma Technology technically and cosmetically refurbishes these ventilators back to the original engineering manufacturer’s specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Servo I Ventilator are in working order, the ventilator is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Technology not only refurbishes the product, but each unit also goes through a Special cosmetic restoration process. The Maquet Servo I Ventilator is cleaned and minor scratches and dentures are repaired, and decals are replaced if necessary.

Soma Technology, Inc. also purchases used and pre-owned Ventilators. If you or your facility wants to sell your Maquet ventilators, Soma Technology has an experienced purchasing department that makes the process headache and hassle-free. When selling your ventilator system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Technology not only buys portable ultrasounds but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!

Banner

Questions about our ventilators?

Soma Tech Intl offers a wide range of ventilators. If you have any questions about any of our ventilators or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your ventilators? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
