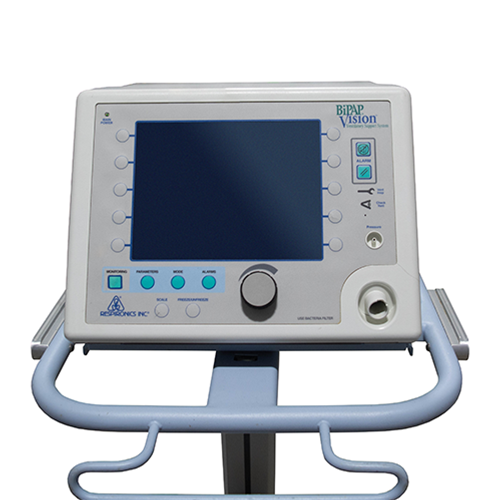

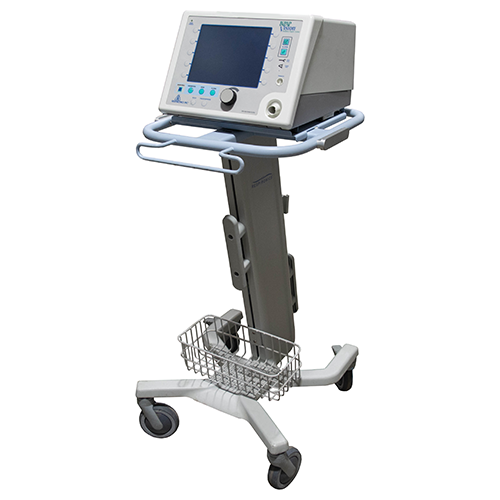

Philips Respironics BiPAP Vision
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Philips Respironics BiPAP Vision Features
The Philips Respironics BiPAP Vision offers non-invasive Ventilation to patients. The BiPAP Vision was designed specifically with hospitals in mind, with NIV, changes in leaks, dynamic breathing patterns, High FlO2, and Flow demand all included in one system. The system can be used for sub-acute therapy and can eliminate the need for intubation. With Auto-Trak sensitivity the machine can adapt in cases of in-breath or even circuit leaks. It allows Auto -adaptive triggers to help reduce the work that is needed for the patient to breathe in certain situations and can reduce the need for manual adjustments. The Ventilation system has a larger integrated display making it easier to view the various measurements being monitored.
- Digital Auto-Trak sensitivity automatically adapts to changing leaks on a breath-by-breath basis, allowing the patient’s mask to be fit for comfort rather than a perfect seal.
- The integrated display screen displays real-time graphics in the waveform or bar scale format to assist with ventilator management.
- CPAP and S/T modes are available for maintaining airway patency and providing pressure support ventilation.
- Oxygen control allows 21–100% concentrations without attaching auxiliary oxygen to the mask
- Pressure regulation at the mask ensures accurate therapy for the patient.
- The alarm module provides a complete range of alarms that are designed with mask ventilation in mind, minimizing nuisance alarms caused by mask leaks.
Integrated Display Screen displays easy-to-read real-time graphics in the waveform or bar scale format, providing the following measured and calculated numerical values to assist with ventilator management:
- IPAP
- Total Breath Rate
- Exhaled Minute Ventilation
- % Patient Triggered Breaths
- Exhaled Tidal Volume
- EPAP
- Ti/Tot
- Peak Inspiratory Pressure
- Patient or Total Leak
- Integrated Display Screen
- Oxygen Control up to 100%
- Pressure Regulation at Mask
- BiPAP
- Auto-Trak Sensitivity
- Alarm Module
Philips Respironics BiPAP Vision Specifications
Dimensions
- At the Base
- Height: 10.625 in (27 cm)
- Width: 10.375 in (36.5 cm)
- Length: 16 in (40.6 cm)
- Weight: 34 lb (15.4 kg)
Electrical
- AC Input Voltage (VAC):
- 100/120/230/ 240 VAC
- Single Phase
- ±10%
- Fuses:
- 100 – 120 VAC ~ T 3.5 A, 5 × 20 mm, Time Lag (×2) (For serial no.’s 100500 and higher – Respironics Reorder # 1000749)
- 115 VAC ~ T 3.0 A, 250 V, ¼” × 1¼” (For serial no.’s 100499 and lower – Respironics Recorder # 582100)
- 220 VAC, 230 VAC and 240 VAC ~ T 1.6 A, 250 V, 5 × 20 mm (For all serial no.’s – Respironics Recorder # 1000750)
- Power Consumption: 300 VA max.
- AC Current: 3.0 A maximum
- AC Frequency: 50/60 Hz
Modes
CPAP
- Control Range: 4 to 20 cm H2O
- Control Increments: 1 cm H2O
S/T
- Control Range: 4 to 40 cm H2O
- Control Increments: 1 cm H2O
PAV/T
- Control Range: Quick Start Menu
- Control Increments: Obstructive, Restrictive, Mixed, Normal
Control Ranges & Increments: Parameters
IPAP
- Control Range: 4 to 40 cm H2O
- Control Increments: 1 cm H2O
EPAP
- Control Range: 4 to 40 cm H2O
- Control Increments: 1 cm H2O
CPAP
- Control Range: 4 to 40 cm H2O
- Control Increments: 1 cm H2O
Rate
- Control Range: 4 to 40 BPM
- Control Increments: 1 BPM
Timed Inspiration
- Control Range: 0.5 to 3.0 sec
- Control Increments: 0.1 sec
IPAP Rise Time
- Control Range: 0.05 to 0.40 sec
- Control Increments: 4 set points: .05, .1, .2, .4 sec
Oxygen Concentration (%O2)
- Control Range: 21 to 100%
- Control Increments: 4% from 21 to 25% and 5% from 25 to 100%
Control Ranges & Increments: Alarms
High Pressure
- Control Range: 5 to 50 cm H2O
- Control Increments: 1 cm H2O
Low Pressure
- Control Range: Disabled; 0 to 40 cm H2O
- Control Increments: 1 cm H2O
Low Pressure
- Control Range: Delay 0 to 60 sec
- Control Increments: 1 sec
Apnea
- Control Range: Disabled; 20 to 40 sec
- Control Increments: 4 set points: Disabled, 20, 30, 40 sec
Low Minute Ventilation
- Control Range: Disabled; 1 to 99 L/min
- Control Increments: 1 L/min
High Rate
- Control Range: 4 to 120 BPM
- Control Increments: 4 set points: 1 BPM
Low Rate
- Control Range: 4 to 120 BPM
- Control Increments: 4 set points: 1 BPM
Display Ranges & Increments
IPAP
- Display Range: 0 to 50 cm H2O
- Display Resolution: 1 cm H2O
EPAP
- Display Range: 0 to 50 cm H2O
- Display Resolution: 1 cm H2O
CPAP
- Display Range: 0 to 50 cm H2O
- Display Resolution: 1 cm H2O
Rate
- Display Range: 0 to 150 BPM
- Display Resolution: 1 BPM
Exhaled Tidal Volume (VT)
- Display Range: 0 to 4000 ml
- Display Resolution: 1 ml
Minute Ventilation (Min Vent)
- Display Range: 0 to 99 L/min
- Display Resolution: 1 L/min
Total Leak (Tot Leak)
- Display Range: 0 to 300 L/min
- Display Resolution: 1 L/min
Patient Lead (Pt. Leak)
- Display Range: 0 to 300 L/min
- Display Resolution: 1 L/min
Peak Inspiratory Pressure (PIP)
- Display Range: 0 to 50 cm H2O
- Display Resolution: 1 cm H2O
Percent of Patient Triggered Breaths (Pt. Trig)
- Display Range: 0 to 100%
- Display Resolution: 1%
Ti/Ttot
- Display Range: 0 to 100%
- Display Resolution: 1%
Refurbished Philips Respironics BiPAP Vision Ventilator
Soma Tech Intl offers Philips Respironics BiPAP Vision up to 50% below OEM prices with the same service and warranty as new. The Philips Respironics BiPAP Vision is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Philips Respironics BiPAP Vision, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on a ventilator. If necessary, parts are replaced to make sure that all aspects of the Philips Respironics BiPAP Vision are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips Respironics BiPAP Vision is working like new it undergoes a special cosmetic restoration process. The Philips Respironics BiPAP Vision is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips Respironics BiPAP Vision is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Philips Respironics BiPAP Vision
contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase a Philips Respironics BiPAP Vision. If you or your facility is looking to sell your Philips Respironics BiPAP Vision , be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Philips Respironics BiPAP Vision to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected]or send us a message on our website.
