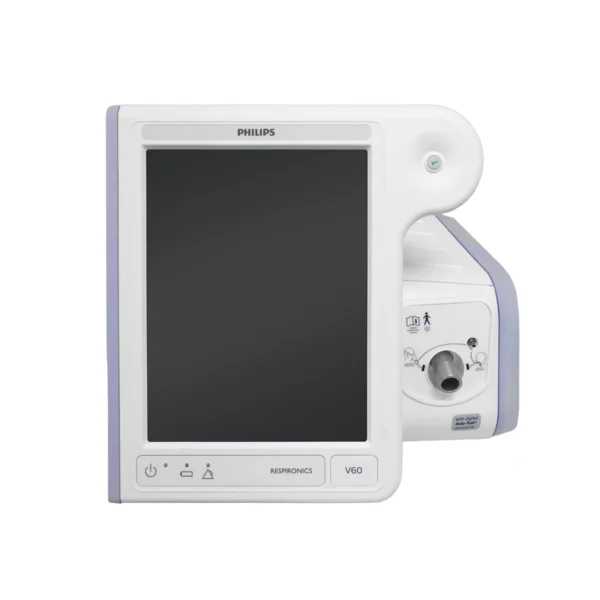

Philips Respironics V60

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips V60 Features

The Philips Respironics V60 Ventilator is an assist ventilator intended to augment patient breathing. It is intended for spontaneously breathing individuals who require mechanical ventilation. For example, patients with respiratory failure, chronic respiratory insufficiency, or obstructive sleep apnea in a hospital or other institutional setting under the direction of a physician. The Respironics Philips V60 is intended to support pediatric patients weighing 44 lbs (20 kgs) or greater adult patients.

The Philips V60 BiPAP Ventilator combines Respironics’ ventilation expertise with Philips’ focus on simplifying advanced health care. The result is the noninvasive ventilation gold standard with an invasive ventilation safety net and an interactive display that helps simplify patient management. Because every breath matters and every breath is different, patients need a ventilator that always follows their breathing pattern, whatever their understanding. The Philips Ventilator uses auto-adaptive technology to help ensure patient synchrony and therapy acceptance. The improved signal processing technology is finely tuned for both adult and pediatric patients. Another Ventilator by Philips is the Philips Respironics V60 Plus Philips Respironics V60 Plus.

  • High-resolution graphics facilitating waveform interpretation.
  • Internal 6-hour battery enables intra-hospital transport (actual battery time will vary depending on user settings and battery charge level). Standby mode supports patient-clinician interaction without nuisance alarms.
  • Data communication capabilities support hospital connectivity.
  • Respi-Link, a remote communication tool, allows efficient system diagnostics and upgrades via the Internet.
  • AVAPS maintains a target tidal volume in a pressure-limited mode. It provides extra assurance similar to a volume-limited mode with the safety of a pressure-limited mode.
  • CPAP with C-Flex offers three levels of flow-based expiratory pressure relief. This option improves sleep quality and patient comfort, adding greater flexibility and improving treatment acceptance.
  • PCV can be used when greater control of the patient’s breathing pattern is required. Additionally, the option of ventilating a patient invasively gives the caregiver greater flexibility in the approach to treatment.
  • ICU-grade NIV performance with enhanced safety and monitoring.
  • ?Treatment for a wide range of clinical severities and patients from pediatric to adult.
  • Flexibility for intra-hospital transport with an internal 6-hour smart battery.

More Information on the Philips V60 Ventilator

The Respironics V60 Ventilator is an assist ventilator intended to augment patient breathing. It is intended for spontaneously breathing individuals who require mechanical ventilation: patients with respiratory failure, chronic respiratory insufficiency, or obstructive sleep apnea in a hospital or other institutional settings under the direction of a physician.

The ventilator is intended to support pediatric patients weighing 20 kg (44 lb) or greater to adult patients. It is also intended for intubated patients meeting the same selection criteria as the noninvasive applications. The ventilator is intended to be used by qualified medical professionals, such as physicians, nurses, and respiratory therapists. The ventilator is intended to be used only with various combinations of Respironics-recommended patient circuits, interfaces (masks), humidifiers, and other accessories.

Philips V60 Specifications

Dimensions

Dimensions listed below with the following configuration: V60 Ventilator with backup battery, ventilator stand, O2 tank holder, circuit arm with mount, patient circuit, O2 manifold with hoses.

  • Height: 53.5” (136 cm)
  • Width: 25” (64 cm)
  • Weight: 79.5 lb (36.1 kg)

Dimensions listed below for only the V60 Unit.

  • Height: 13.3” (33.7 cm)
  • Width: 15.5” (39.4 cm)
  • Depth: 16.5” (42.9 cm)
  • Weight (With optional battery): 25.7 lbs (11.7 kg)
  • Weight (Without battery): 23.3 lb (10.6 kg)

Patient Types

  • Adult
  • Pediatric (Less than or equal to 20 kg)

Battery

  • 14.4V, 10.0 Ah, 163 Wh
  • Maximum system current draw: 11 A
  • Charge Voltage: 16.9 V Maximum
  • Operating Time: 360 minutes under normal condit

Modes

  • Continuous positive airway pressure (CPAP)
  • Spontaneous with timed backup (S/T)
  • Pressure control ventilation (PCV)
  • Average volume assured pressure support (AVAPS) —optional

Settings

  • C-Flex OFF, 1–3
  • CPAP 4–25 cmH2O
  • EPAP 4–25 cmH2O
  • IPAP 4–40 cmH2O
  • I-time (inspiratory time) 0.30–3.00 sec
  • Max P (AVAPS maximum IPAP) 6–40 cmH2O
  • Min P (AVAPS minimum IPAP) 5–30 cmH2O
  • O2 (oxygen percent) 21–100%
  • Ramp time OFF, 5–45 min
  • Rate (respiratory rate) 4–60 BPM
  • Rise (rise time) 1–5
  • Triggering and cycling Auto-adaptive (Auto-Trak)
  • AVAPS target tidal volume 200–2000 ml

Monitored Parameters

  • Breath Phase / Trigger Indicator Spont, Timed, Exhale
  • PIP 0–50 cmH2O
  • Patient / Total Leak 0-200 l/min BTPS
  • Patient trigger 0–100%
  • Respiratory rate 0–90 BPM
  • Ti/Ttot 0–91%
  • Tidal volume 0–3000 ml BTPS

General

  • Oxygen inlet pressure range 276–600 kPa (40–87 psig)
  • Weight 10.9 kg (24lb) with optional battery; 10.0 kg (22 lb) without optional battery
  • Dimensions 33.7 cm (13.3 in) height; 39.4cm (15.5 in) weight; 42.9 cm (16.5 in) depth

Electrical

  • AC voltage 100–240 VAC
  • AC frequency 50–60 Hz
  • AC power 300 VA
  • Battery operating time 6 hours in normal conditions

Environmental Specifications (Operating)

    • Temperature: 41 to 104 ºF (5 to 40 ºC)

Relative Humidity: 15 to 95% (noncondensing)

Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)

Environmental Specifications (Storage)

    • Temperature: -4 to 122 ºF (-20 to 50 ºC)

Relative Humidity: 10 to 95% relative (noncondensing)

Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)

High-pressure Oxygen Supply

    • Connector: DISS male, DISS female, NIST
    • Pressure: 2.76 to 6.00 bar / 276 to 600 kPa / 40 to 87 psig
    • Flow: 175 SLPM



  • Connector: SIS
  • Pressure: 3.31 to 6.00 bar / 331 to 600 kPa / 48 to 87 psig
  • Flow: 175 SLPM

High-pressure Oxygen Supply (Using V60 manifold)

    • Connector: DISS male, DISS female, NIST
    • Pressure: 3.10 to 6.00 bar / 310 to 600 kPa / 45 to 87 psig
    • Flow: 175 SLPM



  • Connector: SIS
  • Pressure: 3.66 to 6.00 bar / 366 to 600 kPa / 53 to 87 psig
  • Flow: 175 SLPM

Inspiratory Outlet (To patient port)

  • Connector: ISO 15 mm female/22 mm male conical

Air Supply

  • Integrated blower

Flows and Pressures

  • Flow Delivery: 150 L/min at 40 cmH2O at 1951 m (6400 ft) altitude (10% degradation in flow at 2286 m (7500 ft))
  • Flow Range: -240 to 240 L/min BTPS
  • Pressure Range: 4 to 40 cmH2O
  • Dynamic pressure regulation: ± (2 cmH2O + 4% of target)

Refurbished Philips V60 Ventilator Systems

Soma Tech Intl offers the Philips Respironics V60 ventilator up to 50% below OEM prices with the same service and warranty as new. Soma Tech Intl technically and cosmetically refurbishes these V60s back to the original engineering manufacturer specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the BiPAP V60 are in working order, the ventilator is calibrated back to OEM specifications to ensure it works exactly the way it did when it originally left the manufacturer. Soma Tech Intl not only refurbished the product, but each unit also goes through a Special cosmetic restoration process. The Trilogy ventilator is cleaned and minor scratches and dentures are repaired, and decals are replaced if necessary.

Soma Tech Intl also, purchases used and pre-owned Philips Ventilators. If you or your facility wants to sell your V60 BiPAP Ventilator, Soma Tech Intl has an experienced purchasing department that makes the process headache and hassle-free. When selling your ventilator system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech Intl not only buys portable ventilators but also would buy a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to soma, send us a message here!
