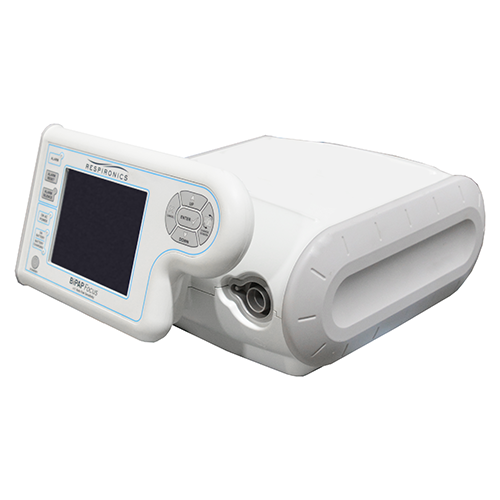

Philips Respironics BiPAP Focus

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips Respironics BiPAP Focus Features

The Philips Respironics BiPAP Focus is a non-invasive ventilator (NIV) that offers bi-level assistance ventilation to patients. This type of ventilation is specifically designed for facilities like hospitals. Assisted ventilation is suitable for patients with Obstructive sleep apnea, low acuity, and patients with respiratory insufficiency and distress. The BiPAP Focus is not a Critical care Ventilator. It is approved for acute, sub-acute, and intra-hospital transport setting only. The BiPAP Focus comes with a standard alarm system and Auto-track Sensitivity that warn of triggers and different sensitivities that can change the breathing pattern of the patient and or cause ventilation leakage.

  • Support for patients weighing over 66 lb (30kg)
  • Backup battery for continuous ventilation.
  • Portable design for intra-hospital transport.
  • Digital Auto-Trak adapts to patient changes.
  • Large user interface.
  • Ideal for low-acuity environments.
  • Auto-adaptive triggering and cycling thresholds.

Philips Respironics BiPAP Focus Specifications


  • Height: 5.5” (14 cm)
  • Width: 11.4” (29 cm)
  • Depth: 14” (35.5 cm)
  • Max Weight: 10 lb (4.5 kg)


  • CPAP: 4-20 cmH2O
  • EPAP: 4-25 cmH2O
  • IPAP: 4-30 cmH2O
  • Rise Time: 1-6 (1 = 0.1 s and 6 = 0.6 s)
  • Rate: 1-30 BPM (accuracy: ±BPM or ±10% of setting)
  • I-time: 0.5-0.3 s
  • Ramp Time: 0-45 min
  • Ramp Start: 4 cmH20 to EPAP
  • Maximum Flow Capacity: 160 l/min
  • Leak Compensation: Up to 60 l/min

Patient Parameters

  • Patient Circuit Pressure: 0-35 cmH2O
  • Rate Range: 0-99 BPM
  • Estimated VT Range: 0-4000 ml
  • Estimated MV Range: 0-99 l/min
  • Patient Leak Range: 0-200 l/min
  • Apnea Rate Range: 0-99 per hour


  • High System Pressure: 5 cmH2O over target IPAP pressure
  • Low System Pressure: 5 cmH2O under target EPAP pressure
  • Apnea Range: 20, 40, 60 s or off
  • Apnea Rate Range: 5, 10, 20 apneas per hour or off
  • Nurse Call: Normally open, normally closed


  • Input Rating: 100 VAC / 230VAC
  • Battery Backup: 3.8 amp-hour (NiMH)
  • Fuse: No replaceable fuse
  • Nurse Call: 0.280 A (rated current); 250 V (rated voltage)

Refurbished of The Philips Respironics BiPAP Focus Ventilator

Soma Tech Intl offers the Philips Respironics BiPAP Focus Ventilator machine up to 50% below OEM prices with the same service and warranty as new. The Respironics is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the BiPAP ventilator machine are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the BIPAP Focus is working like new it undergoes a unique cosmetic restoration process. The Impact Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Impact Philips Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Philips Respironics BiPAP Focus ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Respironics ventilator removes the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.


Questions about our ventilators?

Soma Tech Intl offers a wide range of ventilators. If you have any questions about any of our ventilators or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your ventilators? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.

Contact Us
