Vyaire Avea CVS

Quotes in less than 24 hours Download Specifications

Vyaire Avea CVS Features

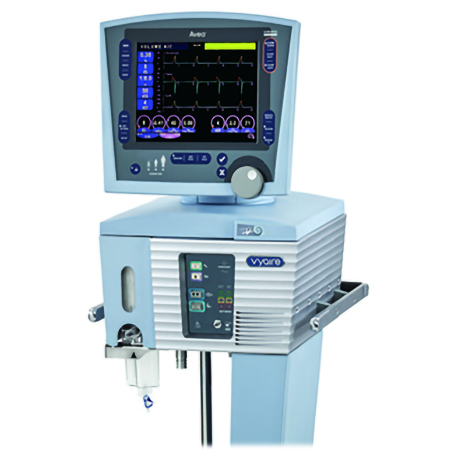

The Vyaire Avea CVS is a ventilator that is used in acute care environments for patients ranging from neonates to adults. The Avea CVS offers a dynamic range of breathing gas delivery, with a new version of the user interface module. This can maximize the flexibility of the ventilation system and customize a solution for each patient. The flat-panel LCD Touch screen makes it easy to make changes in the settings and operating parameters. The Avea CVS operates on a Servo-controlled, software-driven ventilation system that when mixed with the gas delivery system, can improve the patient’s inhalation and exhalation. Looking for another Vyaire Ventilator? How about the Vyaire CareFusion Avea?

  • Neonatal, Pediatric, and adult care compatible.
  • Artificial airway compensation.
  • 24-hour trending with custom histograms.
  • Super VGA color-graphics.
  • User-configurable monitored parameters.
  • Accurate volume delivery.
  • Improved synchrony and comfort.

Vyaire Avea CVS Specifications

Dimensions (Pneumatic Module)

  • Height: 10.5” (26.7 cm)
  • Width: 16.75” (43.2 cm)
  • Depth: 16” (40.6 cm)

Dimensions (User Interface Module)

  • Height: 13.75” (35 cm)
  • Width: 16.25” (43.2 cm)
  • Depth: 2.5” (6.4 cm)


  • Ventilator (Including User Interface Module): 83 lbs (37.6 kg)
  • Ventilator and Compressor (Internal): 90 lbs (40.8 kg)

Battery Power

  • 1 hr of ventilator use on internal battery (standard) or 30 minutes ventilator and compressor
  • 4 hr of ventilator use on external battery or 2 hr ventilator and compressor


  • Super VGA Color Graphics
  • Viewable Size (Diagonal): 12.1” (30.7 cm)
  • Resolution: 800 x 600


  • Breath Type: APRV/BiPhasic, Volume, Pressure, TCPL, PRVC, Volume Guarantee
  • Apnea Backup: Volume, Pressure, TCPL

Primary Settings

  • Rate: 1–150 bpm (neonatal, pediatric), 1–120 bpm (adult)
  • Tidal Volume: 2.0 mL–2.5 L
  • Inspiratory Pressure: 0–80 cmH2O (neonatal), 0–90 cmH2O (adult, pediatric)
  • Peak Flow: 0.4–150 L/min
  • Inspiratory Time: 0.15–5.0 sec
  • Pressure Support Ventilation (PSV): 0–80 cmH2O (neonatal), 0–90 cmH2O (adult, pediatric)
  • PEEP: 0–50 cmH2O
  • Flow Trigger: 0.1–20 L/min
  • O2: 21–100%
  • Pressure High (in APRV/BiPhasic mode): 0–90 cmH2O
  • Time High (in APRV/BiPhasic mode): 0.2–30 sec
  • Time Low (in APRV/BiPhasic mode): 0.2–30 sec
  • Pressure Low (in APRV/BiPhasic mode): 0–45 cmH2O

Manual Controls

  • Manual Breath: One breath
  • Expiratory Hold: Max. 20 sec (adult, pediatric), 3 sec (neonatal)
  • Inspiratory Hold: Max. 3 sec
  • Increase O2: Set percentage O2 + 0–79% O2
  • Synchronized Nebulizer: Available when delivered flow = 15 L/min
  • Disconnect for Suction: Active

Advanced Settings

  • Bias Flow: 0.4–5.0 L/min
  • Volume Limit: 2.0 mL–2.5 L
  • Inspiratory Rise: 1–9
  • Flow Cycle: 0 (Off) to 45%
  • PSV Rise: 1–9
  • PSV Cycle: 5–45%
  • PSV TMAX: 0.15–5.0 sec
  • Waveform: Square, decelerating
  • Sigh: On/Off
  • Pressure Trigger: 0.1–20 cmH2O
  • Demand Flow: On/Off
  • Volumetric Capnography: EtCO2 averaging 1 or 8 breaths, VCO2 averaging: 3, 6, 9 or 12 minutes

Advanced Patient Monitoring

  • Proximal hot wire flow sensor
  • Proximal variable orifice flow sensor (infant, pediatric, adult)
  • Proximal airway pressure monitoring
  • Tracheal pressure monitoring
  • Esophageal pressure monitoring
  • Volumetric capnography

Refurbished of The Vyaire Avea CVS Ventilator

Soma Tech Intl offers the Vyaire Avea CVS Ventilator machine up to 50% below OEM prices with the same service and warranty as new. The Avea CVS is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the Vyaire ventilator machine are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the ventilator is working like new it undergoes a special cosmetic restoration process. The Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Vyaire Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Vyaire Avea CVS ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Vyaire ventilator takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
