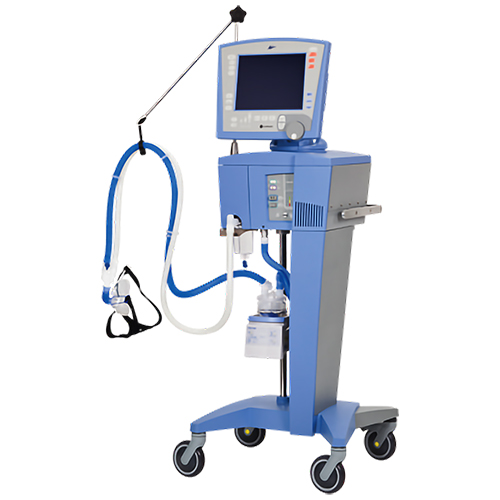

Vyaire CareFusion Avea Ventilator

Quotes in less than 24 hours Download Specifications

Vyaire CareFusion Avea Features

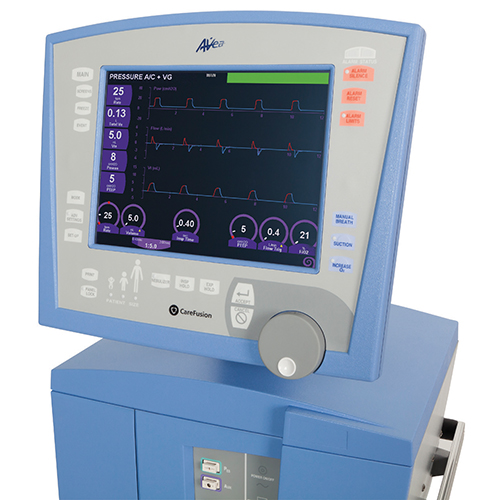

The Vyaire Carefusion Avea Ventilator can provide a wide range of ventilation modes with clinical tools and advanced monitoring. The Vyaire CareFusion Avea can offer critical care ventilation in both non-invasive and invasive ventilation modes for neonate, pediatric and adult patients. Some advanced tools include; BiCore Pulmonary monitoring, Heliox administration, and Volumetric Capnography. The Ventilator runs off of a Servo-controlled, software-driven ventilation system. as well as a user interface module that can maximize the flexibility of the ventilation to fit each patient’s needs. The front panel has a larger LCD touch screen making it easy to see the parameters being monitored while still being able to easily make changes. Another Vyaire Ventilator is the Vyaire Avea CVS.

  • This ventilator offers precision gas delivery system supplies accurate volumes.
  • Active exhalation valve on the CareFusion Avea promotes ventilator synchrony and comfort for your patients.
  • Volumetric Capnography gives clinicians more accurate tools to aid in quicker reaction during critical situations.
  • Accurate esophageal pressure measurements.

The AVEA provides a comprehensive array of modes and advanced features that keep you focused on your patient, not the equipment:

  • Volumetric capnography—Equipped with this option, this ventilator adds another key piece of information to provide improved monitoring of the patient’s condition. When tied with exclusive BiCore technology, this powerful tool provides the most comprehensive monitoring array of any ventilator available.
  • Precision gas delivery system—Supplied accurate tidal volumes from 2 mL to 2.5 L and was the first of its kind to compensate for heliox gas delivery automatically.
  • On-board compressor—The optional onboard air compressor can meet your patient’s needs whether in the intensive care unit (ICU) or moving to computerized tomography (CT) scan. This powerful scroll compressor can only be found on the ventilator and is capable of operating the ventilator for up to two hours on battery.*
  • Communication—Three different serial protocols can be selected from the utility screen to simplify integration with hospital information systems or remote alarm monitoring.

More Vyaire CareFusion Avea Information

Pall Microbial Filter

  • Resistance: The exhalation filter supplied with your AVEA ventilator is manufactured by Pall Medical of Ann Arbor, MI, USA. The
    published maximum resistance of this filter is 4cmH2O at 100 L/min for the 725 filters
  • Compliance: The compliance for the filter is < 0.4 ml/cmH2O
  • Materials: Materials used in the construction of the filter have passed USP Class VI 121° C Plastic and Cytotoxicity test

Water Trap

  • Resistance: The resistance of the internal exhalation water trap assembly including the collection bottle is < 0.5 cmH2O at 50 L/min
  • Compliance: The compliance of the internal exhalation water trap assembly including the collection bottle is < 0.2 ml/cmH2O

Environmental Temperature

  • Storage -20°C to 60°C (-4°F to 140°F)
  • Operating 5–40°C (41–104°F)
  • Barometric pressure 760–545 mmHg

Vyaire CareFusion Avea Specifications


  • Pneumatic Module: 10.5” h x 16.75” w x 16” d (26.7 cm x 43.2 cm x 40.6 cm)
  • User interface Module: 13.75” h x 16.25” w x 2.5” d (35 cm x 41.3 cm x 6.4 cm)
  • Viewable Size: 12.1” (diagonal)
  • Resolution: 800 x 600


  • Ventilator w/ UIM no Compressor: < 73 lbs. (33.1 kg)
  • Ventilator w/UIM and Compressor < 80 lbs (36.3 kg)


  • 1 hr of ventilator use on internal battery (standard) or 30 minutes ventilator and compressor
  • 4 hr of ventilator use on external battery or 2 hr ventilator and compressor


  • Humidifier: Active and passive humidification
  • Circuit compliance compensation: 0.0 to 7.5 mL/cmH2O
  • Leak compensation: ON, OFF

Endotracheal Tube Setup

  • Diameter: 2.0 to 10.0 mm
  • Length: 2.0 to 30.0 cm
  • Automatic tube compensation: ON, OFF

Patient Setup

  • Patient weight: 0.1 to 300 kg
  • Patient ID: Alphanumeric 24 characters


  • Mode type: A/C, SIMV, CPAP/PSV, NPPV, nasal CPAP/IMV
  • Breath type: APRV/BiPhasic, Volume, Pressure, TCPL, PRVC, Volume Guarantee
  • Apnea backup: Volume, pressure

Primary Settings

  • Rate: 1 to 150 bpm (neonatal, pediatric), 1 to 120 bpm (adult)
  • Tidal volume: 2.0 mL to 2.5 L
  • Inspiratory pressure: 0 to 80 cmH2O (neonatal), 0 to 90 cmH2O (adult, pediatric)
  • Peak flow: 0.4 to 150 L/min
  • Inspiratory time: 0.15 to 5.0 sec
  • Pressure support ventilation: 0 to 80 cmH2O (neonatal), 0 to 90 cmH2O (adult, pediatric)
  • PEEP: 0 to 50 cmH2O
  • Flow trigger: 0.1 to 20 L/min
  • %O2: 21% to 100%
  • Pressure high (in APRV mode): 0 to 90 cmH2O
  • Time high (in APRV mode): 0.2 to 30 sec
  • Time low (in APRV mode): 0.2 to 30 sec
  • Pressure low (in APRV mode): 0 to 45 cmH2O

Advanced Settings

  • Bias flow: 0.4 to 5.0 L/min
  • Volume limit: 2.0 mL to 2.5 L
  • Inspiratory rise: 1 to 9
  • Flow cycle: Off to 45%
  • PSV rise: 1 to 9
  • PSV cycle: 5% to 45%
  • PSV Tmax: 0.15 to 5.0 sec
  • Waveform: Decelerating, square
  • Sigh: ON, OFF
  • Pressure trigger: 0.1 to 20 cmH2O
  • Demand flow: ON, OFF
  • Volumetric capnography: EtCO2 averaging 1 or 8 breaths, VCO2 averaging 3, 6, 9 or 12 minutes

Manual Controls

  • Manual breath: One breath
  • Expiratory hold: Maximum 20 sec (adult, pediatric), 3 sec (neonatal)
  • Inspiratory hold: Maximum 3 seconds
  • Increase O2: Set percentage O2 + 0% to 79% O2
  • Synchronized nebulizer: Available when peak flow > 15 L/min
  • Disconnect for suction: Active

Advanced Gas Blending System

  • Air/oxygen Blending: 21–100%
  • Internal Heliox Blending System: All concentrations from 80/20 helium/oxygen to 0/100 helium/oxygen

Advanced Patient Monitoring

  • Proximal hot wire flow sensor
  • Proximal variable orifice flow sensor (infant, pediatric, adult)
  • Proximal airway pressure monitoring
  • Tracheal pressure monitoring
  • Esophageal pressure monitoring
  • Volumetric capnography


  • AutoPEEP Airway: 0–50 cmH2O (automated)
  • MIP/P100: -60 to 120 cmH2O (automated)
  • low Flow (Pflex): Automated


  • Vent inop Ventilator inoperative
  • Loss of gas All gas sources lost
  • Circuit disconnect Patient circuit disconnected
  • Ext. high Ppeak High Ppeak longer than 5 seconds
  • Safety valve Safety valve open
  • Circuit occlusion Circuit occlusion
  • High Ppeak High peak pressure
  • Apnea interval Apnea interval exceeded
  • Loss of O2 Oxygen supply lost
  • Loss of air Air supply lost
  • Loss of heliox Heliox supply lost
  • Low battery Internal/external batteries low
  • Loss of A/C Main AC power lost
  • Low PEEP Low PEEP cmH2O
  • Low Ppeak Low PIP cmH2O
  • Low Vte Low tidal volume
  • Low Ve Low minute volume
  • Low %O2 Low FiO2 reading
  • High %O2 High FiO2 reading
  • ILV disconnect Independent lung ventilation lost
  • Alarm test Test alarm/set loudness
  • Invalid gas ID Gas type ID bad or missing
  • High Ve High minute volume
  • High rate High breath rate
  • Max insp time Inspiratory time limit exceeded
  • I:E limit I:E ratio limit exceeded
  • Fan failure Cooling fan failure
  • High Vt High tidal volume
  • Vol limit Volume limit exceeded
  • Low EtCO 3 2 Low end-tidal CO2
  • High EtCO 3 2 High end-tidal CO2
  • nCPAP pressure limit nCPAP pressure limit exceeded
  • Low nCPAP pressure Low nCPAP cmH2O
  • High nCPAP pressure High nCPAP cmH2O

Refurbished Vyaire Avea Ventilator

Soma Tech Intl offers the Vyaire Avea Ventilator up to 50% below OEM prices with the same service and warranty as new. The Avea is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the Vyaire ventilator machine are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the ventilator is working like new it undergoes a special cosmetic restoration process. The Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Vyaire Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Vyaire Avea ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Vyaire ventilator takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
