Vyaire CareFusion Viasys Vela

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Vyaire CareFusion Viasys Vela Features

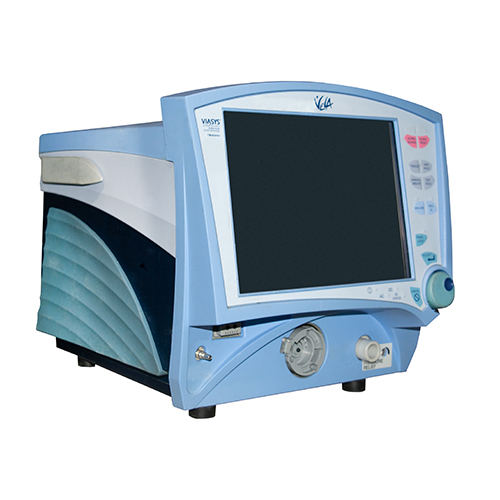

The Vyarie Carefusion Vaisys Vela is a ventilation system that offers both non-invasive and invasive means of ventilation for adult and pediatric patients. The Vela is a High-performance ventilator that is perfect for a variety of settings from emergency rooms, ICU, and even long-term care. The Vyaire Vela is available in different modes and can be customized to your specific ventilation needs. Its precise controlled gas delivery and active exhaust give you the precise treatment that is needed for each patient. The Vyarie Ventilator comes with a collar LCD touchscreen and simplified controls make it easier to use.

  • Full function conventional ventilator and noninvasive positive pressure ventilator (NPPV)
  • Multiple modes of non-invasive ventilation
  • Ventilations that is independent of air source
  • Six hour battery capacity

Vyaire CareFusion Viasys Vela Specifications

Dimensions

  • Pneumatic Module</li<>
    • Height: 10.5 in (26.7 cm)
    • Width: 17 in (43.2 cm)
    • Depth: 16 in (40.6 cm)
  • User Interface Module
    • Height: 13.75 in (35 cm)
    • Width: 16.25 in 941.3 CM)
    • Depth: 2.5 in (6.4cm)
  • Viewable size: 12.1 in (diagonal
  • Resolution: 800 x 600
  • Weight:
    • Ventilator (includes User Interface Module): 83 lb or 37,6 kg
    • Ventilator and Compressor (internal): 90 lb or 40,8 kg

Environmental

  • Storage Temperature: -20° to 60° C (-4° to 140° F)
  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Barometric pressure: 760 to 545 mmHg

Battery Power

  • 1 Hour of Ventilator Use on Internal Battery (Standard) / 30 minutes Ventilator/Compressor
  • 8 Hours of Ventilator Use on Internal (Standard) and External (Optional) Battery / 2 hours Ventilator and Compressor

Advanced Gas Blending system

  • Air/Oxygen Blending: 21 to 100%
  • Internal Heliox Blending System (option): All concentrations up to 80/20

Advanced Patient Monitoring

  • Proximal Hot Wire Flow Sensor
  • 24-hour trending of monitored respiratory parameters

Electrical / Pneumatic / Input / Output

  • Gas Composition FiO2: 21 to 100%
  • Pneumatic Input
    • Air / Heliox: 20 to 80 psig (1.38 to 5.52 bar)
    • Compressor (internal): 3 to 10 psig (0.21 to 0.69 bar)
    • Oxygen: 20 to 80 psig (1.38 to 5.52 bar)
  • Electrical
    • A/C: 100, 120, 230, 240 VAC, 47 to 65 Hz
    • D/C (Internal/External Battery); 20 to29 VDC
  • Data I/O
    • Analog Inputs (x2): 0 to 1, 5 VDC
    • Video Output: SVGA
    • Nurse Call : N.O. or N. C.

Setup

  • Humidifier: Active and passive humidification
  • Patient setu:p Alphanumeric patient ID
  • Leak compensation: ON, OFF

Mode

  • Mode type: A/C, SIMV, CPAP/PSV, NPPV (AC, SIMV, CPAP/PSV), PRVC
  • Breath type: Volume, pressure, APRV/BiPhasic
  • Apnea backup: Volume, pressure

Primary Settings

  • Rate: 2 to 80 bpm
  • Tidal volume: 50 mL to 2.0 L
  • Inspiratory pressure: 1 to 100 cmH2O
  • Peak flow: 10 to 140 L/min, (180 L/min spontaneous maximum)
  • Inspiratory pause: OFF, 0.1 to 2.0 seconds
  • Inspiratory time: 0.3 sec to 10.0 seconds
  • Pressure support ventilation: (PSV) OFF, 1 to 60 cmH2O
  • PEEP: 0 to 35 cmH2O
  • Flow trigger: 1 to 20 L/min
  • %O2: 21% to 100% FiO2
  • Pressure: high /pressure low 0 to 60 cmH2O/ 0 to 40 cmH2O
  • Time high / time: low 0.3 to 30 seconds / 0.3 to
  • NPPV Pinsp: 1 to 40 cmH2O
  • NPPV PSV: OFF, 1 to 40 cmH2O

Advanced Settings

  • Bias flow: 10 to 20 L/min
  • Volume limit: 50 mL to 2.5 L (available in PRVC/Vsync only)
  • Assured volume: OFF, 50 mL to 2.0 L
  • PC flow cycle: OFF to 70%
  • PSV cycle: 5% to 70%
  • PSV Tmax: 0.3 to 3.0 seconds
  • Waveform: Decelerating, square
  • T high sync: 0% to 50%
  • T high PSV: ON, OFF
  • T low sync: 0% to 50%
  • Sigh: ON, OFF
  • Vsync: ON, OFF

Manual Controls

  • Manual breath One breath
  • Expiratory hold Maximum 6 seconds
  • Inspiratory hold Maximum 6 seconds
  • Increase O2 100% O2 for 3 minutes
  • MIP/NIF Maximum 30 seconds
  • Nebulizer 1 to 60 minutes, synchronized

Alarms

  • High pressure 5 to 120 cmH2O
  • Low pressure OFF, 2 to 60 cmH2O
  • Low minute volume OFF, 0.1 to 99.9 L
  • High breath rate OFF, 3 to 150 bpm
  • Apnea interval 10 to 60 seconds
  • Alarm volume 65 to 85 db at one meter
  • Low EtCO2 OFF, 1 to 150 mmHg (0.1 to 20 kPa)
  • High EtCO2 OFF, 5 to 150 mmHg (0.7 to 20 kPa)

Refurbished Vyaire Carefusion Viasys Vela Ventilator

Soma Tech Intl offers the Vyaire Carefusion Viasys Vela Ventilators up to 50% below OEM prices with the same service and warranty as new. The Vyaire Ventilators is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Vela, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the ventilator to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Vyaire is working like new it undergoes a special cosmetic restoration process. The Vyaire Carefusion is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Vyaire Vela Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Vyaire Ventilators contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Vyaire CareFusion Viasys Vela If you or your facility is looking to sell your Ventilators, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Vyaire Vela Ventilators takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
