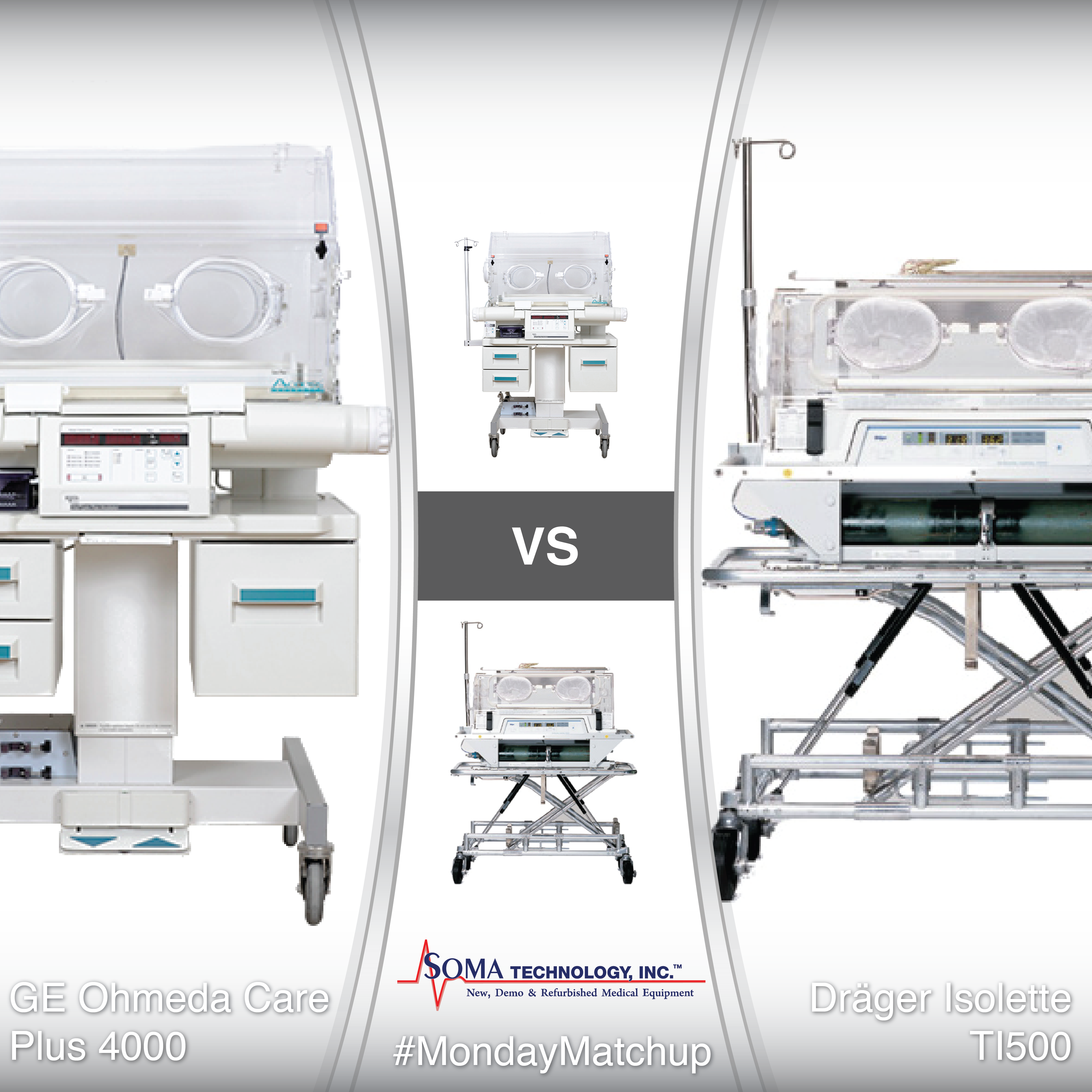

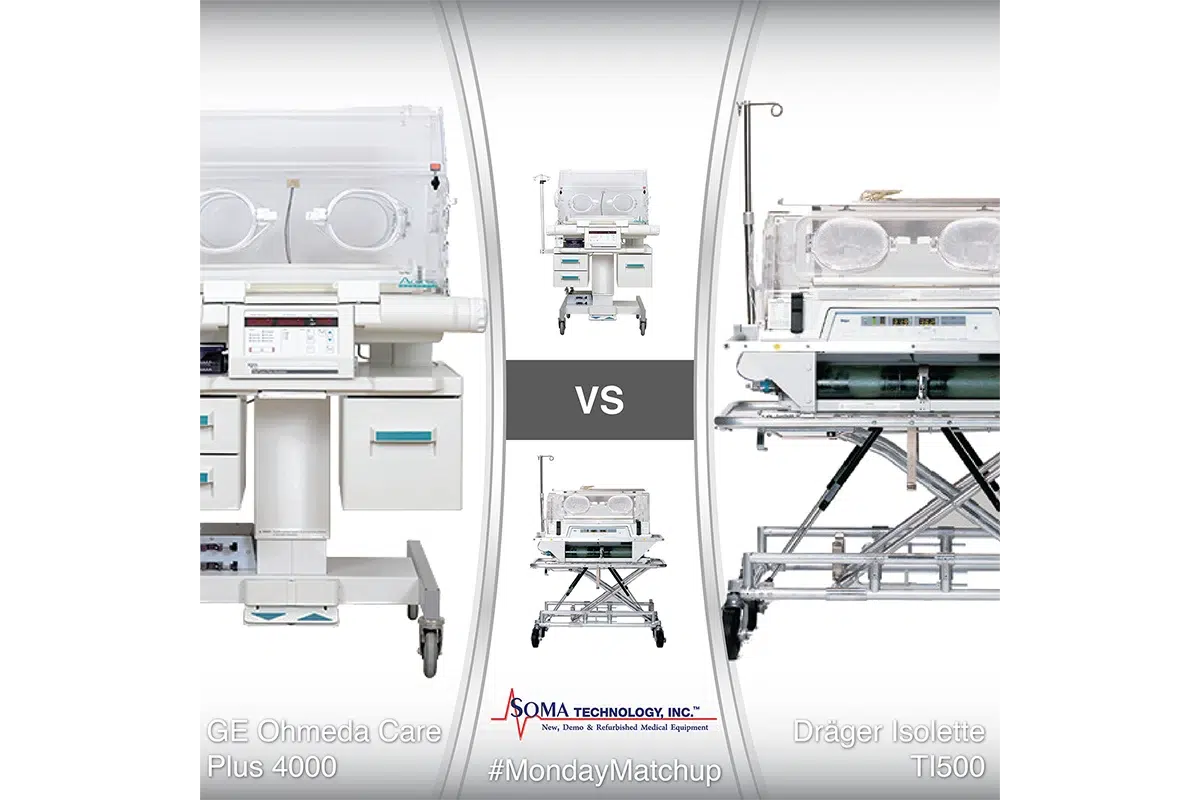

Monday Matchup – Which one are you choosing? Comment Below!

GE Ohmeda Care Plus 4000

GE Ohmeda Care Plus 4000 Features

The Care Plus® Access family of incubators delivers the latest technology for superior thermoregulation with an integrated microprocessor-based controller and optional active double wall construction. This combination helps create the precise and consistent environment so important for the neonate while meeting all of the practical clinical needs of the health care provider including access to the infant.

  • Dovetail Rail system
  • Standard Humidifier for variable control of humidity
  • Care Plus 3000: Three-position tilt for easy, precise adjustment to 0º, 3º and 6º at either end of the bed
  • Care Plus 4000: Continuous Tilt allows smooth, unlimited adjustment from 0º to 12º

GE Ohmeda Care Plus 4000 Specifications

Dimensions

Incubator with Elevating Base:

  • Height: Overall height 54 to 62 inches (136.2 to 157.5 cm)
  • Elevating base adjustable from 35 to 43 inches (88.9 to 109.2 cm) mattress to floor
  • Depth: 71.1 cm/28 in
  • Width: 83.8 cm/33 in
  • Weight: 89 kg/195 lb

Incubator with Elevating Base:

  • Height: Overall height 54 to 62 inches (136.2 to 157.5 cm)
  • Elevating base adjustable from 35 to 43 inches (88.9 to 109.2 cm) mattress to floor
  • Depth: 71.1 cm/28 in
  • Width: 83.8 cm/33 in
  • Weight: 89 kg/195 lb

Drawer Packages for Elevating Base or Stationary Pedestal:

  • Overall: 28 x 29 x 46 cm/11 x 11.5 x 18.25 in
  • Single deep drawer: 25 x 23 x 42 cm/10 x 9 x 16.5 in
  • Dual drawer: 11 x 23 x 42 cm/4.5 x 9 x 16.5 in

Incubator with Cabinet:

  • Height: 141 cm/55 in
  • Depth: 64.6 cm/25.5 in
  • Width: 88.9 cm/35 in
  • Weight: 84 kg/185 lb

Incubator Characteristics:

  • Casters: 5 inch diameter, 2 locking, 2 non-locking
  • Mattress: 34.8 x 65 cm/13.7 x 25.6 in
  • Mattress to Hood: 16 in/41 cm
  • Door Height: 11 in/28 cm
  • Tilt: 0°, 3° and 6° (CP 3000)
  • Positions: Continuous from 0° to 12° (CP 4000)
  • Port holes: 6
  • Tubing ports: 6

Electrical Power Requirements

  • 120 Vac 60Hz
  • Models: 115 V ±10% 5.7 amps
  • Conforms to IEC 601.1, UL 544 and CSA 22.2 No. 125 requirements
  • Nominal power consumption: 450 watts at maximum heater output
  • Line voltage compensation: Input voltage is monitored and the heat output is adjusted to compensate for line voltage variations
  • Leakage currents: Less than 100 micro amps on 120V units
  • Leakage at patient probe: Less than 50 micro amps on 120V unit

Operation Enviroment

  • Operating temperature range: 20° to 30°C/68° to 86°F
  • Storage temperature range: -25° to 60°C/13° to 140°F
  • Operating humidity range: 0 to 90%

System Control Characteristics

  • Microprocessor based control system: Self-test functions are performed at power-up and during normal operation
  • Patient Control (Servo) Mode: 35° to 37°C/95° to 98.6°F
  • Air Control (Manual) Mode: 20° to 37°C/73.4° to 98.6°F
  • Up to 39°C/102.2°F with control panel override switch
  • Air Velocity: Average <10 cm/sec with inner wall
  • Temperature variability: Less than ±0.3°C
  • Resolution: ±0.1°C or 0°F
  • Probe interchangeability: ±0.1°C/0.2°F
  • Average oxygen input concentration range:
    • 5 L/min 25 to 45%
    • 10 L/min 35 to 65%
    • 15 L/min 45 to 70%
  • Humidification: Standard – 10 to 75% dependant on nursery environment and incubator temperature setting
  • Servo – 40



VS

Drager Isolette TI500 Incubator

Dräger Isolette TI500 Features

The Isolette TI500 Transport Incubator from Dräger Medical is a self-contained, mobile, intensive care unit. Consistent air temperature is essential to the health of a premature infant. The Isolette TI500 Transport Incubator has a double wall design which reduces radiant heat loss from the infant during transport between departments or between hospitals.

  • Double wall
  • Skin temperature probe
  • O2 inlet
  • Examination lamp
  • 2 access doors
  • 2 disposable infant restraint straps
  • 1 Iris port
  • 2 Quiet Touch™ port doors
  • 6 tubing ports
  • Locking power control receptacles
  • DC cable
  • 2D or 2E size tank mount

Dräger Isolette TI500 Specifications

Dimensions

  • Height: 20 in (50.8 cm)
  • Width: 20.8 in (52.7 cm)
  • Length: 37.8 in (95.9 cm)
  • Weight: 108.5 lbs (49.2 kg)
  • Distance From Vertical Hood to Mattress: Low Hood 8.25 in (21 cm)

General

  • O2 Concentration Range: 21% to 58% minimum
  • Humidity Capacity: 50% to 70%
  • Noise Level: <60 dBA

Performance

  • Temperature Set Range: 22.0 °C – 38 °C (71 °F – 100 °F)
  • Temperature Rise Time: 30 minutes
  • Temperature Variability: ≤1.0 °C
  • Temperature Overshoot: ≤2.0 °C
  • Temperature Uniformity: ≤1.0 °C
  • Correlation of Display Temperature to Set Point at Temperature Equilibrium: ≤ 2.0 °C in l0-20 °C ambients ≤1.5 °C in 20-30 °C ambients
  • Humidity Pad: Holds 400 ml.(14 oz) sterile distilled water with no significant spillage for up to 45° tilt in either direction.
  • Air Filter: Removes >99% of airborne particles greater than 0.5 micron diameter
  • Relative Humidity: 50 to 70% for 10-12 hours using humidity pad
  • Check Calibration Key: 36.0 ° ± 0.l °C

Battery

  • Incubator: 1 battery standard (2nd optional)
  • Type: Vented rechargeable, 12 Vdc, 24 AH gel-type battery (lead acid)
  • Battery rating: Incubator maintains a differential of 25 °C (77 °F) between ambient and set point for 90 minutes on 1 battery or 180 min.on 2 batteries at full heater power
  • Life expectancy: 200 complete charge/discharge cycles minimum
  • Charge time: 10 hours per battery from full discharge
