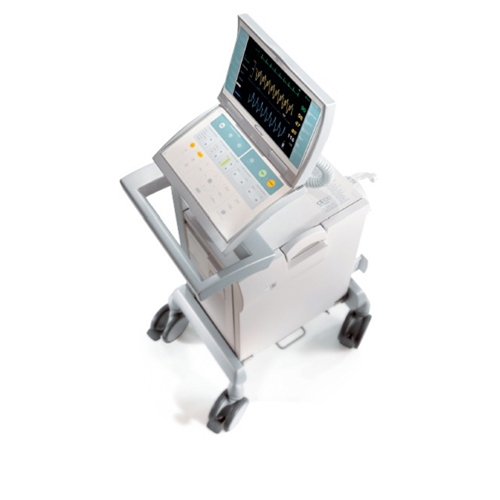

Maquet Datascope CS100

Features:

• The CS100 with IntelliSync offers one-button start up, automatically adapting to changing conditions, making it the right choice for any patient condition
• Automatically evaluates and selects optimal trigger source and lead
• Sets inflation at the dicrotic notch and deflates IAB at the start of systole
• Responds to changes in signal quality by selecting new trigger source Automated trigger source and timing management provide continuous, consistent support for your patient

Specifications:

• Color Display: 8.3”(21cm)W x 6.2”(15.8cm)H; up 45°,down 55°, right 70°, left 70° viewing angle; Rotates 330°; Tilts 180°; Detachable; Laptop-like closure for storage and protection .
• Preferences Menu: User may select display sweep speed (25 or50mm/sec), brightness (low,med.,high);balloon wave form (on/off); ECG inflation markers (on/off); flashing alarms (on/off).
• Operation Modes: Auto, Semi Auto, Manual
• ECG Trigger:Threshold dynamically adjusted by system for high sensitivity and selectivity of the R-wave detection; Minimum = 120µV ± 20µV at normal gain; 40µV at max. gain.
• Pressure Trigger: Default trigger threshold is automatically adjusted to 38% of the difference between peak systolic and end diastolic (avg. over multiple cycles); In variable mode: User adjustable between 7 and 30 mmHg ± 3 mmHg
• Pacer A Trigger: R-wave detections (as above) except pacer blanking is extended to 100 ms
• Pacer V/A-V Trigger: V Pacer: fixed at rate up to 185 bpm (no demand pacing) A-V Pacer: fixed at rate up to 125 bpm (no demand pacing) with A-V intervals between 80-224 ms
• Internal Trigger: Variable mode: 40-120 bpm; Normal mode: 80 ± 1 bpm
• Tall T-Wave Rejection (ECG and Pacer A Mode): Rejects all T-Waves where Q-T interval is <300 ms and the amplitude is <70% of QRS input amplitude
• Pacer Rejection (ECG and Pacer A mode): Rejects all pulses of amplitude ± 2.0 mV to ± 700 mV (ECG and durations between 0.1 ms to 2.0 ms with: 1) No tail; 2) 100 ms time constant tail < 1 mV; 3) 25 ms time constant tail < 1 mV; 4) 4 ms time constant tail < 2 mV
• ECG Leads: In Auto Operation Mode: I, II, III, External In Semi-Auto Mode: I, II, III, AVR, AVL, AVF, V, External (12 lead compatibility)
• ECG Gain (default): 1 V output per 1 mV input ±5% (waveform automatically scaled to occupy ECG display window)
• Gain (variable): 0.15 to 3.0 cm/mV ±20% (autoscaling disabled)
• Frequency Response: 0.5-12 Hz (display); 0.5-135 Hz (Output to Monitor)
• Defibrillator Protection: Discharge levels 360 J (trace returns to screen in 5 sec. max)
• ESIS: Automatic suppression with internal ECG amplifier
• AP Source Selection: Transducer/external (menu based)
• AP Input Sensitivity: 5.0µV/V/mmHg
• Excitation: +5 VDC ± 5% @ 130 mA (max)
• Frequency Response: DC to 12 Hz (display)
• External Mon. Inputs: ECG: 1 V/mV (nominal); AP: 1 V/100 mmHg (nominal)
• ECG/BP Output: Phone Jack: ECG 1V / mV, BP 1V/100 mmHg
• Mains Voltage: 100-120 VAC ± 10% or 220-240 VAC ± 10%
• Mains Frequency: 50/60 Hz ± 3 Hz
• Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, 3 hrs.(approx. @ 90 bpm)
• Battery Type: Maintenance free; Sealed lead-acid
• System Compressor: Dual head diaphragm pump with brushless DC motor
• IAB Helium (He+): Medical-grade; 0.5 L (2900 psi) or 0.69 L (2200 psi)
• He+ Endurance: 1.8 mo. (.5 L); 2 mo. (0.69 L): continuous operation -(nominal): 24 hrs./day
• Condensate Removal: Fully automatic condensate removal and disposal
• WIN-IABP (optional): Software for remote clinical assistance and training
• Service Diagnostics: Built-in software for system analysis and troubleshooting
• Modem Data Rate: Up to 9,600 baud
• Size on Cart: 45.2”H x 17.6”W x 23.4”D (114.8 cm x 44.7 cm x 59.4 cm) max
• Size off Cart: 28.2”H x 11.3”W x 21.5”D (71.6 cm x 28.7 cm x 54.6 cm) max
• Console Weight: 76.8 lbs. (34.8 Kg) nominal
• Monitor: 9.5 lbs. (4.3 Kg) nominal
• Hospital Cart Weight: 64.0 lbs. (29.1 Kg) nominal
• Internal Battery: 34 lbs. (15.4 Kg) nominal
• UTS Version: Rugged base which attaches to docking station (DS)
• Dimensions: 30.0”H x 22.5”W x 13.2”D (76.2 cm x 57.2 cm x 33.5 cm)
• Console Weight: 133.2 lbs. (60.4 Kg)
• Lightweight DS*: 17.8” (45.1 cm) x 20.0” (50.8 cm)
• Op. Temp: 10°C – 40°C
• Op. Humidity: 5 – 95% (R.H.) non-condensing
• Op. Altitude: 0 – 12,000 feet (3,657 m); automatic altitude correction
