Philips Respironics V60 Ventilator

October 4, 2017

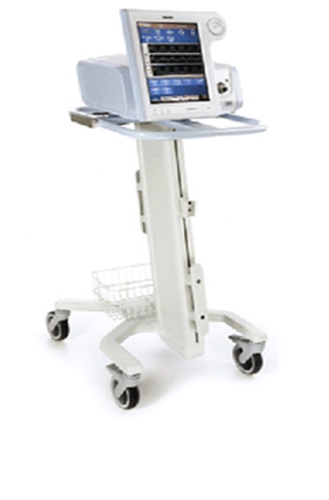

Philips Respironics V60 Ventilator

Philips Respironics V60 Features

The Respironics V60 Ventilator combines Respironics’ ventilation expertise with Philips’ focus on simplifying advanced health care. The result is the noninvasive ventilation gold standard with an invasive ventilation safety net and an interactive display that helps simplify patient management. Because every breath matters and every breath is different, patients need a ventilator that always follows their breathing pattern, whatever their acuity. The Respironics V60 uses auto-adaptive technology to help ensure patient synchrony and therapy acceptance. Improved signal processing technology is finely tuned for both adult and pediatric patients.

  • High resolution graphics facilitating waveform interpretation.
  • Internal 6-hour battery enables intra-hospital transport (actual battery time will vary depending on user settings and battery charge level). Standby mode supports patient-clinician interaction without nuisance alarms.
  • Data communication capabilities support hospital connectivity.
  • Respi-Link, a remote communication tool, allows efficient system diagnostics and upgrades via internet.
  • AVAPS maintains a target tidal volume in a pressure limited mode. It provides extra assurance similar to a volume limited mode with the safety of a pressure limited mode.
  • CPAP with C-Flex offers three levels of flow-based expiratory pressure relief. This option leads to improved sleep quality and patient comfort, adding greater flexibility and improved treatment acceptance.
  • PCV can be used when greater control of the patient’s breathing pattern is required. Additionally, the option of ventilating a patient invasively gives the caregiver greater flexibility in the approach to treatment.
  • ICU-grade NIV performance with enhanced safety and monitoring.
  • ‡Treatment for a wide range of clinical severities and patients from pediatric to adult.
  • ‡

  • Flexibility for intra-hospital transport with an internal 6-hour smart battery.

Philips Respironics V60 Specifications

Patient Types

  • Adult
  • Pediatric •(Less than or equal to 20 kg)


  • Continuous positive airway pressure (CPAP)
  • Spontaneous with timed backup (S/T)
  • Pressure control ventilation (PCV)
  • Average volume assured pressure support (AVAPS) —optional


  • C-Flex OFF, 1–3
  • CPAP 4–25 cmH2O
  • EPAP 4–25 cmH2O
  • IPAP 4–40 cmH2O
  • I-time (inspiratory time) 0.30–3.00 sec
  • Max P (AVAPS maximum IPAP) 6–40 cmH2O
  • Min P (AVAPS minimum IPAP) 5–30 cmH2O
  • O2 (oxygen percent) 21–100%
  • Ramp time OFF, 5–45 min
  • Rate (respiratory rate) 4–60 BPM
  • Rise (rise time) 1–5
  • Triggering and cycling Auto-adaptive (Auto-Trak)
  • AVAPS target tidal volume 200–2000 ml

Monitored Parameters

  • Breath Phase / Trigger Indicator Spont, Timed, Exhale
  • PIP 0–50 cmH2O
  • Patient / Total Leak 0-200 l/min BTPS
  • Patient trigger 0–100%
  • Respiratory rate 0–90 BPM
  • Ti/Ttot 0–91%
  • Minute volume ²OPLQ%736
  • Tidal volume 0–3000 ml BTPS


  • Oxygen inlet pressure range 276–600 kPa (40–87 psig)
  • Weight 10.9 kg (24lb) with optional battery; 10.0 kg (22 lb) without optional battery
  • Dimensions 33.7 cm (13.3 in) height; 39.4cm (15.5 in) weight; 42.9 cm (16.5 in) depth


  • AC voltage 100–240 VAC
  • AC frequency 50–60 Hz
  • AC power 300 VA
  • Battery operating time 6 hours in normal conditions
