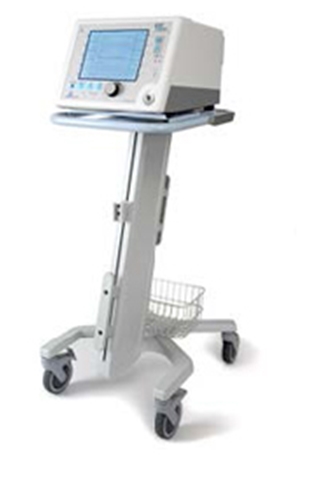

Philips Respironics BiPAP Vision Features

Respironics Vision has an integrated Display Screen displays easy-to-read real time graphics in waveform or bar scale format, providing the following measured and calculated numerical values to assist with ventilator management:

  • IPAP
  • Total Breath Rate
  • Exhaled Minute Ventilation
  • % Patient Triggered Breaths
  • Exhaled Tidal Volume
  • EPAP
  • Ti/Tot
  • Peak Inspiratory Pressure
  • Patient or Total Leak
  • Integrated Display Screen
  • Oxygen Control up to 100%
  • Pressure Regulation at Mask
  • BiPAP
  • Auto-Trak Sensitivity
  • Alarm Module

Philips Respironics BiPAP Vision Specifications

Modes

CPAP

  • Control Range: 4 to 20 cm H2O
  • Control Increments: 1 cm H2O

S/T

  • Control Range: 4 to 40 cm H2O
  • Control Increments: 1 cm H2O

PAV/T

  • Control Range: Quick Start Menu
  • Control Increments: Obstructive, Restrictive, Mixed, Normal

Control Ranges & Increments: Parameters

IPAP

  • Control Range: 4 to 40 cm H2O
  • Control Increments: 1 cm H2O

EPAP

  • Control Range: 4 to 40 cm H2O
  • Control Increments: 1 cm H2O

CPAP

  • Control Range: 4 to 40 cm H2O
  • Control Increments: 1 cm H2O

Rate

  • Control Range: 4 to 40 BPM
  • Control Increments: 1 BPM

Timed Inspiration

  • Control Range: 0.5 to 3.0 sec
  • Control Increments: 0.1 sec

IPAP Rise Time

  • Control Range: 0.05 to 0.40 sec
  • Control Increments: 4 set points: .05, .1, .2, .4 sec

Oxygen Concentration (%O2)

  • Control Range: 21 to 100%
  • Control Increments: 4% from 21 to 25% 5% from 25 to 100%

Control Ranges & Increments: Alarms

High Pressure

  • Control Range: 5 to 50 cm H2O
  • Control Increments: 1 cm H2O

Low Pressure

  • Control Range: Disabled; 0 to 40 cm H2O
  • Control Increments: 1 cm H2O

Low Pressure

  • Control Range: Delay 0 to 60 sec
  • Control Increments: 1 sec

Apnea

  • Control Range: Disabled; 20 to 40 sec
  • Control Increments: 4 set points: Disabled, 20, 30, 40 sec

Low Minute Ventilation

  • Control Range: Disabled; 1 to 99 L/min
  • Control Increments: 1 L/min

High Rate

  • Control Range: 4 to 120 BPM
  • Control Increments: 4 set points: 1 BPM

Low Rate

  • Control Range: 4 to 120 BPM
  • Control Increments: 4 set points: 1 BPM

Display Ranges & Increments

IPAP

  • Display Range: 0 to 50 cm H2O
  • Display Resolution: 1 cm H2O

EPAP

  • Display Range: 0 to 50 cm H2O
  • Display Resolution: 1 cm H2O

CPAP

  • Display Range: 0 to 50 cm H2O
  • Display Resolution: 1 cm H2O

Rate

  • Display Range: 0 to 150 BPM
  • Display Resolution: 1 BPM

Exhaled Tidal Volume (VT)

  • Display Range: 0 to 4000 ml
  • Display Resolution: 1 ml

Minute Ventilation (Min Vent)

  • Display Range: 0 to 99 L/min
  • Display Resolution: 1 L/min

Total Leak (Tot Leak)

  • Display Range: 0 to 300 L/min
  • Display Resolution: 1 L/min

Patient Lead (Pt. Leak)

  • Display Range: 0 to 300 L/min
  • Display Resolution: 1 L/min

Peak Inspiratory Pressure (PIP)

  • Display Range: 0 to 50 cm H2O
  • Display Resolution: 1 cm H2O

Percent of Pateint Triggered Breaths (Pt. Trig)

  • Display Range: 0 to 100%
  • Display Resolution: 1%

Ti/Ttot

  • Display Range: 0 to 100%
  • Display Resolution: 1%
