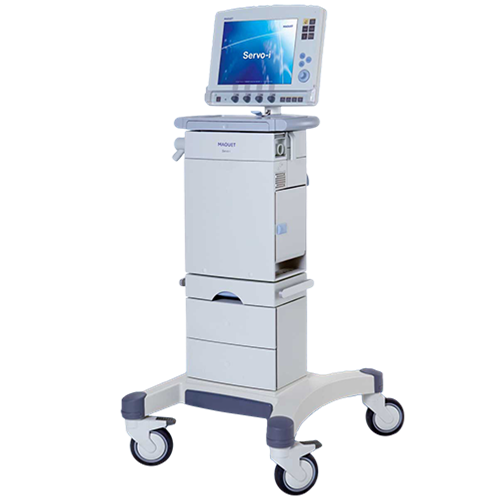

Siemens Maquet Servo-i

Siemens Maquet Servo-i Features

The Siemens Servo-i is available in three main configurations; Infant, Adult, and Universal. These main configurations for the servo i are equipped with a number of ventilation modes that are suitable for each patient category. Further ventilation modes can be installed via software upgrades. The Siemens Maquet Servo-i can be divided into two main units; The User Interface and the Patient Unit.

  • Enables treatment of all patient categories.
  • Transportation with no loss of treatment quality within and between hospitals.
  • Allows for investigation of different treatment options like Open Lung Tool and Automode.
  • Invasive ventilation.
  • Non-invasive ventilation with leakage compensation.
  • CO2 Analyzer for end tidal carbon dioxide measurement that may give important insight into the efficiency of the ventilation.
  • Y sensor measurement, for neonatal/pediatric and adult patients. Enables measurement of pressure and flow as close to the patient’s airway as possible.
  • Nasal CPAP.
  • Heliox – gives a more laminar flow that reduces work of breathing.
  • Stress Index – will monitor hyperinflation or repeated alveolar collapse, thus allowing the identification of injurious ventilation (VILI).7
  • Ventilation Record Card – Facilitates research work and presentations.
  • Maquet ventilator accessories and consumables that are fully tested and designed to work optimally with Servo ventilators.

Siemens Maquet Servo-i Specifications

Dimensions

  • Height: 51.8 In (131.5 cm)
  • Width: 22 In (56 cm)
  • Depth: 25.2 In (64 cm)
  • Weight: 44.1 lbs (20 kg)

General

  • Method of triggering: Flow, pressure and Edi (optional)
  • Max. operating pressure: Approximately 115 cmH2O
  • Bias flow: 2 l/min

Inspiratory Channel

  • Pressure drop: Max. 6 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • Gas delivery system: Microprocessor controlled valve
  • Inspiratory flow range:
    • Adult: 0 to 3.3 l/s
    • Infant: 0 to 0.55 l/s

Expiratory Channel

  • Pressure drop: Max. 3 cmH2O at a flow of 1 l/s
  • Internal compressible factor: Max. 0.1 ml/cmH2O
  • PEEP regulation: Microprocessor controlled valve
  • Rise Time, Expiratory Flow Measurement: <12 ms for 10 – 90 % response at flow of 0.05 – 3.2 l/s
  • Expiratory flow range: 0 to 3.2 l/s

Screen

  • Type: TFT-LCD module
  • Size: 31 cm (12.1”) diagonal
  • Viewing area: 246.0 x 184.5 mm

Operating Conditions

  • Operating temperature: +10 to +40ºC
  • Relative humidity: 15 to 95% non-condensing
  • Atmospheric pressure: 660 to 1060 hPa
  • Lowest pressure in breathing system: –400 cmH2O

Power Supply

  • Power supply, automatic range selection
    • 100 – 120 V AC ±10%
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Plug-in battery module
    • Battery backup: Two battery modules are delivered with the ventilator.
    • 50 – 60 Hz
    • 220 – 240 V AC ±10%
    • 50 – 60 Hz
  • Battery capacity: Rechargable, 12 V, 3.5 Ah each
  • Recharge time: Approximately 3 h/battery
  • Battery backup time: At least 3 h, when using six batteries.
  • External 12 V DC: 12.0 V – 15.0 V DC, 10 A
  • Max power consumption
    • At 100 – 120 V: 2 A, 190 VA, 140 W
    • At 220 – 240 V: 1 A, 190 VA, 140 W
