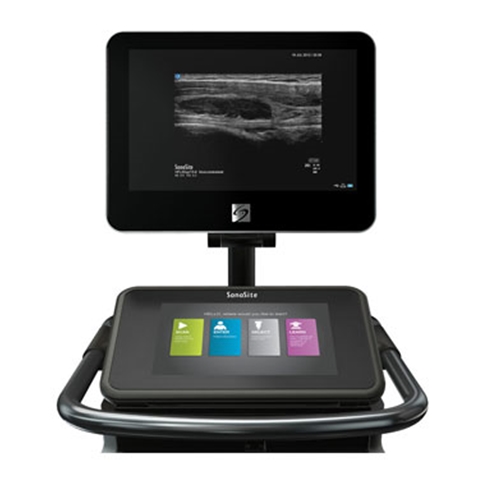

SonoSite X-Porte

SonoSite X-Porte Features

The SonoSite X-Porte was developed from the ground up to incorporate a breakthrough, proprietary beam-forming technology: XDI (Extreme Definition Imaging). This signal analysis algorithm shapes X-Porte’s ultrasound beam to pinpoint precision. The result? Artifact clutter is substantially reduced while contrast resolution is significantly enhanced.

• Extreme Definition Imaging (XDI™)
• Intuitive Touchscreen Interface
• Real-time, Scan-along Learning
• Unmatched Durability and Reliability

SonoSite X-Porte Specifications

System Specifications

• Stand Dimensions: 26.4” L x 21.2” W
• Stand Height (max): 64” (monitor up)
• Stand Height (min): 42.2” (monitor down)
• Height Adjustment: 9” travel
• 12.1” Capacitive Touch Screen
• Multi-touch gestures for system controls
• Control Panel Tilt Adjustment: 0˚ to 110˚
• Side to Side Turning: +/- 90 degrees from center
• Monitor Tilt: 85 – 110˚ (5˚ tilting forward from vertical, 20˚ tilting back f rom vertical)
• Casters: 5” Swivel, 4 Locking
• System Boot up: < 20 secs
• HD Monitor: 19” diagonally
• Image Size: 800 x 600
• Screen Size: 1280 x 800
• Screen Resolution: 1680 x 1050 (16:10)
• Architecture: All digital broadband
• Dynamic Range: Up to 183 dB
• Gray Scale: 256 shades
• HIPAA Compliance: Comprehensive tool set

Imaging Modes

• 2D, Broadband Imaging
• Tissue Harmonic Imaging (P21xp, C60xp)
• Pulse Inversion Harmonic Imaging
• M-mode
• Velocity Color Doppler
• Color Power Doppler
• Pulsed Wave Doppler
• Pulsed Wave Tissue Doppler
• Continuous Wave Doppler, ECG

Image Processing

• Extreme Definition Imaging (XDI)
• SonoAdapt Tissue Optimization
• SonoHD2 Imaging Technology
• Dual Imaging
• Dual Color Imaging
• SonoMB Multibeam Technology
• AutoGain
• AutoGain Brightness Adjust
• Restore Default Gains
• Dynamic Range
• Duplex Imaging
• 8x Zoom Capability
• Post Processing: Dynamic Range, Zoom
• 2D Image Optimization: Average and Difficult
• Overall Gain, Near and Far Field Gain Control
• Color and Doppler Flow Optimization (low, medium, high)
• Color Variance Mode
• 2D Reduced Imaging Sector

User Interface and Programmable Controls

• Capacitive Touch Screen
• Multi-touch gestures for system controls Configurable User Interface: Start Screen, More Controls, Programmable Keys, System Parameters Clinical Display Information
• Programmable Keys (9): Functions: Show/Hide, End Exam, Reset Gain to

Default Values, Print, Save Image, Save Video Clip, AutoGain, Calcs, None

• Configurable Start Screen: Start, Scanning, Transducer/Exam Selection, Patient Information
• Virtual QWERTY Keyboard for annotation
• User defined exam types (up to five exam types for each exam type/transducer combination). For example, you can define five different exam types for Abdomen on P21xp transducer and five exam types for Abdomen on the C60xp transducer.
• Image Acquisition Keys: Save, Review, Report, Video Clip Store, Video Clip Edit, DVR
• Labeling of saved images
• Display formats for Duplex Imaging: 1/3 and 2/3, ½ and ½, 2/3 and 1/3, side by side and full-screen duplex
• Doppler Controls: angle, steer, scale, baseline, sample volume, gain and volume

Measurements

• 2D: Distance – 8 measurements, Ellipse, Manual Trace Volume, Target Depth, Bladder Volume
• Doppler: Velocity measurements, Pressure Gradient, Elapsed Time, Acceleration, Heart Rate, Resistive Index, Systolic/Diastolic Ratio, Measurements can be traced manually or automatically.
• Automatic trace results (determined by exam type): Velocity Time Integral, Peak Velocity, Mean Pressure Gradient, Mean Velocity on Peak Trace, Press Gradient, Cardiac Output, Peak Systolic Velocity, Time Average Mean, Systolic/Diastolic Ratio, Pulsatility Index, End Diastolic Velocity, Acceleration Time, Resistive Index, Time Average Peak, Gate Depth, Heart Rate.
• M-mode: All points guided workflow, distance and time measurements, Heart Rate
• Editable results data sheets and reports
