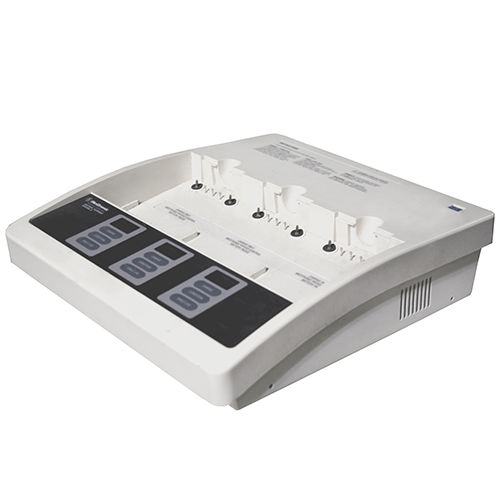

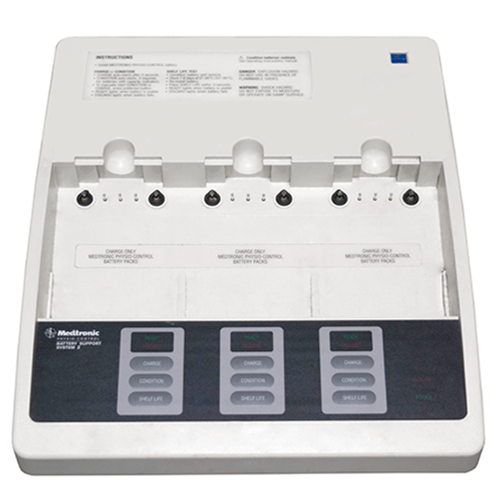

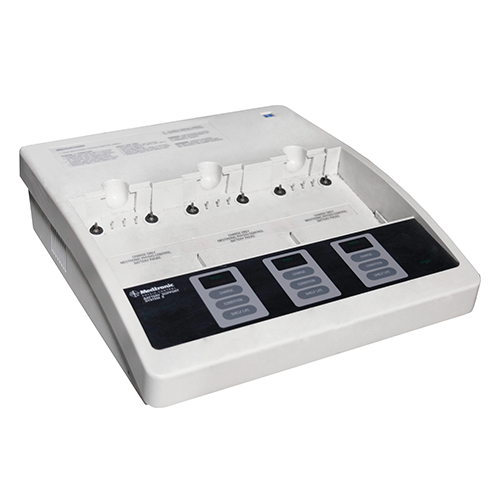

Physio-Control Battery Support System 2

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Physio-Control Battery Support System 2 Features

The Physio-Control Battery Support System 2 can charge and recondition 3 batteries at once. It can optimize the maintenance on both NiCd (fastback, Fastpak 2, and life-am NiCd) and sealed Lead-acid (life-am SLA) batteries. Enhanced NiCd pulse charging algorithm allows for optimal battery performance while conditioning the battery with a series of charges and deep charges will optimize the battery capacity. The Physio-Control Battery Support System 2 was designed to work with the Lifepak 12, Lifepak 11, and Lifepak 10 transport defibrillators.

  • User-friendly, providing a clear indication when batteries are ready to use or need to be discarded.
  • Enhanced NiCd pulse charging algorithm.
  • Charges both NiCd batteries and SLA batteries.
  • Innovative platform design.



Physio-Control Battery Support System 2 Specifications

Dimensions

  • Height: 3.8” (9.7 cm)
  • Width: 12.4” (31.5 cm)
  • Depth: 14.8” (37.6 cm)
  • Weight: 18 lb (8.2 kg)

General

  • Number of Battery Wells: 3; Charging discharging, conditioning, and shelf life test capability in all battery wells.
  • Fuses: Two fuses in the power input module (5×30 mm F 1A 250 V, Low or high break capacity) per IEC 127-2, sheet 1 or 2, such as Bussman GDA or GDP, Littlefuse 216, or Schurter SP or SFS.

Environmental

  • Altitude, Operating: To 4,572 m (15,000 ft)
  • Altitude, Non-operating: To 5,500 m (18,045 ft)
  • Humidity: 5 to 95%
  • Temperature, Operating: 5° to 45°C (41° to 95°F) (commercial); 0° to 50°C (32° to 122°F) (U.S. Military)
  • Temperature, Storage: -40° to 70°C (-40° to 158°F) (commercial); -46° to 71°C (-51° to 160°F) (U.S. Military)
  • Vibration: IEC 68-2-6 (commercial); MIL-STD-810E, Method 514.4 Category 4, 6, 8 (U.S. Military)

Fastpak/Fastpak 2 Batteries

  • Type: Nickel Cadmium
  • Capacity: 1.2 amp hours
  • Charge Time: 1.5 hours
  • Conditioning Time: 7 hours typical
  • Battery Life: up to 5 years or 750 cycles

Lifepak NiCd Batteries (1.6 or 1.7 Ah)

  • Type: Nickel Cadmium
  • Capacity: 1.6 or 1.7
  • Charge Time: 2.25 hours
  • Conditioning Time: 8 hours typical
  • Battery Life: up to 5 years or 500 cycles

Lifepak NiCd Batteries (2.4 Ah)

  • Type: Nickel Cadmium
  • Capacity: 2.4 amp hours
  • Charge Time: 3 hours
  • Conditioning Time: 9 hours typical

Lifepak SLA Battery

  • Type: Sealed Lead Acid
  • Capacity: 2.5 amp hours
  • Charge Time: 6 hours
  • Conditioning Time: 28 hours typical
  • Battery Life: up to 3 years or 100 cycles
