CardioQuip MCH-1000(i)

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

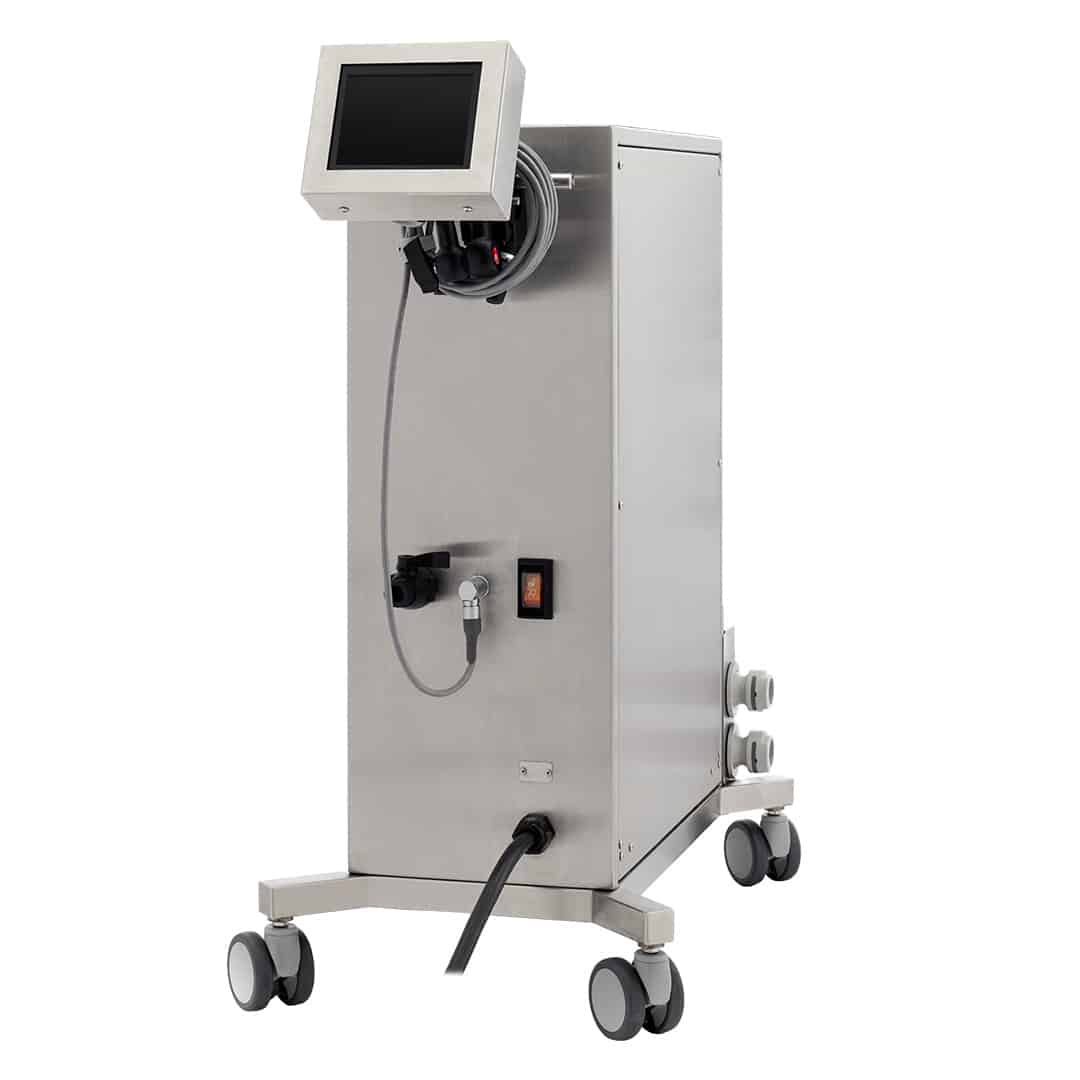

CardioQuip MCH-1000(i) Features

The CardioQuip MCH-1000(i) is an advanced heater/cooler system designed for precise temperature control during cardiopulmonary bypass and thermal regulation procedures. Equipped with Adaptive Temperature Control technology, it provides consistent performance while reducing operator intervention. The system features a touchscreen interface for intuitive control and real-time monitoring of temperature, pump speed, and system status. Integrated alarms and failsafe mechanisms ensure patient safety and equipment reliability. With versatile configuration options, the MCH-1000(i) meets the demands of modern operating rooms, delivering efficiency and dependability.

  • Precise Temperature Control: Adaptive technology maintains temperatures from 0°C to 42°C with ±0.5°C accuracy.
  • Intuitive Touchscreen Interface: Simplifies operation with customizable presets, pump speed control, and system diagnostics.
  • Advanced Safety Mechanisms: Includes audio-visual alarms and redundant hardware for reliable performance.
  • Efficient Workflow: Self-priming, automatic defrost, and low-maintenance design optimize operation.
  • Versatile Design: Compatible with optional refrigeration and cardioplegia modules for tailored configurations.

CardioQuip MCH-1000(i) Specifications

Dimensions

  • Height: 35 in (89 cm)
  • Width: 16 in (41 cm)
  • Depth: 26 in (66 cm)
  • Weight (empty/full): 85 lb (39 kg) / 155 lb (70 kg)

General

  • Water Capacity: Min:3 gal (12 L); Max:9 gal (36 L)
  • Water Connections: Quick-connect, no-spill two-way shutoff fittings. Tank drain accepts standard garden hose (GHT) fitting.
  • Maximum Pressure: 12 psi (83 kPa) (closed loop, blocked flow)
  • Temperature Control: Range 0.0 – 42.0ºC, Accuracy ±0.5ºC, Setting 0.1ºC
  • Induced Airflow: <50 ft3 /min
  • Power Consumption: Max Peak 1900 W, Typ < 1740 W

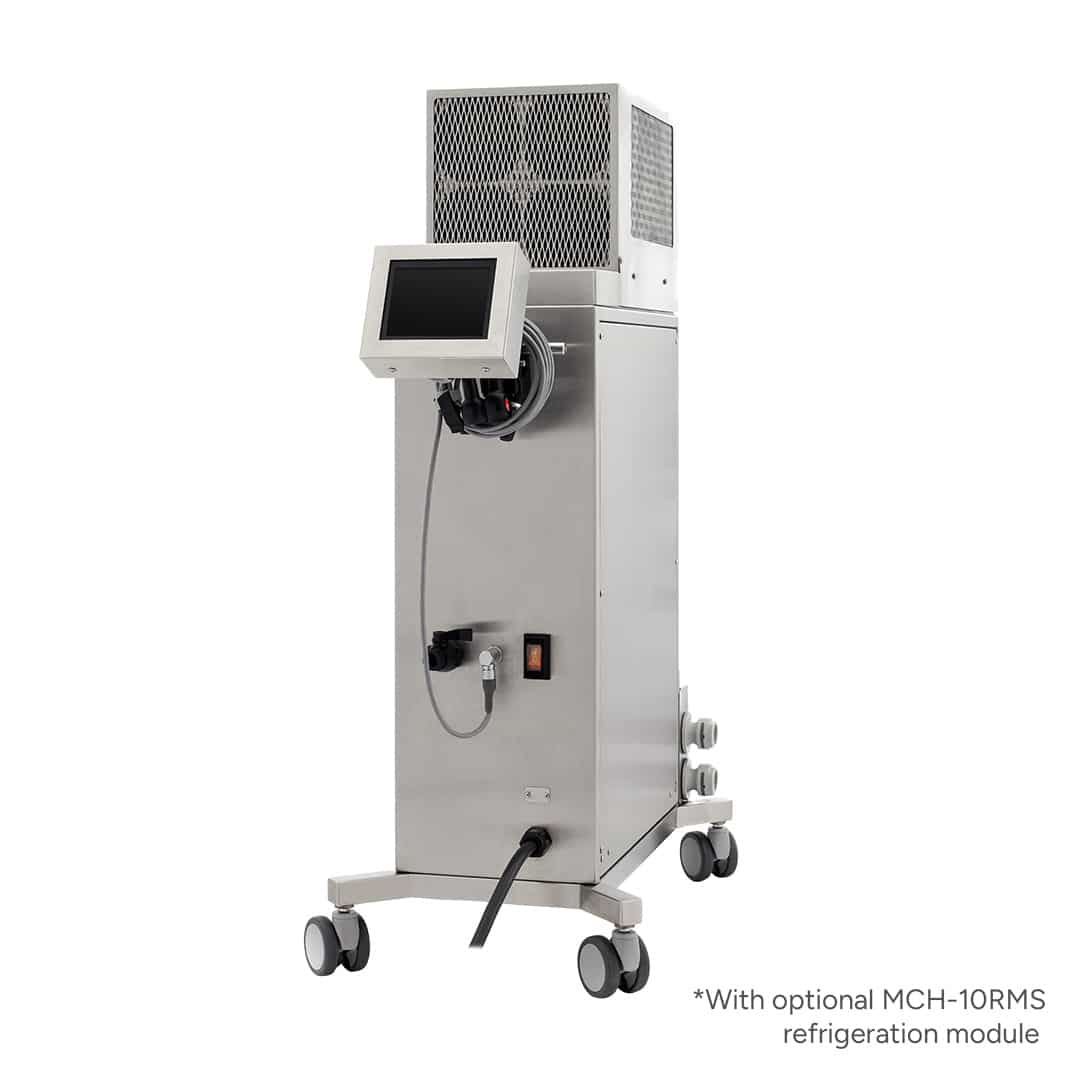

Optional MCH-10RMS Refrigeration Module

  • Dimensions: 20.5×10.5×26.5 in (52x27x68 cm)
  • Weight: 72 lb (33 kg)
  • Induced Airflow: <300 ft3 /min
  • Power Consumption: Max Peak 690 W, Typ <600 W

Soma Tech Intl offers the CardioQuip MCH-1000(i) heater/cooler at prices up to 50% below OEM rates, providing the same service and warranty as a new unit. This CardioQuip heater/cooler undergoes both technical and cosmetic refurbishment to ensure it functions and appears as if it were new. During the refurbishment of the MCH-1000(i), our in-house biomedical engineers, who are highly skilled and certified to work on heater/coolers, meticulously inspect and test the unit. If needed, components are replaced to ensure that all aspects of the MCH-1000(i) meet the original manufacturer’s engineering specifications. This guarantees that the device operates just as it did when it initially left the manufacturer.

Once the MCH-1000(i) is functioning like new, it undergoes a specialized cosmetic restoration process. The CardioQuip heater/cooler is thoroughly cleaned, minor scratches and dents are repaired, it is repainted, and new decals are applied if necessary. After this rigorous refurbishment process, the device both functions and looks new. Soma Tech Intl is ISO 13485 certified, ensuring that the highest quality is maintained for all capital medical equipment sold. Before the CardioQuip MCH-1000(i) is labeled as patient-ready and prepared for shipment, it undergoes a final quality control test to confirm that all aspects are functioning as they should.

Soma Tech Intl is actively seeking to purchase a CardioQuip MCH-1000(i) heater/cooler. If you or your facility are looking to sell your MCH-1000(i), be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that will assist you throughout the entire process. Selling your used or pre-owned CardioQuip equipment directly to Soma removes the middleman, ensuring that your medical facility receives the highest value for your equipment. Soma is 100% HIPAA compliant, ensuring that your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message.
