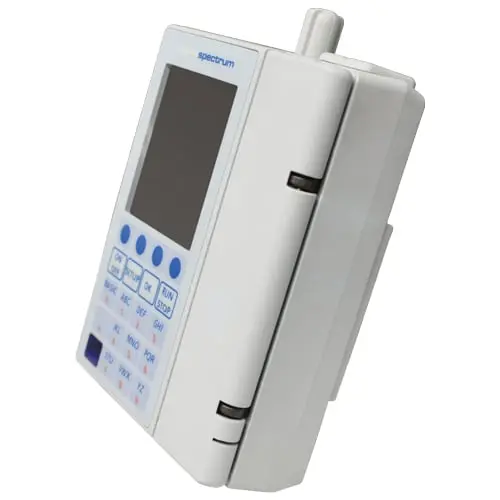

Baxter Sigma Spectrum IV Pump
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Baxter Sigma Spectrum Features
The Baxter Sigma Spectrum IV pump is small, lightweight, and easy-to-use. Soma offers this Baxter IV pump with software version 6.05 or 6.02. The wireless connectivity makes it easy to integrate data into your hospital’s current EMR system. The Sigma Spectrum is compatible with standard gravity IV sets supplied by Hospira and several other companies. On battery power, the infusion pump can last at least 4 hours on a fully charged battery with average usage. Multiple safety features include the Dose Error Reduction Software (DERS) with hard and soft limits, default dose rates, and multiple dosing modes. Another infusion pump by Baxter is the Baxter Spectrum IQ.
- Easy and fast priming of the Standard IV administration sets.
- Bright high-contrast liquid crystal display.
- Small and lightweight profile that enhances patient mobility.
- Bi-directional wireless communication.
- HL7 and XML communications.
Sigma Spectrum Specifications
Dimensions
- Height: 6.3 in (16 cm)
- Width: 4.2 in (10.67 cm)
- Depth: 2.5 in (6.35 cm)
- Weight: 1.66 lb (0.5 kg)
Infusion
- Pump Mechanism: Linear Peristaltic
- Modes: Primary and Secondary, Multi-Step, and Cyclic TPN
Flow Rate
0.5 to 999 mL/hr with 0.1 mL/hr increments
KVO
0.5 – 50 mL/hr
Max Pump Pressure
28 PSI
Occlusion Pressure
Adjustable: High (19 ±9 PSI), Medium (13 ±6 PSI), and Low (6 ±4 PSI)
Accuracy
0.5 – 1.9 mL/hr: ±0.1 mL/hr; 2.0 – 800 mL/hr: ±5%; 801 – 999 mL/hr: ±5%
Display
- Type: Color HRTFT
- Resolution: 240 X 270
Battery (Wireless)
- Type: Lithium Ion
- Voltage: 1800 mA/h, 7.4 VDC nominal.
- Run Time: 4 hrs
- Charge Time: 16 Hours
Refurbished Baxter Sigma Spectrum IV Pump
Soma Tech Intl offers the Baxter Sigma Spectrum infusion pump up to 50% below OEM prices with the same service and warranty as new. The Sigma Spectrum infusion pumps are not only technically refurbished but also cosmetically refurbished to make them work and look like new. When the refurbishing process starts on the Sigma Spectrum, it is carefully inspected and tested by our in-house biomedical engineers, who are highly skilled and certified to work on infusion pumps. If necessary, parts are replaced to ensure that all aspects of the Baxter Sigma Spectrum meet the original manufacturer’s specifications. This ensures that the unit operates as it did when it originally left the manufacturer. After the infusion pump is fully restored, it undergoes a cosmetic restoration process. The unit is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are applied if necessary. After this thorough refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified, guaranteeing the highest quality for all capital medical equipment sold. Before the Baxter Sigma Spectrum is labeled patient-ready and packed for shipment, it undergoes a final quality control test to ensure all components are working as intended. If you are looking to buy a refurbished Baxter Sigma Spectrum infusion pump, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl is actively looking to purchase Baxter Sigma Spectrum infusion pumps. If you or your facility is looking to sell your Sigma Spectrum, be sure to contact Soma Tech Intl. Soma’s experienced purchasing department will guide you through the entire process. Selling your used or pre-owned infusion pump directly to Soma cuts out the middleman, ensuring that your medical facility receives top dollar for your equipment. Soma is 100% HIPAA compliant and guarantees that your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here.
