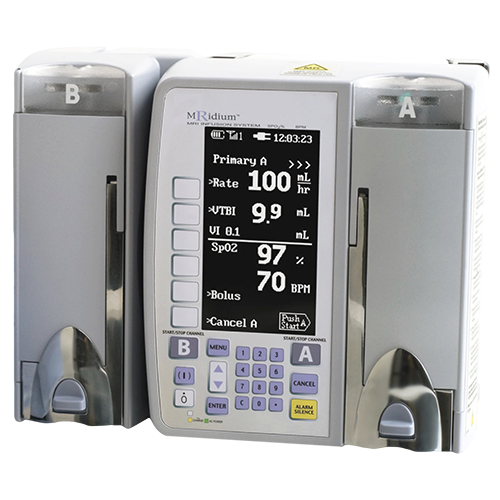

Mridium 3080+ with Sidecar MRI Infusion Pump - Soma Technology, Inc.
Iradimed

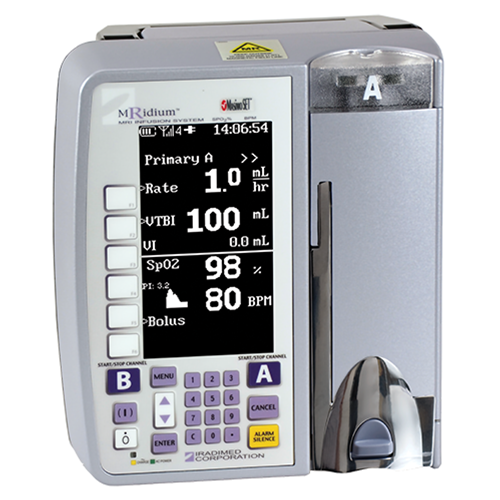

Iradimed Mridium 3860+

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Iradimed Mridium 3860+ Features

The Iradimed Mridium 3860+ is an infusion system designed for the MRI environment. The Mridium 3860+ has additional optional features such as wireless remote control, vented syringe adapter sets, modular additional second channel “sidecar”, and a bypass infusion set. This MRI Infusion pump supports a wide range of rates supporting pediatric needs as well as 1400 ml per hour faster delivery for emergency medication.

  • Intuitive Smart IV Pump Technology and Real Time SpO2 Monitoring.
  • Delivery Range of 0.1 to 1400 ml per hour.
  • Easily expandable to a second channel with an add-on SideCar module.
  • Operates on a Lithium Polymer battery.
  • Allows placement up to the 10,000 Gauss Line.
  • Large highly visible LCD display.

Iradimed Mridium 3860+ Specifications

Dimensions

  • Height: 9 in (22.9 cm)
  • Width: 8 in (20.3 cm)
  • Depth: 6 in (15.25 cm)
  • Weight: 11.5 lbs. (5.2 kg)
  • Pole Clamp Mounting Range (Pole Diameter): 1.0 to 1.5 inch (25 to 38 mm)

Battery

  • Battery Type: Rechargeable Lithium Ion Pack, 14.8 v at 5.8 Ah
  • Battery Capacity: > 12 Hours at =125 mL/hr Rate
  • Battery Charge Time: < 9 hours to 95% capacity
  • Battery Cycle Life: > 300 charge/discharge cycles

MRI Performance

  • MRI Magnet Compatibility: 0.2 to 3.0 Tesla MRI Systems
  • Magnetic Field Limit: 10,000 Gauss line (1T magnetic field line) – Minimal ferrous material used inside Pump (<15 grams); non-magnetic motor used inside Pump
  • Compliance with Standards: IEC 60601-1-1, IEC 60601-1-2, IEC 60601-2-24, ISO 9919, AAMI ID 26, UL2601

Infusion Pump Performance

  • Flow Rate Range: 0.1 to 1400 mL/hr 0.1 to 99.9 mL/hr in 0.1 mL/hr increments, 100 to 1400 mL/hr in 1 mL increments
  • Flow Rate Display Range: 0.1 to 99.9, 100 to 1400 mL/hr
  • Flow Rate Accuracy: +/-10% (0.1 to 0.9 mL/Hr), +/-5% (1 to 1400 mL/Hr)
  • Volume To Be Infused (VTBI) Range: 0.1 to 999 mL
  • Total Volume Infused (VI) Range: 0.1 to 9,999 mL in 0.1 mL increments
  • Keep Vein Open (KVO) Rate Range: Adjustable, 1 to 5 mL/hr, or Set Rate, whichever is less
  • Downstream (proximal) Occlusion: 1 to 10 psi, user-adjustable, +/- 10% Detection Range
  • Occlusion Detection (no flow) Time: Typically < 30 seconds, dependent on selected Flow Rate
  • Inlet Pressure Detector: Detects inlet side occlusions
  • Air-in-Line Detection Method: Ultrasonic bubble detector, > 100 µL

Pulse Oximeter Performance

  • Sensor Type: Fiberoptic MRI SpO2 sensor with no RF conductive components
  • Sensor Length: 90 inches (2.3 m)
  • Accuracy: 70 – 99 % SpO2 +/- 3 digits Adult/Pediatric/Infant,; Heart Rate +/- 3 BPM (no motion)
  • Display Ranges Pulse Oximeter: 70 – 99 % SpO2, Heart Rate: 40-240 BPM
