Drager Evita V800 Ventilator
Drager

Drager Evita V800

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

Drager Evita V800 Ventilator Features

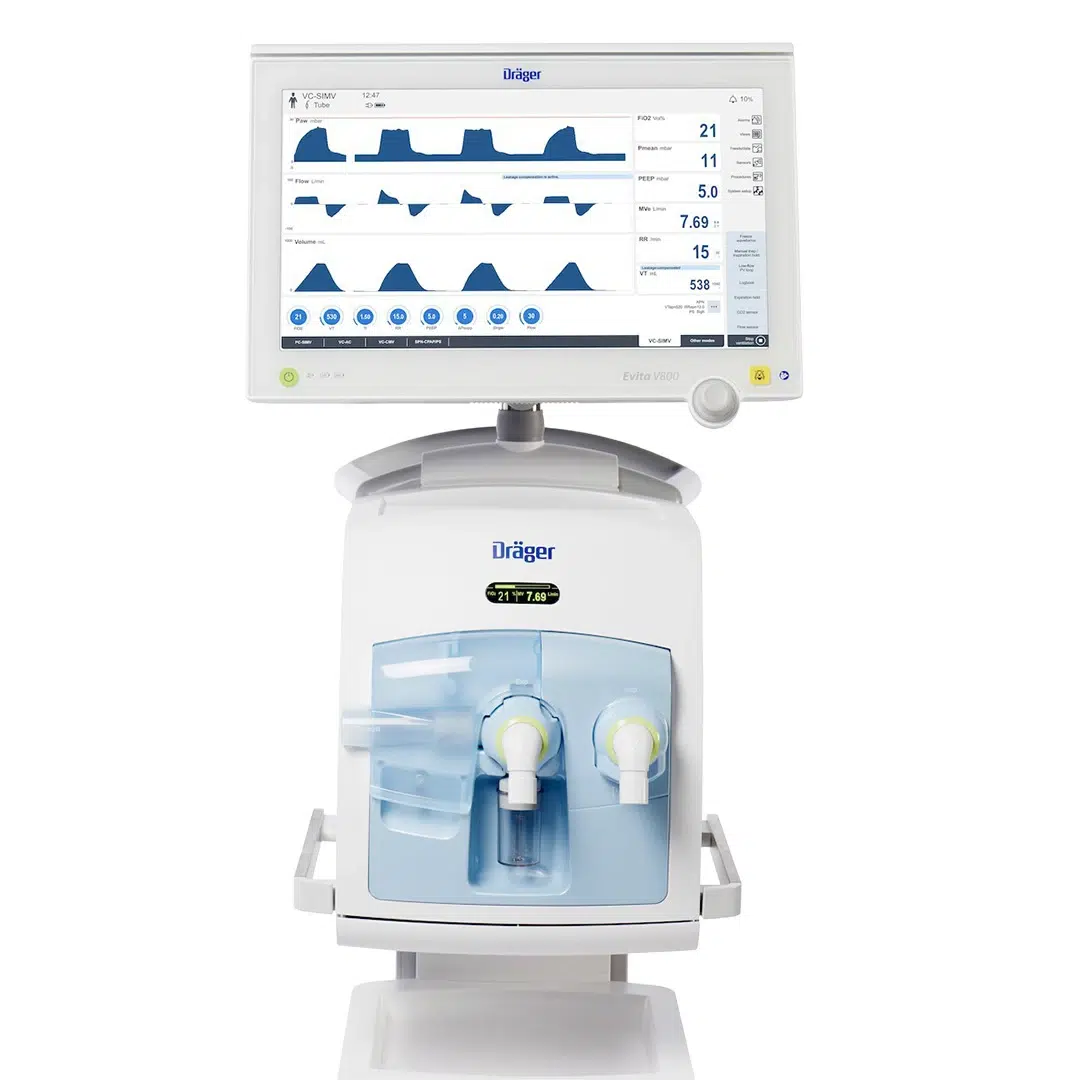

The Drager Evita V800 Ventilator is an advanced intensive care ventilation system designed to support adult, pediatric, and neonatal patients across a wide range of clinical conditions. Built to provide both invasive and non-invasive ventilation, the system combines high-performance respiratory support with an intuitive touchscreen interface for efficient operation in critical care environments. The Evita V800 supports multiple ventilation therapies, including high flow oxygen therapy and spontaneous breathing support, allowing clinicians to adapt treatment as patient needs change. Its integrated monitoring tools and advanced diagnostic features help caregivers assess lung performance, manage ventilation strategies, and support effective weaning protocols. Designed for ICU workflow and patient transport flexibility, the Evita V800 offers a modern ventilation platform suited for hospitals, intensive care units, and emergency transport applications.

  • Multi-Mode Ventilation Support: Provides invasive ventilation, non-invasive ventilation, and high flow oxygen therapy for adult, pediatric, and neonatal patients.
  • Advanced Touchscreen Interface: Glass touch display and intuitive controls allow clinicians to quickly access settings, trends, and patient data.
  • High Flow Therapy Capability: Supports high flow nasal cannula therapy with flow rates up to 80 L/min and integrated pressure management.
  • Comprehensive Monitoring Tools: Includes ventilation monitoring, lung assessment features, and diagnostic support to assist with patient management and weaning.

Drager Evita V800 Specifications

Patient Types

  • Adult
  • Pediatric
  • Neonatal

Dimensions & Weight

  • Height: 55.6 in (141.3 cm)
  • Width: 22.8 in (58.1 cm)
  • Depth: 30.5 in (77.6 cm)
  • Maximum Weight: 293 lb (133 kg)

Monitor / Display

  • Screen Size: 18.3 in
  • Resolution: 1366 × 768 pixels
  • Aspect Ratio: 16:9
  • Touchscreen Technology: Capacitive touchscreen with glass front
  • Input / Output Ports:
    • 3 external RS232 connectors
    • 4 USB ports
    • 1 LAN port

Ventilation Modes

  • Volume Controlled Ventilation
    • VC-CMV
    • VC-SIMV
    • VC-AC
    • VC-MMV
  • Pressure Controlled Ventilation
    • PC-CMV
    • PC-BIPAP/SIMV+
    • PC-SIMV
    • PC-AC
    • PC-APRV
    • PC-PSV
  • Spontaneous Breathing Support
    • SPN-CPAP/PS
    • SPN-CPAP/VS
    • SPN-CPAP
    • SPN-PPS

Ventilation Enhancements

  • AutoFlow® / Volume Guarantee
  • Variable Pressure Support
  • Automatic Tube Compensation (ATC®)
  • SmartCare® / PS 2.0
  • Low Flow PV Loop
  • Smart Pulmonary View

Therapy Types

  • Invasive ventilation (tube/tracheostomy)
  • Non-invasive ventilation (NIV)
  • O2 therapy

Ventilation Performance

  • Control Principle: Time-cycled, volume-constant, pressure-controlled
  • Respiratory Rate:
    • Adults: 0.5 to 98 breaths/min
    • Pediatrics: 0.5 to 150 breaths/min
    • Neonates: 0.5 to 150 breaths/min
  • Tidal Volume:
    • Adults: 0.1 to 3.0 L
    • Pediatrics: 0.02 to 0.3 L
    • Neonates: 0.002 to 0.1 L
  • Inspiratory Flow:
    • Adults: 2 to 120 L/min
    • Pediatrics: 2 to 30 L/min
  • Maximum Inspiratory Flow: 180 L/min
  • PEEP Range: 0 to 50 cmH2O
  • Pressure Support: 0 to 95 cmH2O
  • FiO2 Range: 21% to 100%
  • Trigger Threshold: 0.2 to 5 L/min
  • Base Flow:
    • Adults: 2 L/min
    • Pediatrics: 3 L/min
    • Neonates: 6 L/min

Monitoring & Measurements

  • Airway Pressure Monitoring
  • Tidal Volume Monitoring
  • Minute Volume Monitoring
  • Respiratory Rate Monitoring
  • Dynamic Compliance Monitoring
  • Resistance Monitoring
  • Leakage Monitoring
  • FiO2 Monitoring
  • End-Tidal CO2 Monitoring (Adults and Pediatrics)

Waveform Displays

  • Airway Pressure
  • Flow
  • Volume
  • CO2

Alarm Monitoring

  • High / Low Minute Volume
  • High Airway Pressure
  • High / Low FiO2
  • High / Low End-Tidal CO2
  • High Respiratory Rate
  • High / Low Tidal Volume
  • Apnea Alarm
  • Disconnection Alarm

Battery

  • Internal Battery:
    • Type: Sealed NiMH battery
    • Exchange Interval: 2 years
    • Runtime: 30 minutes without GS500, 15 minutes with GS500
  • PS500 Power Supply Battery:
    • Type: LFP battery
    • Exchange Interval: 4 years
    • Runtime: 240 minutes without GS500, 120 minutes with GS500

Electrical Requirements

  • Power Input: 100 to 240 V, 50/60 Hz
  • Maximum Power Consumption: 300 W

Gas Supply Requirements

  • O2 Supply Pressure: 39 to 87 psi (270 to 600 kPa)
  • Air Supply Pressure: 39 to 87 psi (270 to 600 kPa)

Refurbished Drager Evita V800

Soma Tech Intl offers the Drager Evita V800 ventilator up to 50% below OEM prices, providing the same service and warranty as a new. This ventilator undergoes both technical and cosmetic refurbishment to ensure dependable performance and a clean, professional appearance. During the refurbishment of the Drager Evita V800, our in-house biomedical engineers, who are highly trained and certified to work on ventilators, carefully inspect and test the system. If required, components are replaced to ensure the Evita V800 ventilator meets the original manufacturer’s engineering specifications.

Once the Drager Evita V800 ventilator is fully operational, it proceeds through a detailed cosmetic restoration process. The system is thoroughly cleaned, signs of cosmetic wear are addressed, exterior surfaces are refinished when necessary, and decals or control panel overlays are replaced if needed. After completing this refurbishment process, the Evita V800 both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Drager Evita V800 is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.

Soma Tech Intl is actively seeking to purchase Drager Evita V800 ventilators. If your facility is interested in selling an Evita V800 or other Drager ventilator systems, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Drager equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a Drager Evita V800 ventilator or other used medical equipment you would like to sell, send us a message.
