Hamilton C-3
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Hamilton C-3 Features

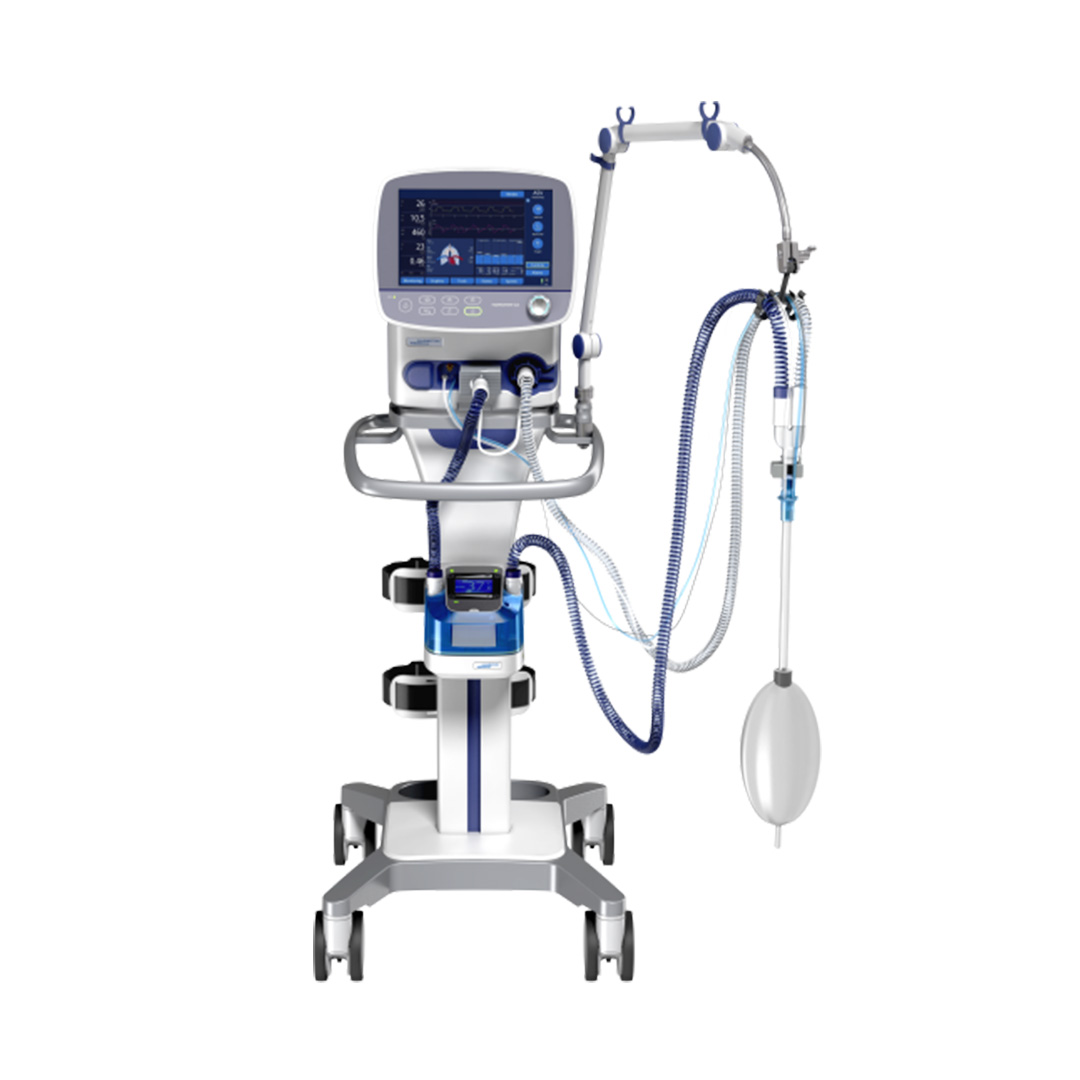

The Hamilton C-3 is a versatile and compact ventilator designed to deliver exceptional respiratory care across a wide range of patient needs. Combining advanced technology with ease of use, it provides precise ventilation in critical care settings. Its lightweight design and mobility make it an excellent choice for healthcare facilities requiring both flexibility and performance. The Hamilton C-3 ensures patient safety with its intelligent algorithms and adaptability to various clinical scenarios.
- Adaptive Ventilation Mode: Automatically adjusts ventilation parameters based on patient needs, reducing clinician workload.
- Compact Design: Lightweight and portable, enabling use across multiple hospital settings.
- Integrated Humidification: Ensures optimal patient comfort by maintaining proper airway conditions.

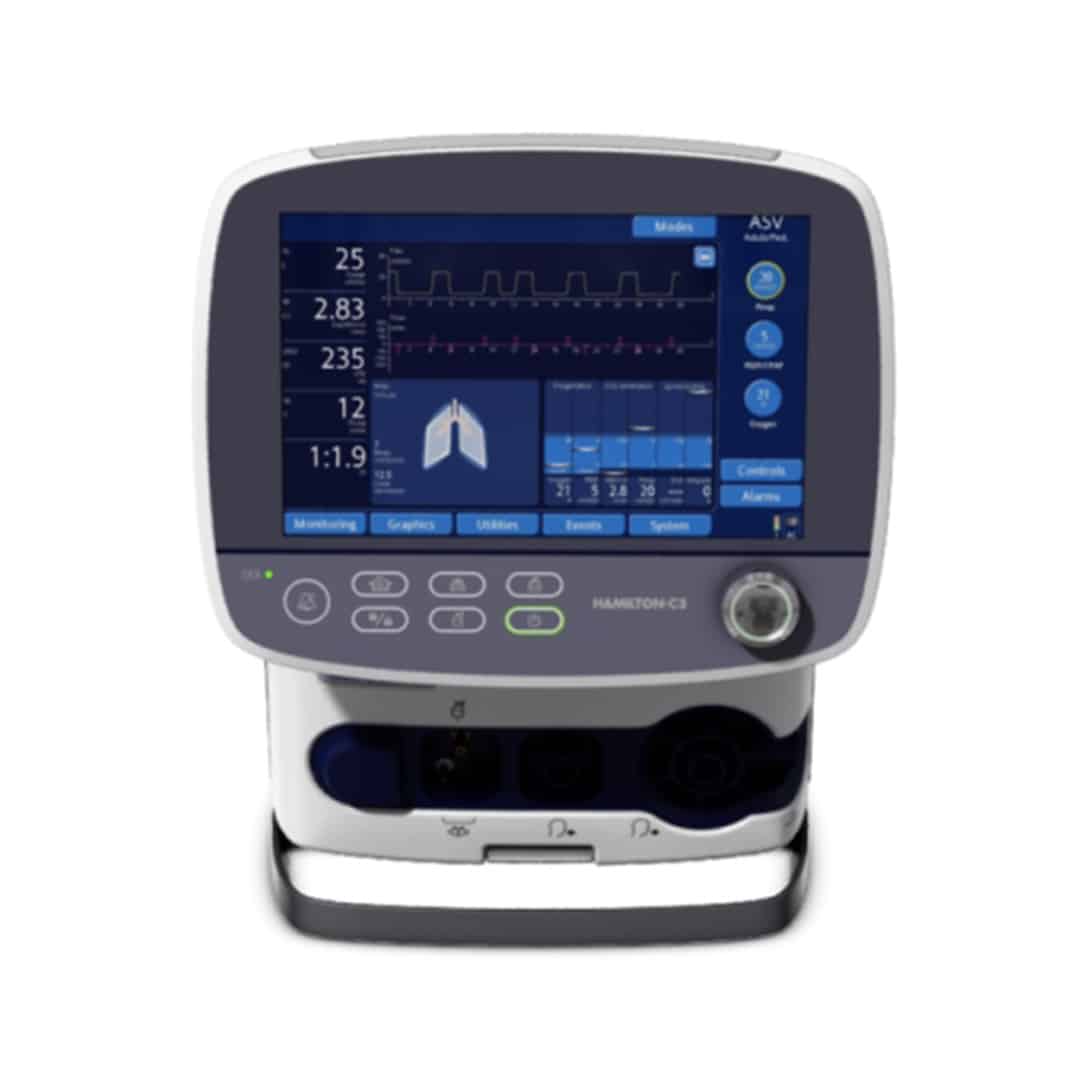

- High-Resolution Display: Offers clear visualization of vital parameters and waveforms.
- Battery Backup: Provides uninterrupted operation during power outages or patient transport.
- Advanced Alarm System: Notifies caregivers of critical changes in patient status.
- Customizable Profiles: Enables quick setup for different patient types and clinical requirements.
Hamilton C-3 Specifications
Dimensions
- Height: 18.1 in (46 cm)
- Height(with Rolling Stand): 56.3 in (146 cm)
- Width: 21.2 in (31 cm)
- Width(with Rolling Stand): 28 in (66 cm)
- Depth: 10 in (25 cm)
- Depth(with Rolling Stand): 18 in (46 cm)
- Weight: 21 lbs (9.5 kg)
- Weight(with Rolling Stand): 124.5 lbs (56.5 kg)
Power AC
- Input Voltage: 100–240 V AC
- Frequency: 50–60 Hz
Battery
- Type: Lithium-ion
- Runtime: Approximately 2.4 hours with one battery; up to 5 hours with two batteries
- Recharge Time: 2.25 hours for one battery, 4.5 hours for two batteries
Environmental Conditions
- Operating Temperature: 50–104°F (10–40°C)
- Storage Temperature: -4–140°F (-20–60°C)
- Operating Humidity: 15–95% RH, non-condensing
Pneumatic Specifications
- High-pressure Oxygen Inlet: 2.8 to 6 bar / 41 to 87 psi
- Air Supply: Integrated blower
- Delivered Flow: Up to 150 L/min with 100% O2
Refurbished Hamilton C-3 Ventilators
Soma Tech Intl offers the Hamilton C-3 ventilator up to 50% below OEM prices with the same service and warranty as new. The Hamilton C-3 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Hamilton C-3, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ventilators. If necessary, parts are replaced to ensure that all aspects of the ventilator meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the ventilator is functioning like new, it undergoes a specialized cosmetic restoration. The Hamilton C-3 is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Hamilton C-3 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished ventilator, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase ventilators. If you or your facility are looking to sell your Hamilton C-3, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
