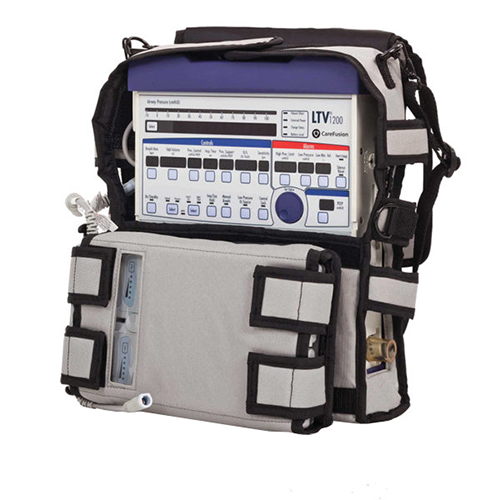

Vyaire LTV 1200 Ventilator

The Vyaire LTV 1200 is a portable ventilator. LTV Ventilator
can be used in-home, intra-hospital transport, or in emergency infield use. Vyaire System comes with preset buttons for infants, pediatrics, and adult patients and can be customized per each patient’s needs. It offers both invasive and non-invasive modes of ventilation in Pressure Control, Pressure Support, Volume Control, and Spontaneous Breath Types. With the Vyaire Turbine technology, the LTV 1200 eliminates the need for a high-pressure air source.

  • Quick Patient Ventilation – Choose infant, pediatric, or adult to quickly configure initial ventilation.
  • More versatile than transport ventilators and significantly smaller than ICU systems.
  • The O2 Conserve feature reduces O2 consumption when the time and place of care require it.
  • The internal battery allows transfer from one power sources to the next without interruption.

Vyaire LTV 1200 Ventilator


  • Height: 3.25 In (8.4 cm)
  • Width: 10.5 In (27 cm)
  • Depth: 13.5 In (38 cm)
  • Weight: 14.5 lbs (6.5 kg)


  • Ventilator input 11–15 VDC
  • AC adapter input 100–250 VAC
  • 50–60 Hz


  • High pressure O2 source 40–80 PSIG (2.8–5.5 bar)
  • Low pressure O2 source < 80 LPM, < 10 PSIG


  • Ventilation Modes: Control, Assist/Control, SIMV/CPAP and NPPV
  • Breath Types: VC, PC, PS and spontaneous
  • Breath Rate: 0–80 BPM
  • Tidal Volume: 50–2,000 mL
  • Inspiratory Time: 0.3–9.9 sec
  • PC/PS/Spontaneous Flow: 160 LPM
  • Pressure Control: 1–99 cmH2O
  • Pressure Support: 1–60 cmH2O
  • Sensitivity: Off, 1–9 LPM
  • O2%: 21–100%
  • O2 flush: 1–3 min
  • Low pressure O2: On/Off
  • PEEP/CPAP: 0–20 cmH2O
  • Insp/Exp hold: 6 seconds maximum
  • Manual breath: 1x current settings

Monitors and Controls

  • Peak Inspiratory Pressure: 0–120 cmH2O
  • Mean Airway Pressure: 0–99 cmH2O
  • PEEP: 0–99 cmH2O
  • Breath Rate: 0–250 BPM
  • Airway Pressure Display: -10–108 cmH2O
  • Exhaled Tidal Volume: 0–4,000 mL
  • Exhaled Minute Volume: 0–99.9 L
  • I:E Ratio: 99:1–1:99
  • Calculated Peak Flow: 10–100 LPM
  • AutoPEEP: 0–100 cmH2O
  • Static Compliance: 1–999 mL/cmH2O
  • Patient Effort: Green LED

Extended Features

  • SBT
  • Ventilator presets (infant, pediatric and adult)
  • Variable rise time
  • Variable flow termination
  • Variable time termination
  • Pressure control flow termination
  • Leak compensation
  • O2 conserve
  • O2 cylinder duration calculation
  • O2 flush
  • Apnea interval

Fixed Alarms

  • Disconnect/Sense
  • External power low and lost
  • High and low O2 inlet pressure
  • Internal battery low and empty
  • Ventilator inoperative

Refurbished Vyaire LTV 1200 Ventilator

Soma Tech Intl offers Vyaire LTV 1200 Ventilators up to 50% below OEM prices with the same service and warranty as new. The Vyaire LTV 1200 Ventilator is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Vyaire LTV 1200 Ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on ventilators. If necessary, parts are replaced to make sure that all aspects of the ventilator are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Vyaire LTV 1200 Ventilator is working like new it undergoes a special cosmetic restoration process. The Vyaire LTV 1200 Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Vyaire LTV 1200 Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Vyaire LTV 1200 Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase Vyaire LTV 1200 Ventilators. If you or your facility is looking to sell your Vyaire LTV 1200 Ventilator, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Vyaire LTV 1200 Ventilator to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
