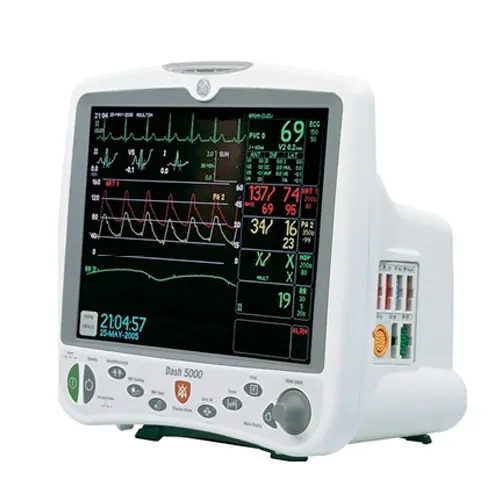

GE Dash 5000 Features

• Designed for optimized monitoring in all care applications
• Advanced algorithms for all monitored parameters
• Fully flexible alarm settings allow personalized monitoring
• ECG acquisition through cables or wireless
• Bright alarm light at the bedside helps to immediately locate the patient in critical situations
• Multiple mounting solutions and a wide range of accessories ensure easy and flexible workplace configuration
• 3 waveform screen view to maximize the size of parameter values and waveforms
• Convenient care area specific Remote iTouch Pad enables operation on both sides of the patient’s bed and direct access to frequently used functions
• Remote Screen through DashPort2 for optimal central overview
• CO2 module and extention Rack for additional parameters
• Wide array of interfacing options with iConnect solutions
• Both mainstream and low-flow sidestream CO2 measurement options for applications from neonatal to adult patients

GE Dash 5000 Specifications

Display

• Size Dash 3000 – 8.4 in., Dash 4000 – 10.4 in., Dash 5000 – 12.1 in.
• Type Active-matrix color LCD
• Resolution Dash 3000 and 4000: 640 by 480 dpi, Dash 5000: 800 by 600 dpi • Number of traces 7 (maximum)
• Number of seconds/trace 4.9 at 25 mm/sec
• Sweep speed 6.25, 12.5, 25 mm/sec (with erase bar)

Controls

• TrimKnob® control
• Five hard keys Standard Silence Alarm, Print, NBP Go/Stop, Zero All and Power On/Off. Dash 5000 adds
• Trends, NBP Auto, Admit/Discharge, Standby and Main View
• Remote control option Available

Alarms

• Categories Patient status and system status
• Priority 4 levels – Crisis, Warning, Advisory and Message
• Notification Audible and visual
• Setting Default and individual
• Silencing 1 minute, current alarm only
• Pause 5 minutes in Adult ICU mode, 3 minutes in Neonatal ICU mode and 5 minute,
• 15 minute, or permanent pause in OR mode
• Volume Default 70 dB measured at 1 meter

Invasive blood pressure

• Number of channels 1 to 4 (optional)
• Transducer sites Arterial, femoral artery, pulmonary arterial, central venous, right atrial, left atrial, intracranial and special
• Transducer requirements Excitation voltage: 5 V dc ± 0.1%
• Transducer output 5 μV/V/mmHg

Input specifications

• Range -25 mmHg to 300 mmHg
• Offset ± 150 mmHg

Output specifications

• Frequency response dc to 50 Hz (-3 dB)
• Zero balance range ± 150 mmHg
• Zero balance accuracy ± 1 mmHg
• Zero balance drift ± 1 mmHg over 24 hours
• Accuracy ± 2% or ± 1 mmHg, whichever is greater
• (exclusive of transducer)
• Alarms User-selectable upper and lower limits for systolic, diastolic and mean pressures

Pacemaker detection / rejection

• Input voltage range ± 2 mV to ± 700 mV
• Input pulse width 0.1 ms to 2 ms
• Rise time 10 μs to 100 μs
• Over/under shoot 2 mV (max)
• Baseline drift < 0.5 mV per hour with a ± 700 mV, 2 ms
• Pacemaker pulse Applied

Respiration

• Measurement technique Impedance variation detection
• Range 0-200 breaths per minute for variations of 1.0 – 10.0 Ω
• Respiration rate 0-200 breaths per minute
• Base impedance 100-1000 Ω at 52.6 kHz
• Detection sensitivity 0.4 to 10 Ω variation
• Waveform display bandwidth 0.1 to 1.8 Hz (-3 dB)
• Alarms User-selectable upper and lower respiration rate limits, and user-selectable apnea limit
