idi Aspect 100U

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

idi Aspect 100U Features

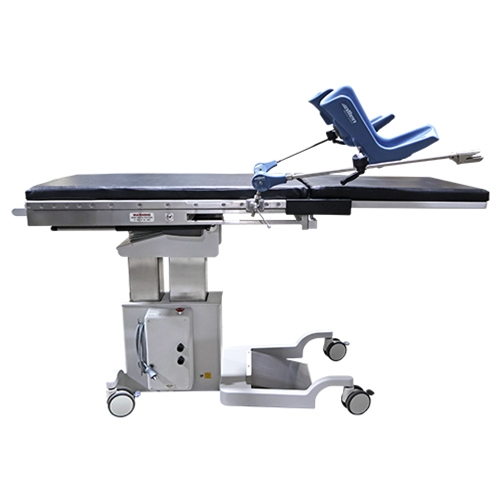

The idi Aspect 100U is a multi-purpose mobile urology table with motorized elevation, trendelenburg, tilt, and longitudinal motions. The idi Aspect 100U Aspect 100U provides a large radiolucent imaging area for easy C-arm access and greater anatomical coverage. Urological accessories can easily be removed, and a lightweight radiolucent tabletop extension can be equipped to convert the table to multi-purpose imaging or general patient positioning.

  • Low X-ray attenuation radiolucent tabletop
  • 2-inch thick memory foam pad
  • Footswitch and hand pendant controls
  • Standard US side rails for different accessories and extensions

idi Aspect 100U Specifications


  • Height: 31.3 – 41.1” (79.4 – 104.4 cm)
  • Width: 28” (71 cm)
  • Length: 46” (117 cm)
  • Weight: 686 lb (311.25 kg) (With extension)

Tabletop Extension

  • Type: Radiolucent
  • Width: 24” (61 cm)
  • Length: 34” (86 cm)


  • Controls: Footswitch and hand controls
  • Height: 31.3 – 41.1 in (79.4 – 104.4 cm)
  • Trendelenburg Tilt: ±15°
  • Longitudinal Tabletop Travel: 10” (25.4 cm)

Imaging Area

  • Main Tabletop: 25”W x 20”L (63.5 x 50.8 cm)
  • Tabletop Extension: 24”W x 34”L (61 x 86 cm)
  • Total Imaging Area With Extension: 54” (137 cm)

Patient Weight Capacity

  • With Patient Upper Body on Main Tabletop: 525 lbs (238 kg)
  • With Patient Upper Body on Extension: 400 lb (181 kg)
  • Load Capacity on Extension Only: 200 lb (90.7 kg)


  • 100 VAC
  • 60 Hz Operation (230 VAC optional)
  • ≤10 amp @110V

Refurbished idi Aspect 100U Imaging Table

Soma Tech Intl offers the idi Aspect 100U up to 50% below OEM prices with the same service and warranty as new. Soma Tech technically and cosmetically refurbishes these imaging tables back to the original engineering manufacturer’s specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Aspect 100U urology tables are in working order, the table is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Tech not only refurbished the product, but each unit also goes through a special cosmetic restoration process. The idi 100U table is cleaned and minor scratches and dentures are repaired, and decals are replaced if necessary.

Soma Tech Intl also purchases used and pre-owned surgical and imaging tables. If you or your facility wants to sell your idi imaging tables, Soma has an experienced purchasing department that makes the process headache and hassle-free. When selling your table to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma not only buys surgical and imaging tables but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Pain Management Tables?

Soma Tech Intl offers a wide range of pain management tables. If you have any questions about any of our pain and imaging tables or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your pain and imaging tables? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
