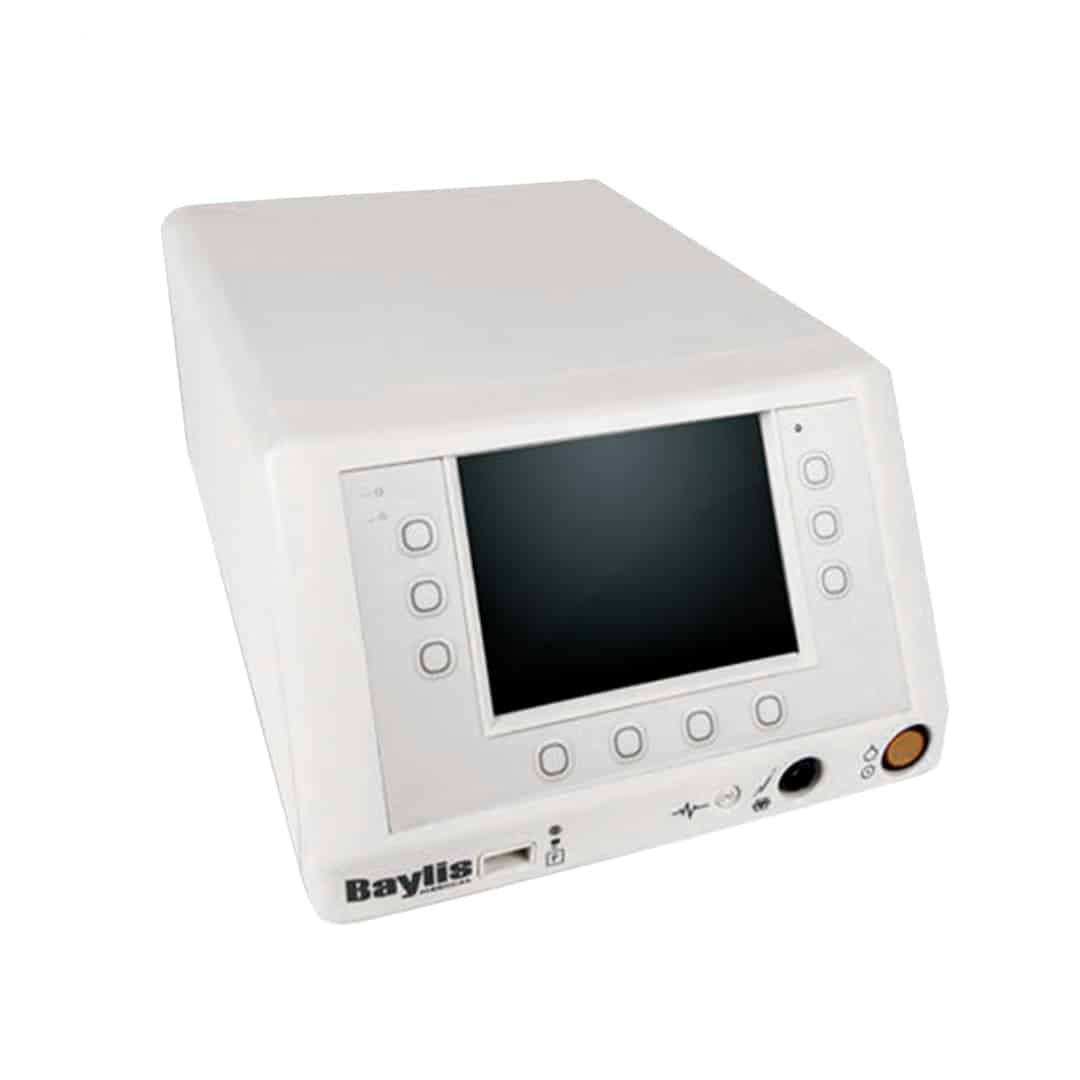

Baylis RFP-100A
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Baylis RFP-100A Features
The Baylis RFP-100A is a radiofrequency puncture generator used for tissue access during procedures such as cardiac transseptal puncture. It delivers a short RF output at high voltage and low power to create a small opening in tissue. The system operates at higher impedance levels than standard RF ablation generators. Heat spread is limited due to the short energy duration.
The RFP-100A is compatible with Baylis RF transseptal devices, including the NRG Needle, SupraCross, and VersaCross systems. Connected devices are recognized automatically. Output settings can be adjusted before activation.
- High-Impedance Operation: Functions at tissue impedance levels of approximately 270–400V, allowing RF puncture without continuous energy delivery.
- Device Compatibility: Supports Baylis RF transseptal access tools such as NRG, SupraCross, and VersaCross.
- Energy Delivery Options: Includes Constant Mode for continuous RF output and Pulse Mode that delivers RF energy in 300 ms intervals.
- Control Display: LCD screen displays system status and messages. Settings are adjusted using front-panel soft keys while the generator is in standby.
- Procedure Data Storage: USB port allows export of stored data from up to 20 procedures.
- Safety Indicators: Includes a return electrode monitoring indicator and requires IEC 60601-2-2 compliant dispersive electrodes.
- Physical Design: Compact housing intended for use in cardiac catheterization labs.
Baylis RFP-100A Specifications
Dimensions
- Height: 7 in (17.8 cm)
- Width: 11.25 in (28.5 cm)
- Depth: 15.6 in (39.6 cm)
- Weight: 20 lb (9.1 kg)
Power
- Input Voltage: 100-240 VAC, 50-60 Hz.
- Current Rating: 5.0 A.
- Power Cord Length: 10 ft (3 meters).
- WARNING: Must be connected to a properly grounded receptacle. Do not use extension cords or adapter plugs.
RF Energy Output
- Frequency: 468 kHz, Sinusoidal.
- Maximum Output Power: 50 W.
- Output Modes: Constant Mode (continuous) and Pulse Mode (300 ms pulses per second).
- Duration Settings: 300 ms or 1000 ms ± 5 ms (device-dependent). Count-up timer settable from 1-10 s.
General
- Display: Large LCD message window.
- Data Port: USB port for downloading treatment data (up to 20 procedures).
- Safety Standards: Designed for use with dispersive electrodes meeting or exceeding IEC 60601-2-2.
- Intended Use: For use with separately approved Baylis Medical Company RF devices (e.g., transseptal needles/solutions) in general surgical procedures to cut soft tissues.
Refurbished Baylis RFP-100A Radio Frequency Generator
Soma Tech Intl offers the Baylis RFP-100A Radio Frequency Generator up to 50% below OEM prices with the same service and warranty as new. The refurbished The Baylis RFP-100A is not only technically refurbished but also cosmetically refurbished to make it work and look like new.
When the refurbishing process starts on the RFP-100A, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on radio frequency generators. If necessary, parts are replaced to ensure that all aspects of the RFP-100A meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the Baylis generator is functioning like new, it undergoes a specialized cosmetic restoration. The unit is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Baylis RFP-100A is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished radio frequency generator, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase radio frequency generators. If you or your facility are looking to sell your Baylis RFP-100A, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
